CE Compliant

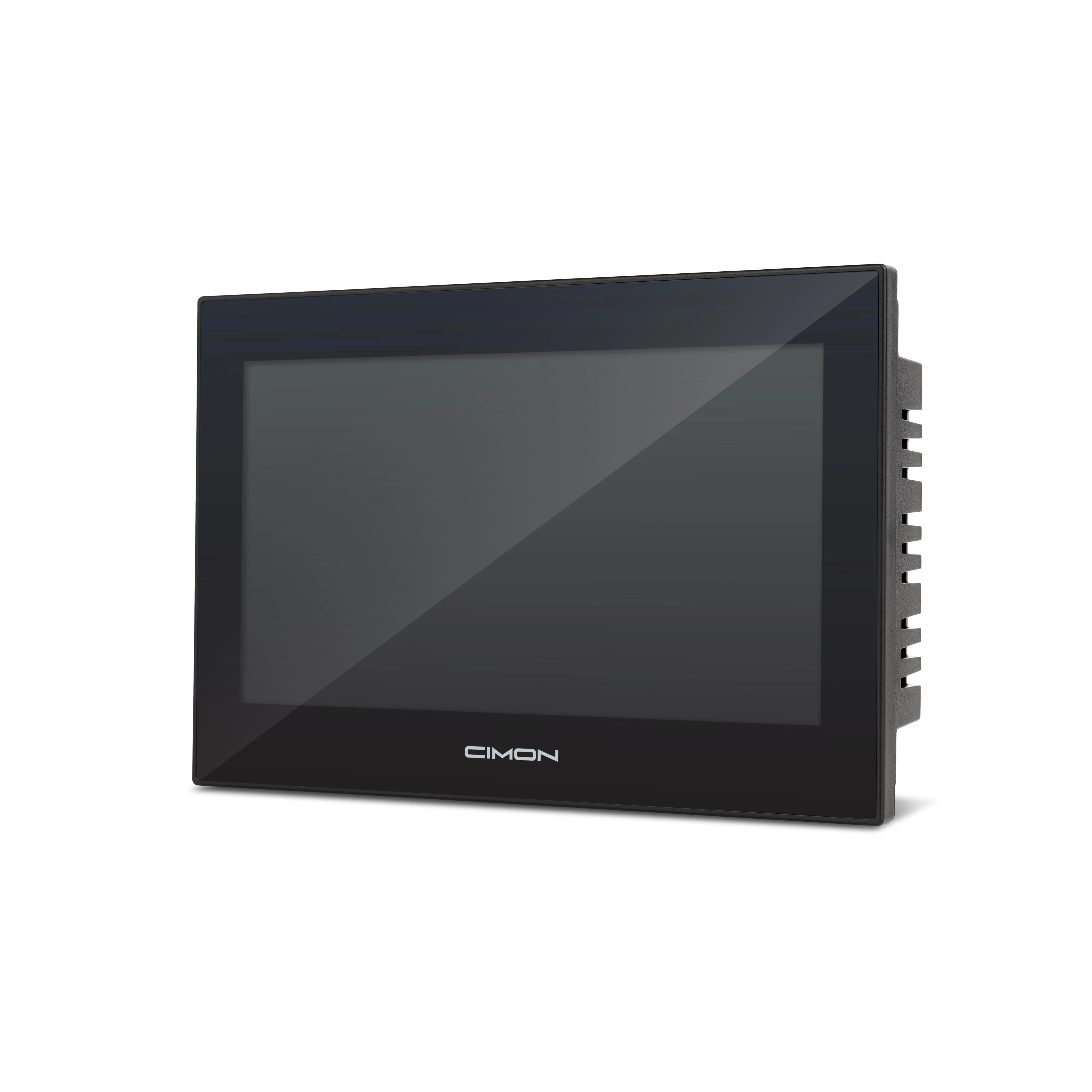

7 inch eXT2 Xpanel Advanced HMI
7" Wide TFT Color Display
IP68 Protection Class
Dual Ethernet Connectivity
Price
Price Available on Request
Fast Shipping Available
Technical Support
Certifications: UL, CE, FCC, KC, IP68
Trusted by Hundreds of Companies Globally
Detailed Technical Specifications
Comprehensive specifications for the eXT2 Xpanel 7-inch HMI unit including display, memory, power, environmental, and physical parameters.
Parameter
Specification
Display Size
7 inch
Display Type
Wide TFT Color
Resolution
1024 x 600 WSVGA (128:75)
RAM Memory
2 GB LPDDR4
Storage
8 GB eMMC
Power Consumption
12W
Operating Temperature
-20 to +70°C
Protection Class
IP68
Dimensions
185 x 127 x 51.9 mm
Weight
510g
Advanced Display Technology
Engineered for demanding industrial environments with superior performance and reliability features.
High-Resolution Display
Experience crystal-clear visuals with 1024 x 600 WSVGA resolution and 16.7M colors, delivering exceptional detail for critical industrial monitoring applications.
Industrial Protection
Built to withstand harsh industrial conditions with IP68 front protection and NEMA Type 4X compliance for reliable operation in challenging environments.
Dual Ethernet Connectivity
Seamless integration with existing networks through dual 10/100/1000 Ethernet ports plus RS-422/485 and RS-232C serial communication options.
Enhanced Performance
Powered by 2 GB LPDDR4 RAM and 8 GB eMMC storage with expandable MicroSD slot for handling complex HMI applications with responsive performance.
Precise Touch Control
Accurate 4-wire resistive touch interface with ±2% accuracy supports both landscape and portrait orientations for versatile installation options.
Long-Life LED Backlight
Exceptional visibility with 1,000 cd/m² luminance and LED backlight rated for 50,000 hours of continuous operation, minimizing maintenance requirements.
Frequently Asked Questions
What connectivity options are available on this HMI unit?

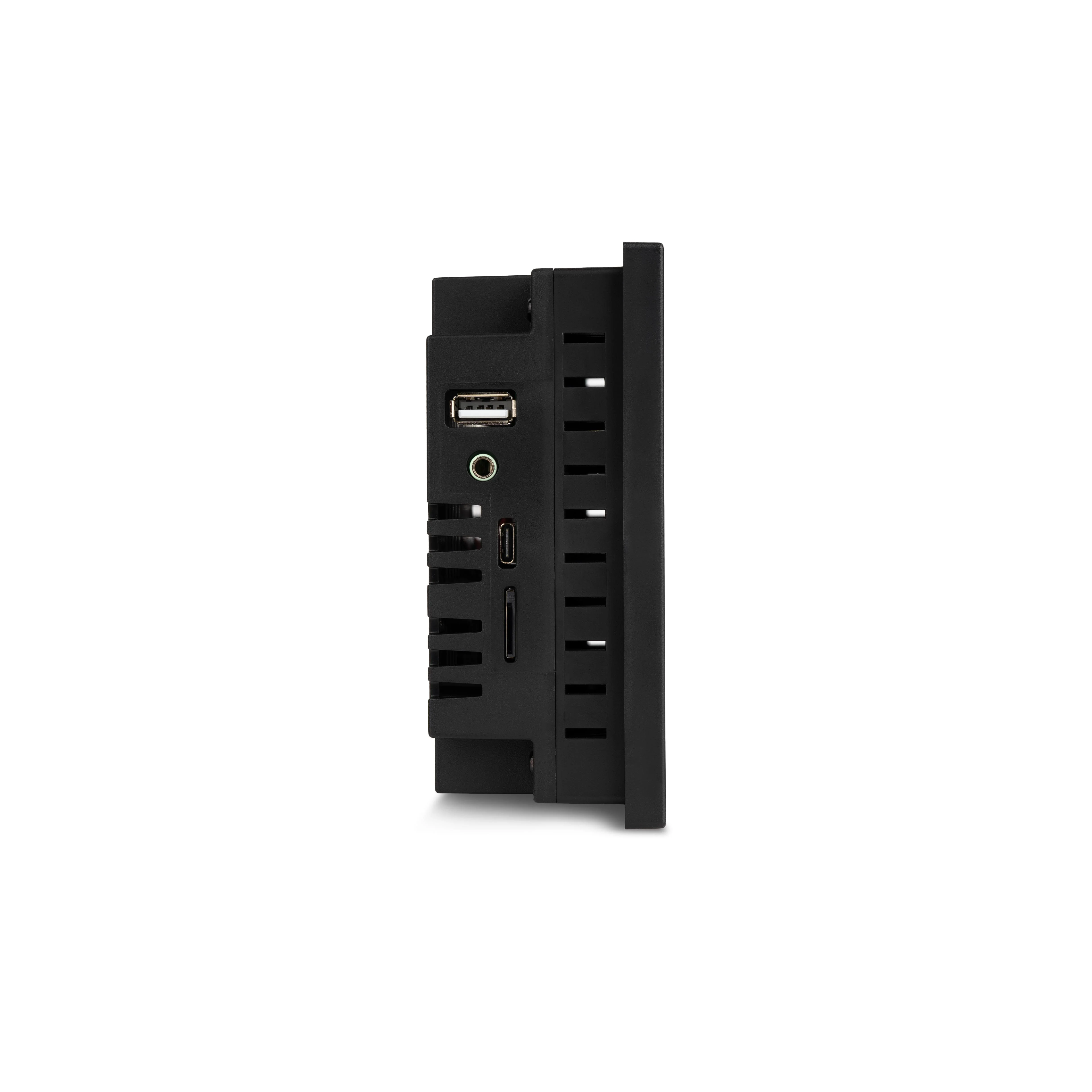

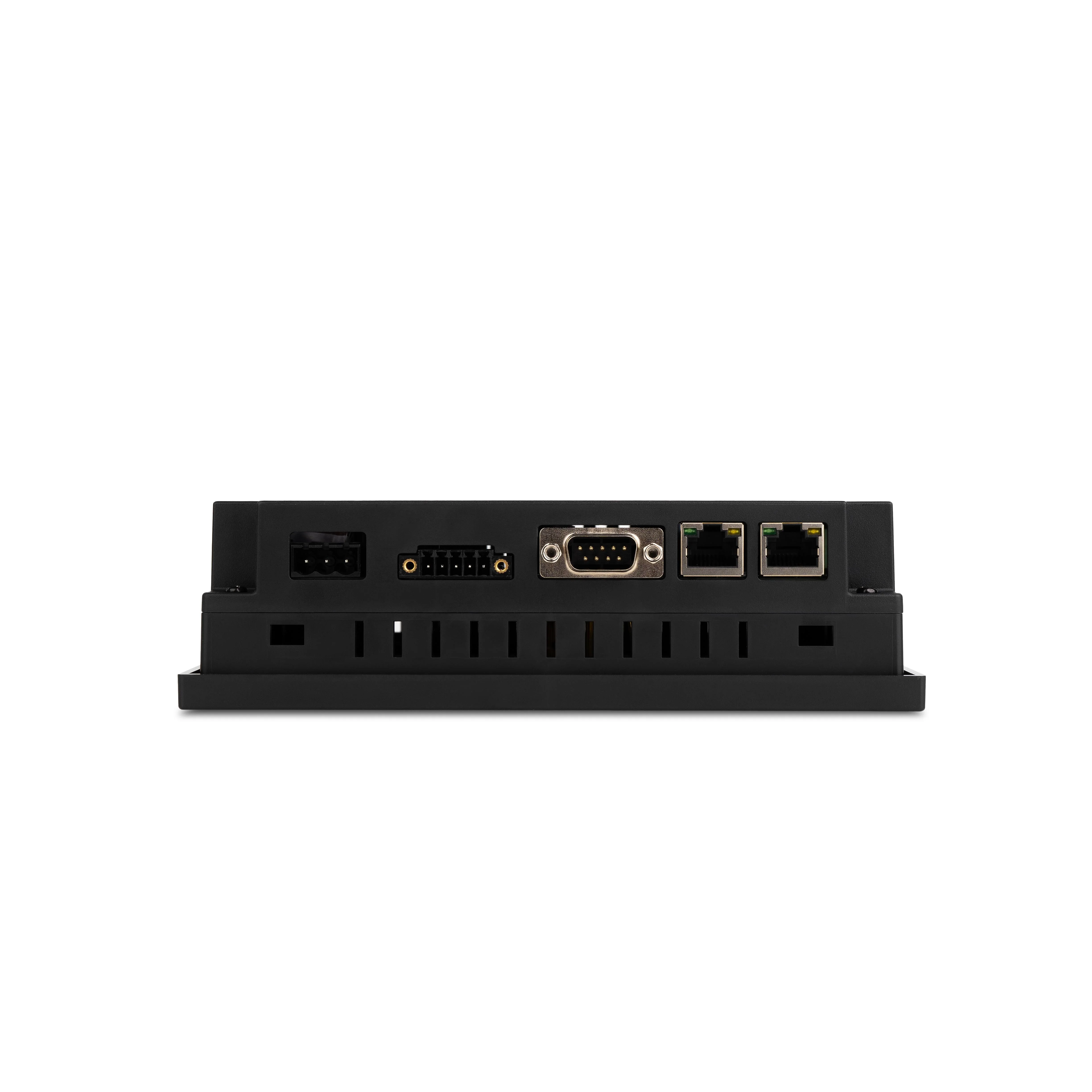

The unit provides dual Ethernet ports (10/100/1000), RS-422/485 and RS-232C serial ports, USB Type A and USB-C tool port, plus a MicroSD card slot for flexible integration with industrial systems.
What environmental conditions can this HMI withstand?
The HMI operates reliably in temperatures from -20 to +70°C with IP68 front protection and NEMA Type 4X compliance, making it suitable for harsh industrial environments with humidity tolerance of 10-90% RH.
What memory and storage options are included?
The HMI includes 2 GB LPDDR4 RAM and 8 GB eMMC storage, with 250 MB dedicated project memory and 4 GB user memory. Additional storage can be added via the MicroSD card slot.
What certifications does this HMI possess?
The unit carries multiple certifications including UL61010-1/UL61010-2-201, CE Electromagnetic Compatibility Directive 2014/30/EU, FCC Part 2/15/18, KC Registration, and IP68 NEMA Type 4X/12 protection ratings.
