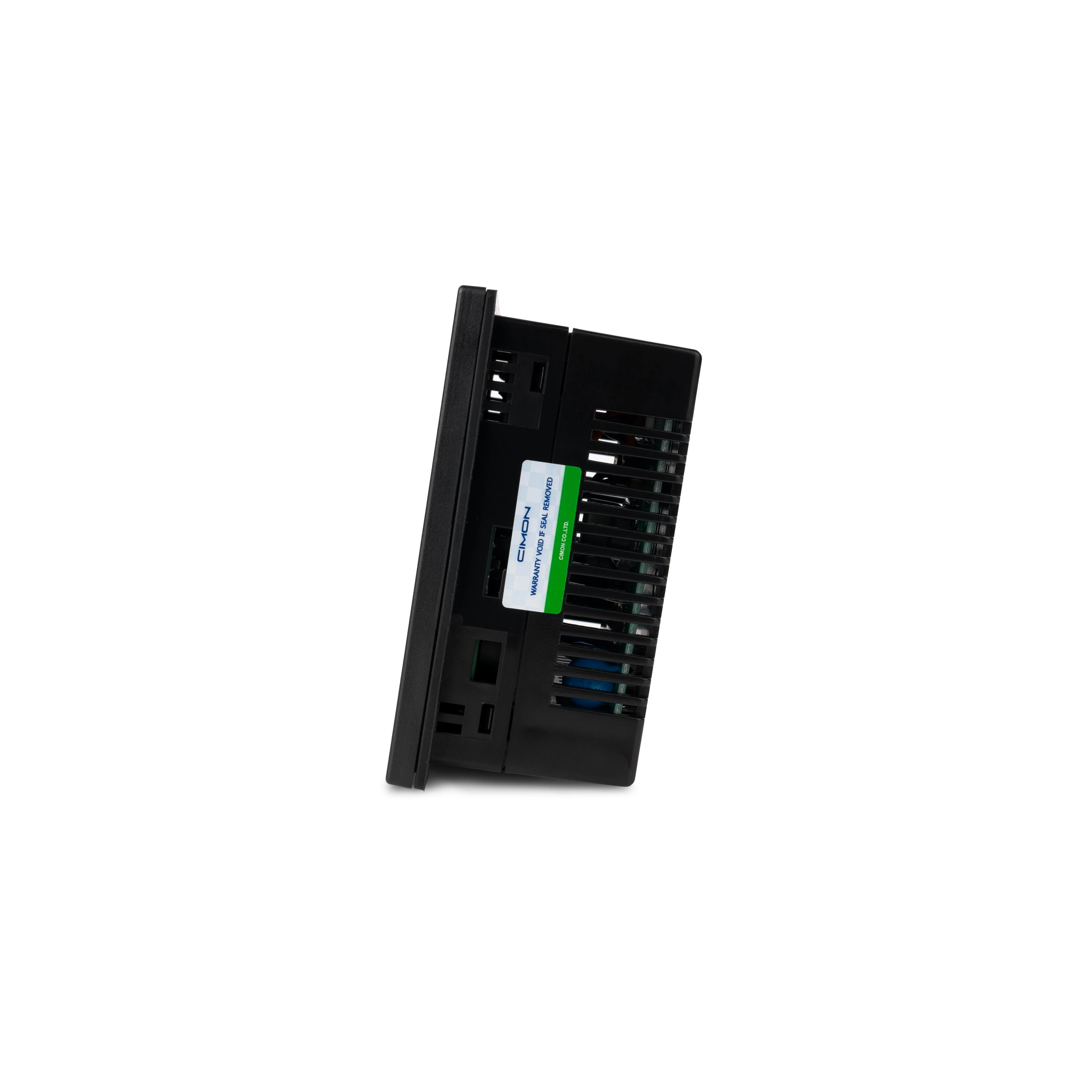

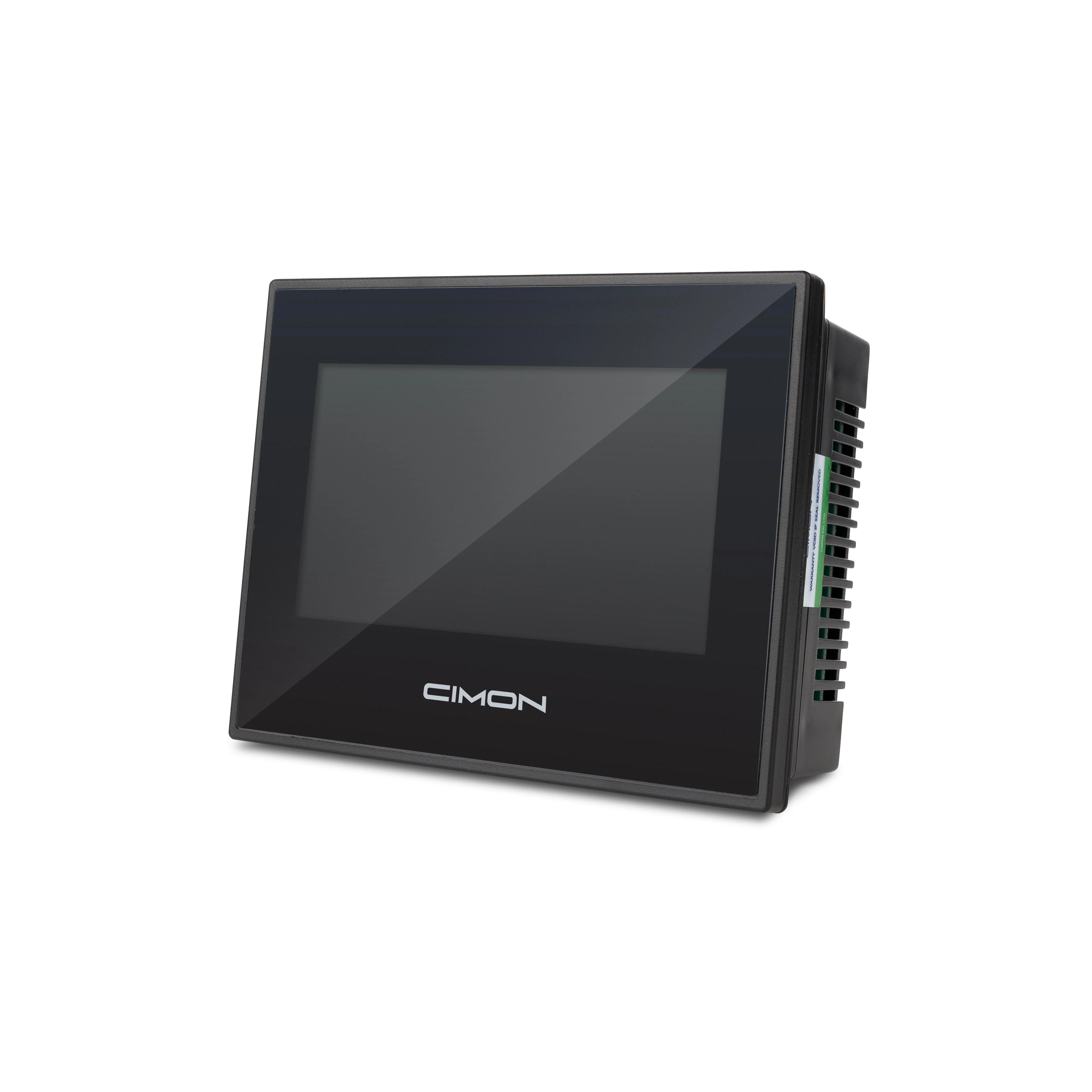

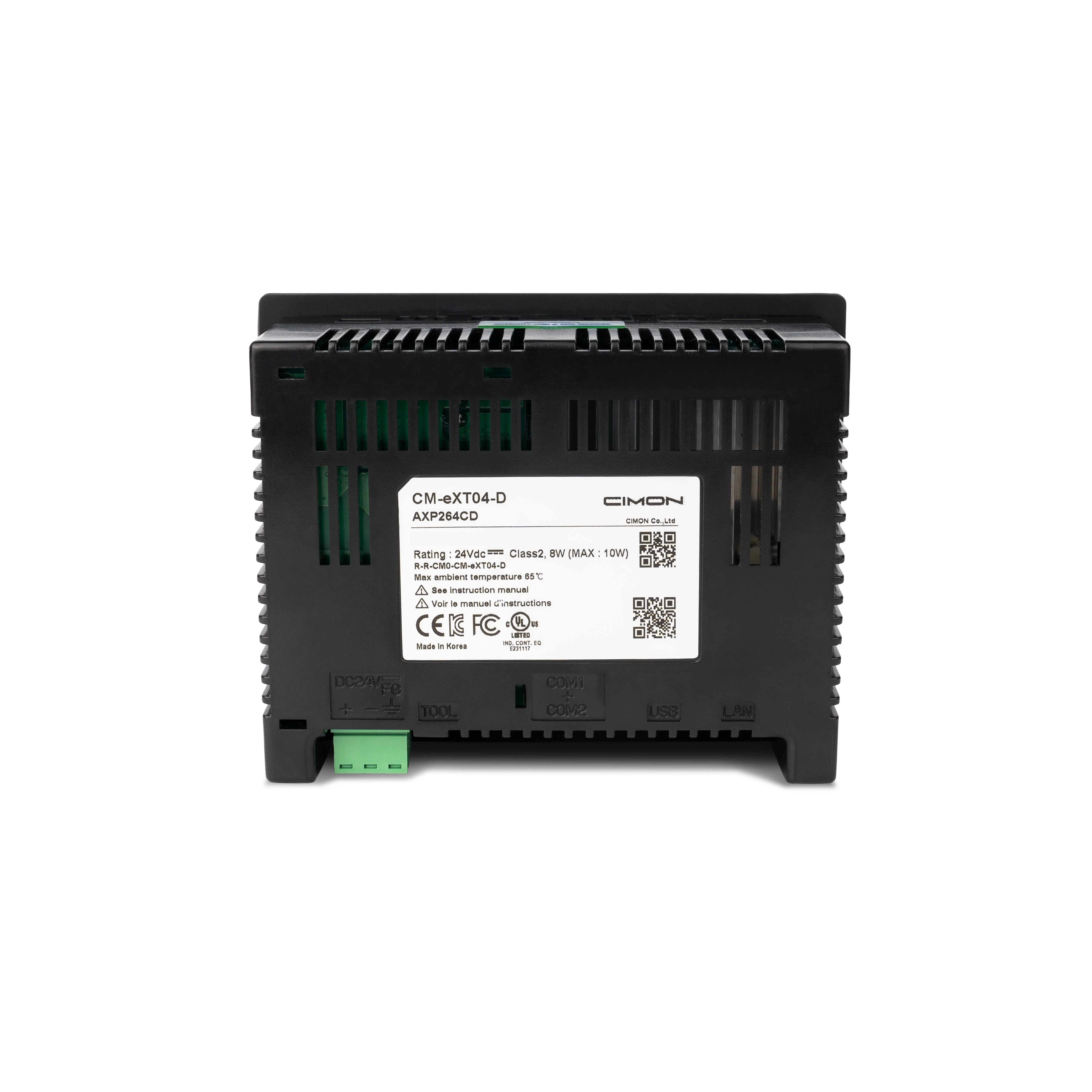

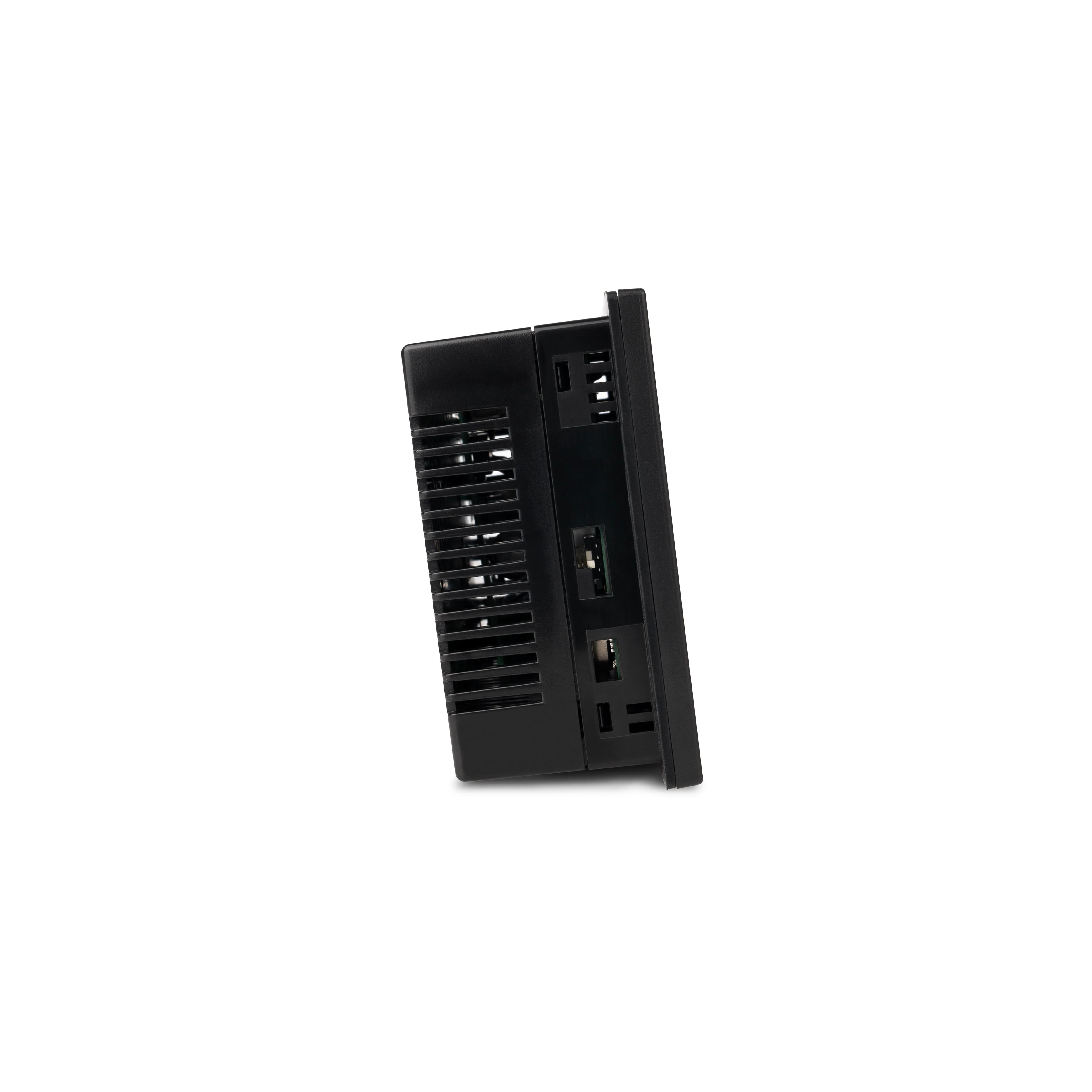

CM-eXT04-D 4.3 inch, eXT Xpanel, Base HMI

4.3" TFT Display 800x480 Resolution
IP65 Protected Resistive Touch Panel
Operating Temperature 0-65°C Range
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Quick Delivery Available
Technical Support Included
Certifications: UL, CE, FCC, IP65

Trusted by Hundreds of Companies Globally

Technical Specifications at a Glance

Comprehensive technical details for the CM-eXT04-D 4.3" HMI display unit.

Parameter
Specification
Display Size
4.3 inch
Display Type
TFT Color
Resolution
WVGA 800 x 480
Touch Panel
4 Wire Resistive
Memory (RAM)
512 MB DDR3
Storage
8 GB eMMC
Operating Temperature
0-65°C
Power Supply
24 VDC Class 2 rated
Protection Rating
IP65 NEMA Type 4X, 12
Country of Origin
🇰🇷 South Korea

Engineered for Industrial Excellence

Advanced features and robust construction designed to deliver reliable performance in demanding industrial environments.

High-Resolution Display

4.3-inch TFT color display with 800x480 resolution delivers crisp, clear visuals with 16.7M colors and 600 cd/m² luminance for excellent visibility in various lighting conditions.

Reliable Touch Interface

4-wire resistive single touch panel provides consistent operation even with gloves, ensuring reliable user interaction in industrial environments.

Industrial Protection

IP65 front protection class with NEMA Type 4X, 12 compliance ensures reliable operation in harsh industrial environments with dust and moisture protection.

Extended Temperature Range

Operating temperature range of 0-65°C allows deployment in challenging thermal environments while maintaining consistent performance and reliability.

Comprehensive Connectivity

Multiple connectivity options including Ethernet, RS-232/485 serial ports, and USB interfaces ensure seamless integration with existing industrial automation systems.

Powerful Processing

512 MB DDR3 memory and 8 GB eMMC storage with embedded Linux operating system provide robust processing capability for complex HMI applications.

Frequently Asked Questions

What operating systems does the CM-eXT04-D support?
The CM-eXT04-D comes with embedded Linux operating system pre-installed. It provides a stable and reliable platform for industrial HMI applications with real-time capabilities and robust performance.
Can this HMI be used in outdoor applications?
Yes, with IP65 front protection class and operating temperature range of 0-65°C, the CM-eXT04-D is suitable for outdoor industrial applications where environmental protection is required.
What connectivity options are available?

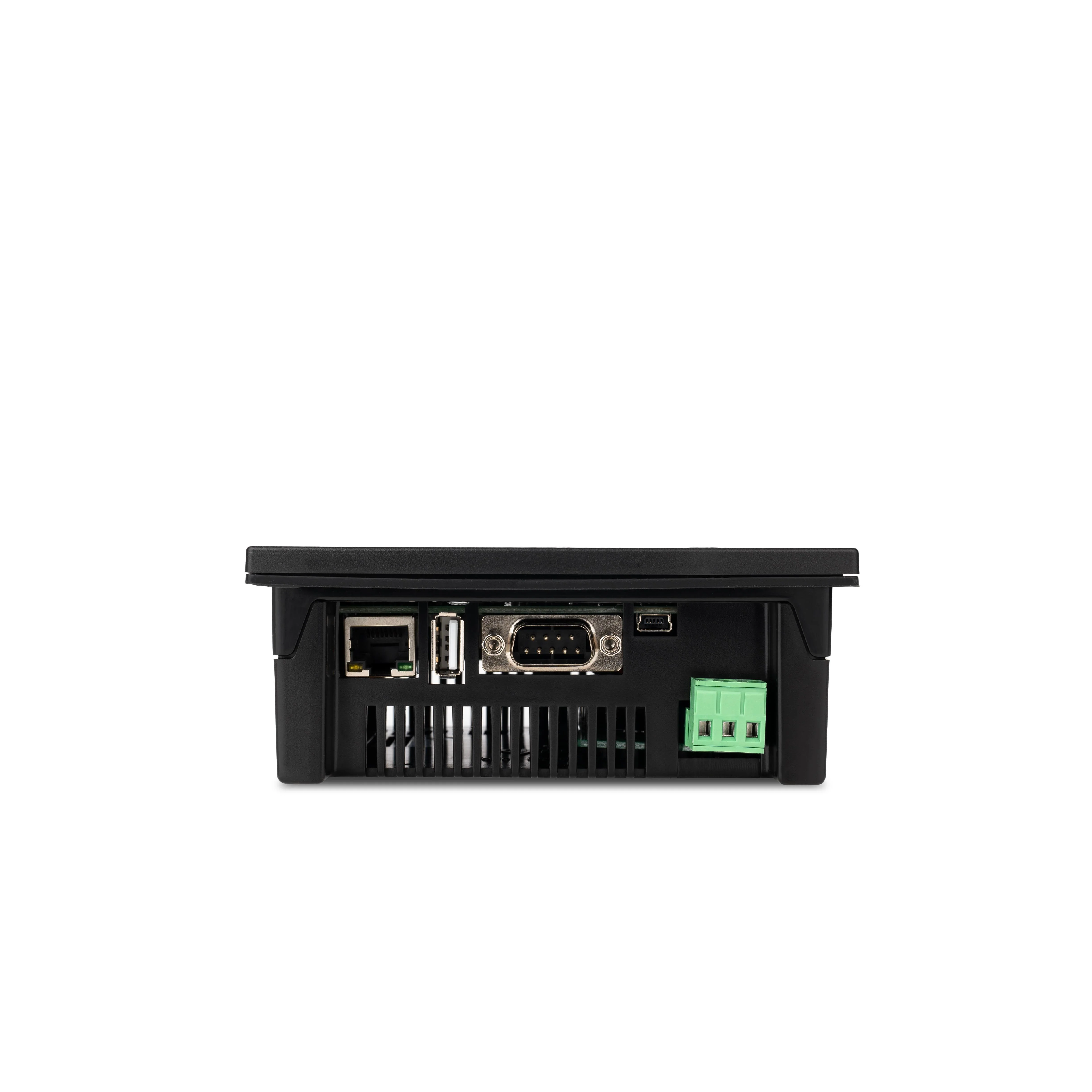

The HMI includes Ethernet (10/100/1000 Mbps), RS-232/485 serial communications, USB Type A host port, and USB mini-B tool port for comprehensive system integration capabilities.
Is technical support available for installation?
Yes, ValuAdd provides comprehensive technical support including installation guidance, configuration assistance, and ongoing support through our experienced engineering team.
What is the expected lifespan of the display?
The LED backlight is rated for 50,000 hours of operation, ensuring long-term reliability and minimal maintenance requirements in industrial applications.

Versatile Industrial Applications

The CM-eXT04-D HMI is engineered for demanding industrial environments requiring reliable operator interfaces.

Industrial HMI applications requiring compact display solutions with resistive touch interface for harsh environments up to 65°C operating temperature#1.5

Industrial Automation

Compact HMI solutions for manufacturing control systems requiring reliable operator interfaces in harsh industrial environments with temperature ranges up to 65°C.

What Our Industrial Partners Say

Trusted by manufacturers and system integrators for reliable HMI solutions in critical industrial applications.

Exceptional reliability in harsh environments

The CM-eXT04-D has performed flawlessly in our packaging line operation. The IP65 protection and temperature tolerance make it perfect for our facility conditions.

MJ

Mike Johnson

Plant Engineer, FoodTech Manufacturing

Excellent integration capabilities

ValuAdd's technical support and the HMI's multiple connectivity options made our system integration seamless. The resistive touch works perfectly with operator gloves.

SL

Sarah Lee

Systems Engineer, AutoControl Solutions

Outstanding display quality and durability

The high-resolution display and LED backlight have maintained excellent visibility throughout our 24/7 operation. Highly recommend for industrial applications.

DW

David Wilson

Maintenance Supervisor, MetalWorks Inc

Reliable performance in demanding conditions

After 18 months of operation in our automotive production line, the CM-eXT04-D continues to deliver consistent performance without any maintenance issues.

LM

Linda Martinez

Production Manager, AutoParts Manufacturing

Perfect size for panel integration

The compact 4.3" size fits perfectly in our control panels while providing excellent visibility. The embedded Linux system handles our applications smoothly.

RT

Robert Taylor

Panel Builder, ElectroTech Systems

Excellent value for industrial applications

The combination of features, reliability, and ValuAdd's technical support makes this HMI an excellent choice for cost-effective industrial automation projects.

KC

Kevin Chen

Project Engineer, Industrial Solutions Group
