Exceptional reliability and performance
The Cimon HMI systems have proven invaluable in our manufacturing operations. The display quality is outstanding and the touch response is incredibly reliable, even in our harsh production environment.
UL Certified
CE Compliant

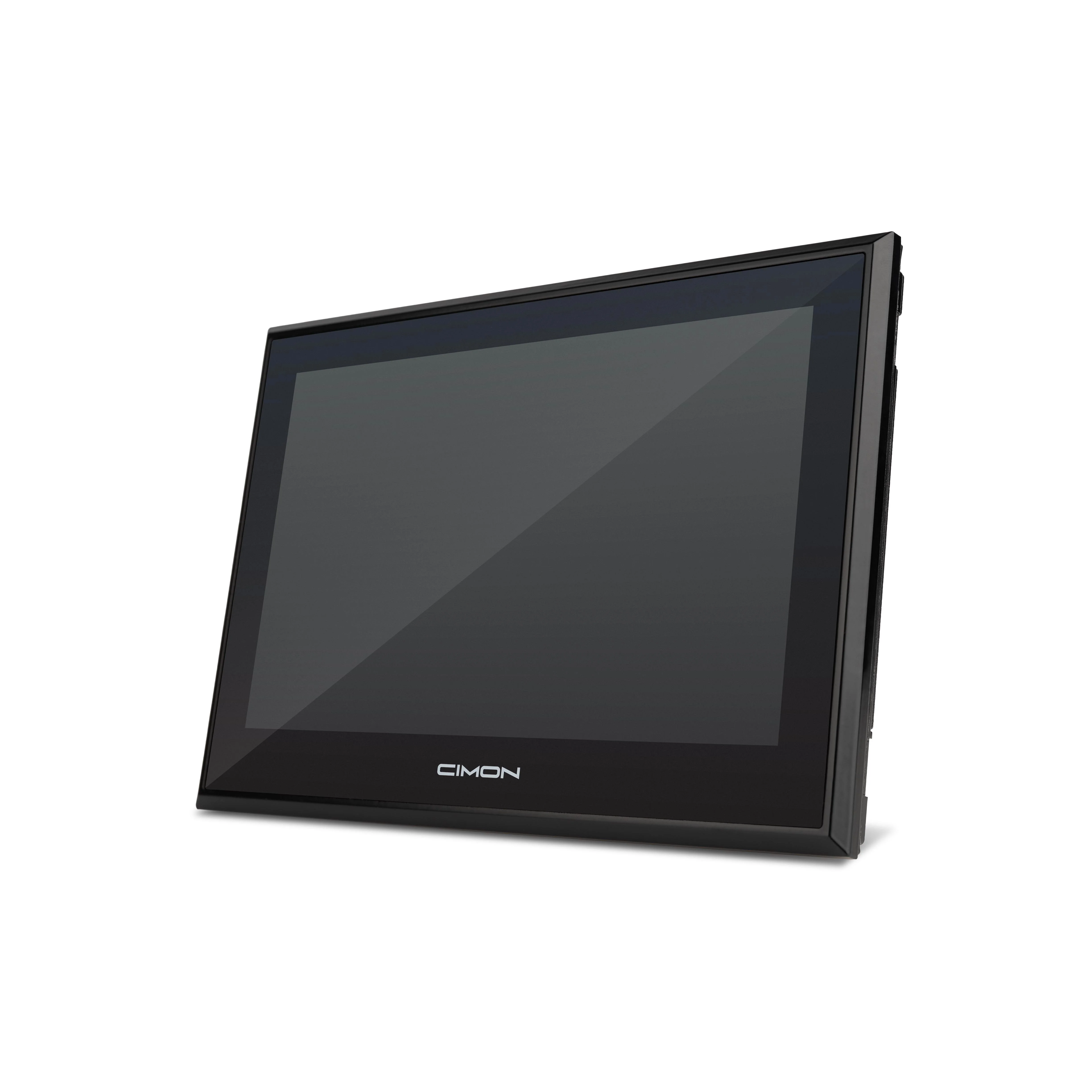

CM-eXT2-10W-R-DE - 10.1 inch, eXT2 Xpanel, Base HMI
10.1" Wide TFT Color Display
IP66 Protection Rating
Embedded Linux OS
Price
Price Available on Request
Contact for Availability
Technical Support Included
Certifications: UL, CE, IP66
Trusted by Hundreds of Companies Globally
Technical Specifications Overview
Complete technical details and performance specifications for the CM-eXT2-10W-R-DE HMI system
PARAMETER
SPECIFICATION
Display Size
10.1 inch
Display Type
Wide TFT Color
Resolution
1280 x 800 WXGA (16:10)
Touch Interface
5 wire resistive with ±2% accuracy
Memory
2 GB LPDDR4 RAM, 8 GB eMMC Storage
Power Consumption
15W (16W max)
Operating Voltage
24 VDC
Protection Rating
IP66 front (NEMA Type 4X, 12)
Dimensions
262.3 x 187.9 x 51.9 mm
Country of Origin
🇰🇷
South Korea
Engineered for Performance
Experience superior reliability and functionality with advanced features designed for demanding industrial applications.
High-Resolution Display
10.1-inch wide TFT color display with 1280 x 800 WXGA resolution delivers crystal-clear visuals with 16.7M colors for enhanced operator experience and precise monitoring.
Precise Touch Control
5-wire resistive touch panel with ±2% accuracy ensures reliable and responsive touch operation even in harsh industrial environments with gloved hands.
Industrial Protection
IP66 front protection class and NEMA Type 4X rating provide superior resistance to dust, water, and corrosive environments for reliable long-term operation.
Versatile Connectivity
Multiple communication ports including Ethernet, RS-422/485, RS-232C, and USB interfaces enable seamless integration with various industrial systems and equipment.
Embedded Linux OS
Powerful embedded Linux operating system with 2GB RAM and 8GB storage provides robust performance and extensive compatibility with industrial automation software.
Reliable Operation
Built-in real-time clock with 10-year backup and 50,000-hour LED backlight life ensure consistent performance and minimal maintenance requirements in critical applications.
Frequently Asked Questions
What connectivity options are available?

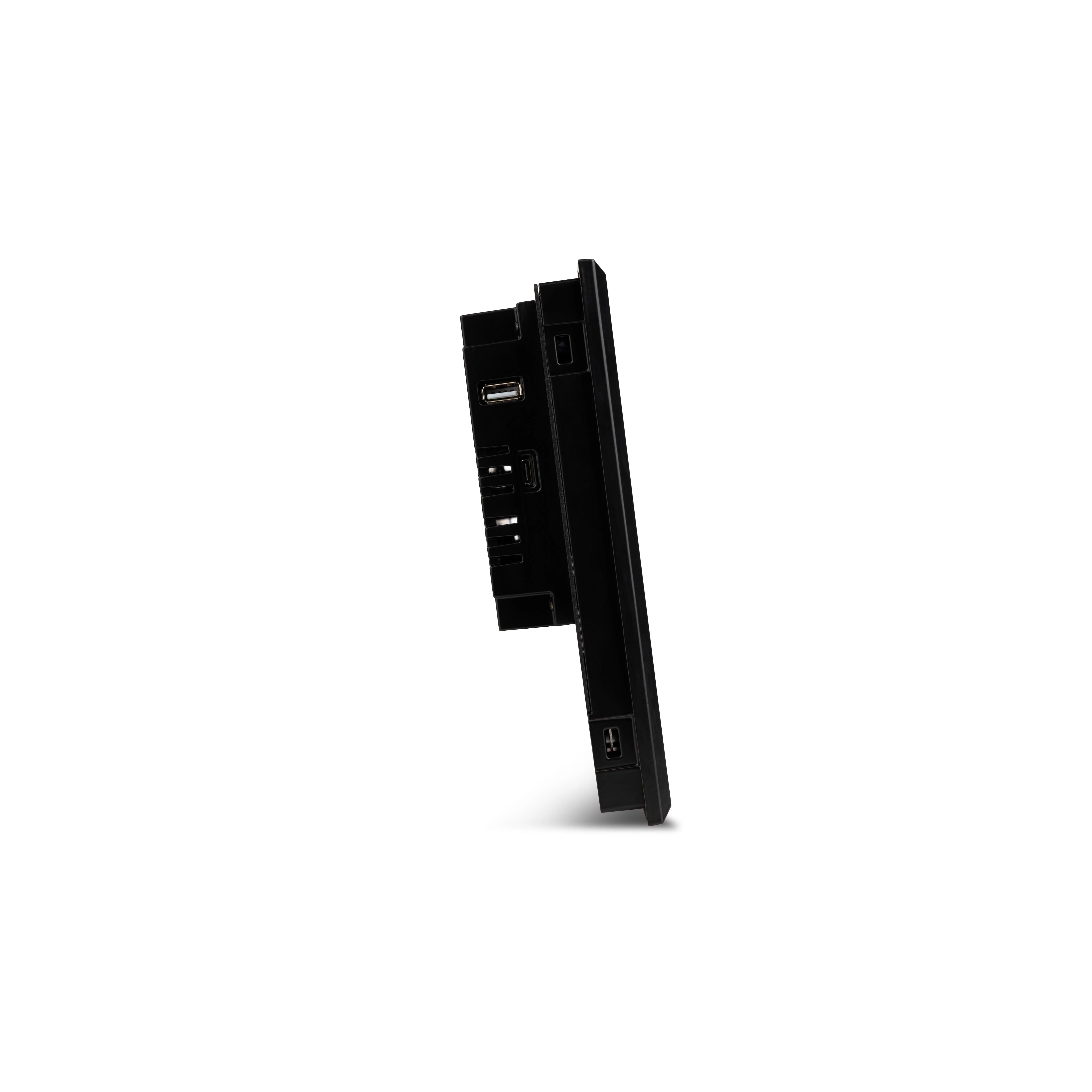

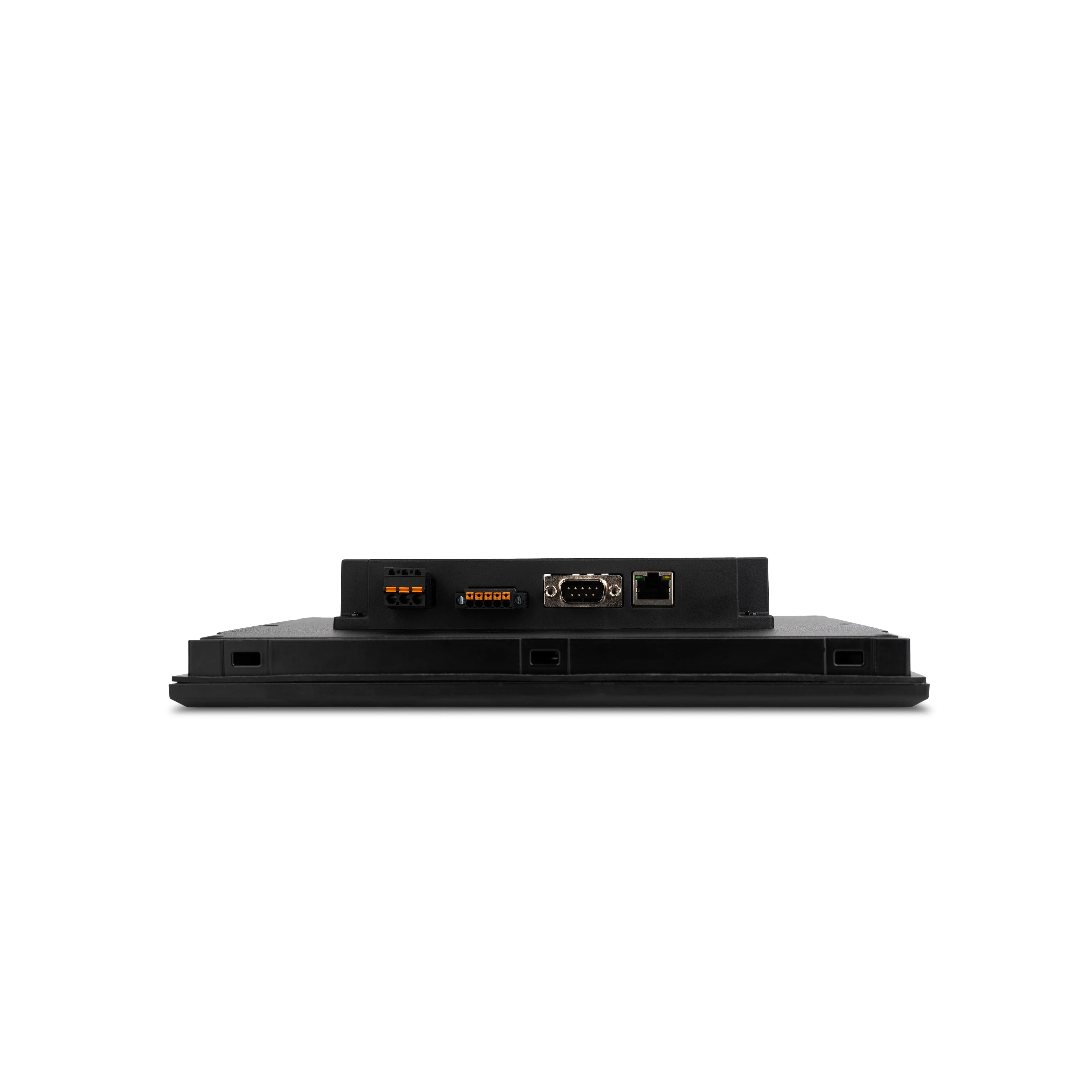

The HMI includes comprehensive connectivity with 1x Ethernet (10/100/1000), 2x Serial ports (RS-422/485 and RS-232C), 1x USB Type A host port, and 1x USB-C tool port for versatile industrial communication needs.
What certifications does this HMI have?
The unit is certified with UL61010-1/UL61010-2-201, CE EMC Directive 2014/30/EU, FCC Part 2/15/18, KC Registration, and meets IP66 front protection with NEMA Type 4X and 12 ratings.
What is the operating environment range?
The HMI operates reliably in temperatures from 0-65°C, storage temperatures from -25 to +75°C, humidity levels of 10-90% RH, and altitude ranges of 700-1114 hPa for demanding industrial environments.
What technical support is available for this product?
ValuAdd provides comprehensive technical support including product manuals, datasheets, installation guidance, and direct access to technical experts through our contact form and dedicated support channels.
Get Product Documentation
Access comprehensive manuals and technical resources for your HMI system.
What Our Clients Say
Discover how industrial professionals trust our HMI solutions for critical automation applications across various industries.
Explore Related HMI Solutions
Discover our comprehensive range of Cimon HMI systems designed to meet diverse industrial automation requirements across various applications.
7 inch, eXT2 Xpanel, Advanced HMI (CM-eXT2-07-R-DF)
Compact 7-inch advanced HMI featuring WSVGA resolution, LED backlight with 1,000 cd/m² luminance, 4-wire resistive touch, dual Ethernet connectivity, and IP68 front protection for versatile industrial applications.
CM-eXT2-15W-R-DF - 15.6 inch, eXT2 Xpanel, Advanced HMI
Large 15.6-inch advanced HMI with Full HD resolution, aluminum construction, 5-wire resistive touch, dual Ethernet ports, VESA mounting support, and IP68 protection for demanding industrial environments.
CM-nXT07-D - 7 Inch, nXT Xpanel, Extreme HMI
Extreme performance 7-inch HMI with aluminum construction, capacitive multi-touch (5 points), 1,000 cd/m² luminance, dual Ethernet connectivity, and IP68/IP20 protection ratings for harsh industrial conditions.
