CM-eXT2-12W-R-DF Advanced HMI
12.1" TFT Color Display with 1280x800 Resolution
IP68 Front Protection Class
Dual Ethernet & Serial Ports
Price
Price Available on Request
Fast Shipping Available
Technical Support Included
Certifications: UL, CE, FCC, NEMA
Trusted by Hundreds of Companies Globally
Technical Specifications Overview
Detailed specifications for the CM-eXT2-12W-R-DF Advanced HMI system for industrial automation applications.
Parameter
Specification
Display Size
12.1 inch Wide TFT Color
Resolution
1280 x 800 WXGA
Touch Panel
5 wire resistive with ±2% accuracy
Memory
2 GB LPDDR4 RAM, 8 GB eMMC
Connectivity
Dual Ethernet, RS-422/485, RS-232C
Power Supply
24 VDC, 21.2W consumption
Operating Temperature
-20 to +70°C
Protection Class
IP68 front, NEMA Type 4X and 12
Dimensions
314.3 x 220.5 x 53.9 mm
Country of Origin
🇰🇷
South Korea
Built for Industrial Excellence
Advanced features and robust construction deliver reliable performance in demanding industrial environments.
High-Resolution Display

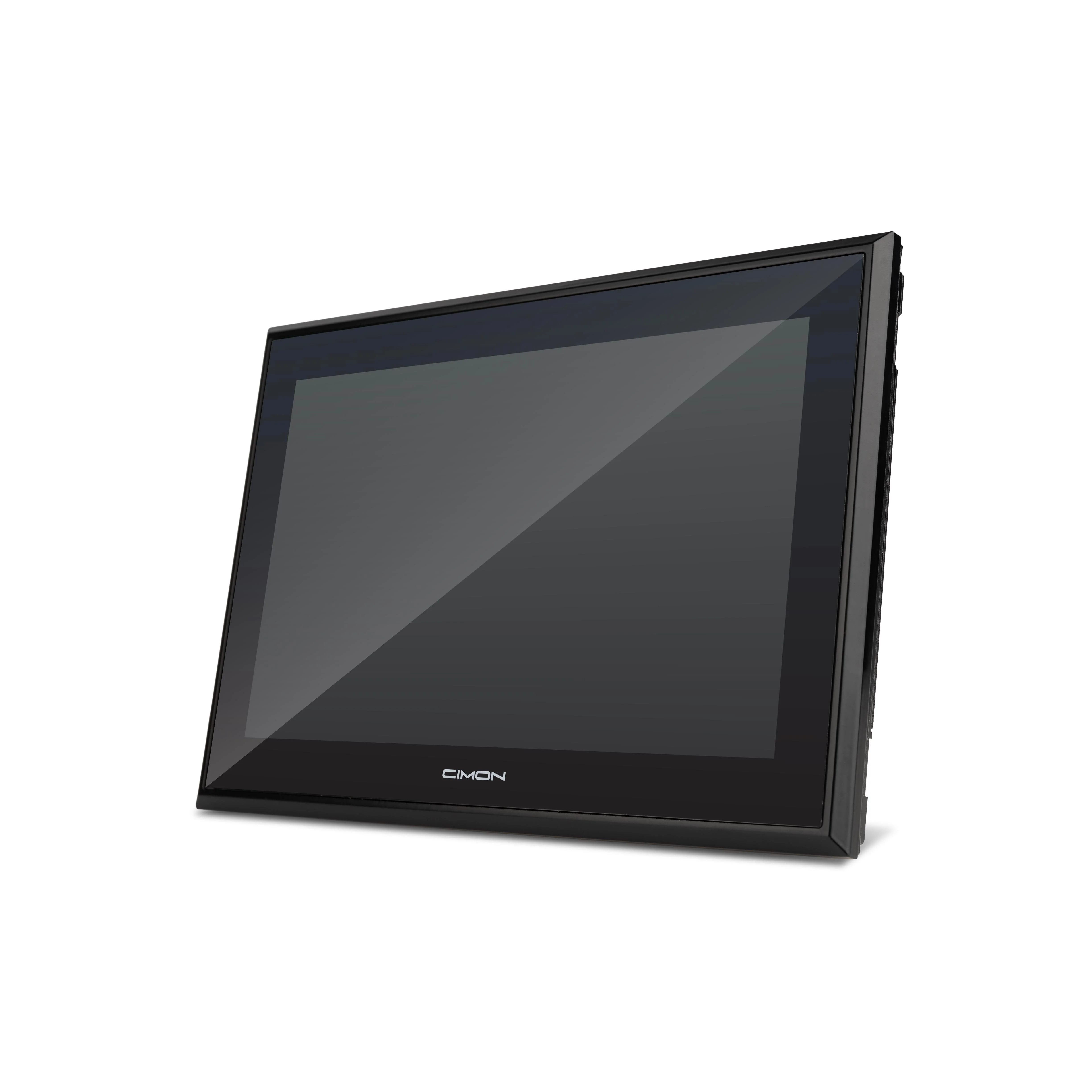

Crystal clear 12.1-inch display with 1280x800 resolution and 600 cd/m² luminance provides exceptional visibility for critical industrial applications.
Industrial Protection
IP68 front protection and NEMA Type 4X compliance ensures reliable operation in harsh industrial environments with dust and moisture protection.
Versatile Connectivity
Dual Ethernet ports, serial communication, USB interfaces, and MicroSD slot provide flexible connectivity options for industrial automation systems.
Powerful Processing
Embedded Linux OS with 2GB RAM and 8GB storage ensures smooth performance for demanding HMI applications and data processing tasks.
Precise Touch Control
5-wire resistive touch panel with ±2% accuracy provides reliable touch response even when wearing gloves in industrial settings.
Certified Reliability
UL, CE, FCC certified with compliance to international standards ensures safety and reliability for global industrial installations.
Frequently Asked Questions
Can this HMI withstand harsh industrial environments?
Yes, it features IP68 front protection class and NEMA Type 4X compliance, operating from -20 to +70°C with vibration and shock protection per JIS B 3502 standards.
What connectivity options are available on this unit?

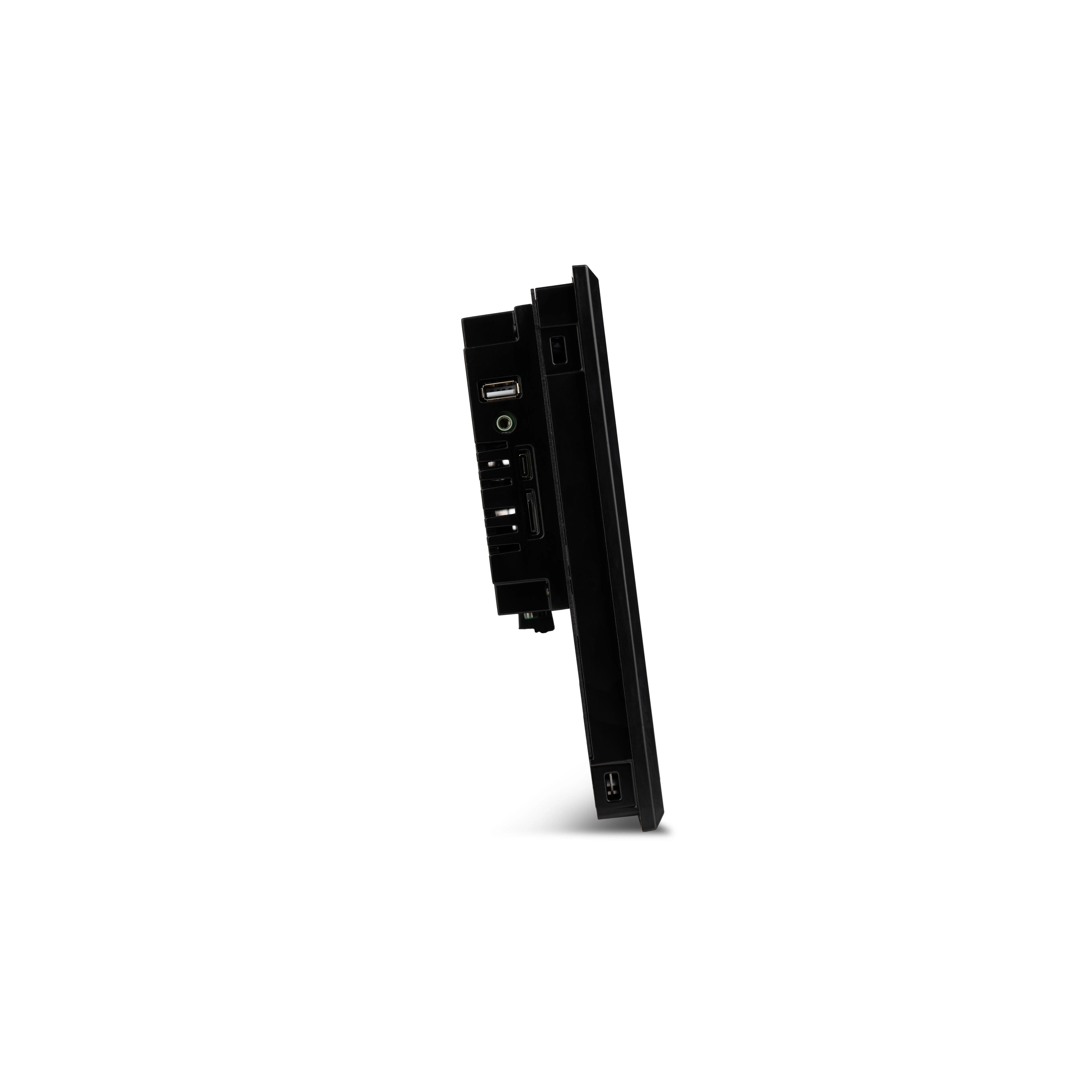

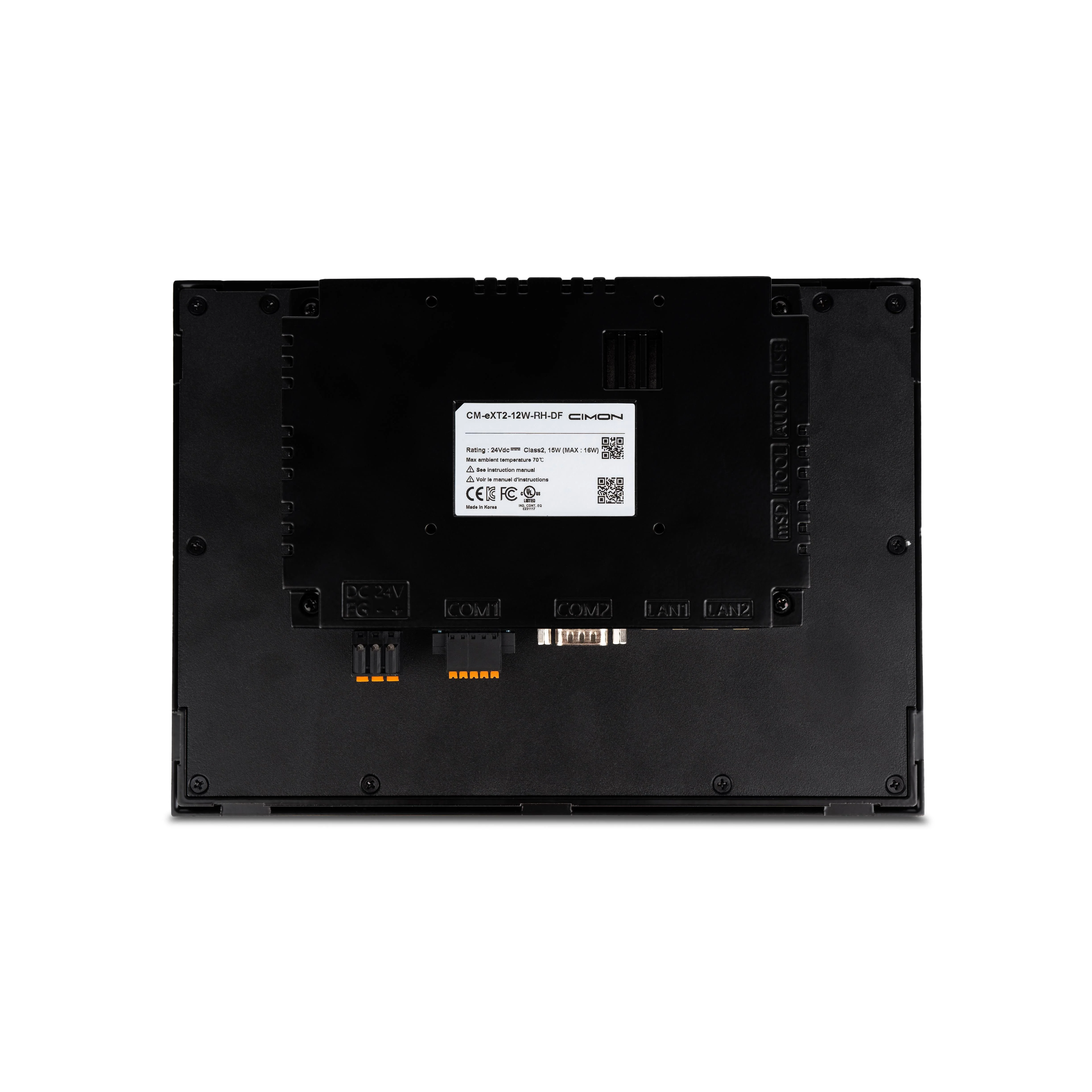

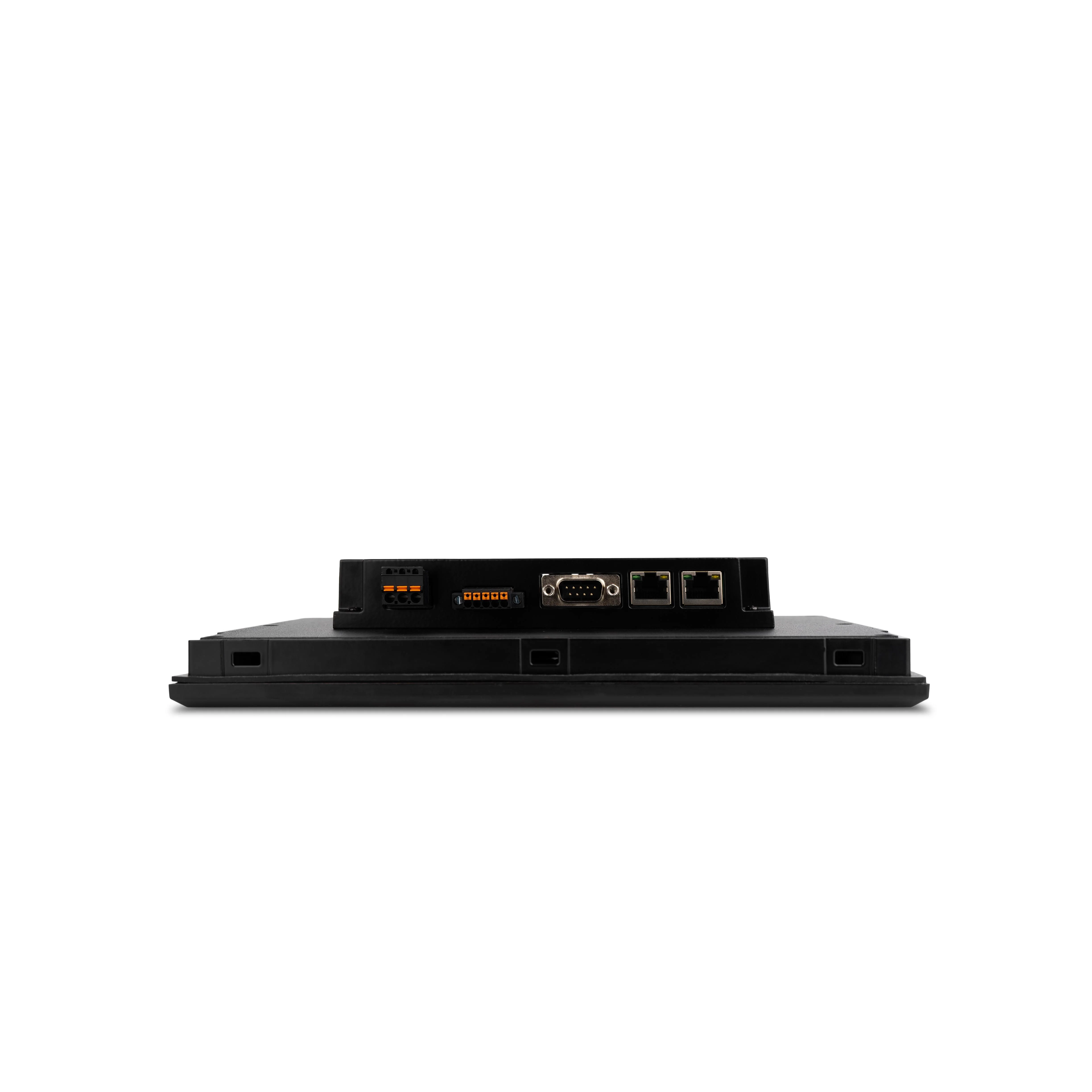

The unit includes dual Ethernet ports, RS-422/485 and RS-232C serial ports, USB Type A and USB-C tool port, MicroSD slot, and audio line-out.
How long is the display backlight expected to last?
The LED backlight has a rated life of 50,000 hours, providing long-term reliability for continuous industrial operations.
What mounting options are supported for installation?
The unit supports panel mounting with a 305 x 212 mm cutout and features VESA 75mm x 75mm mounting compatibility for flexible installation options.
