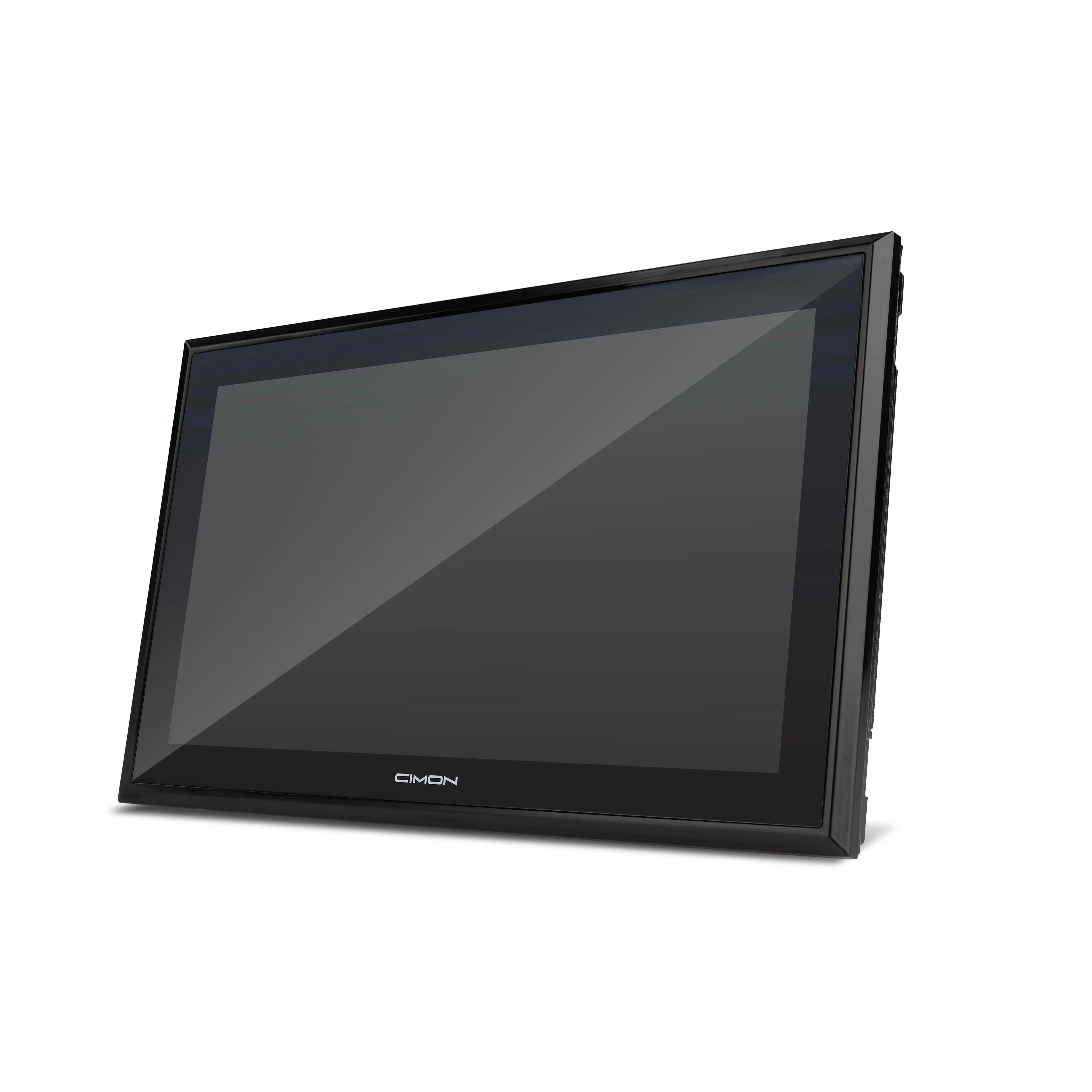

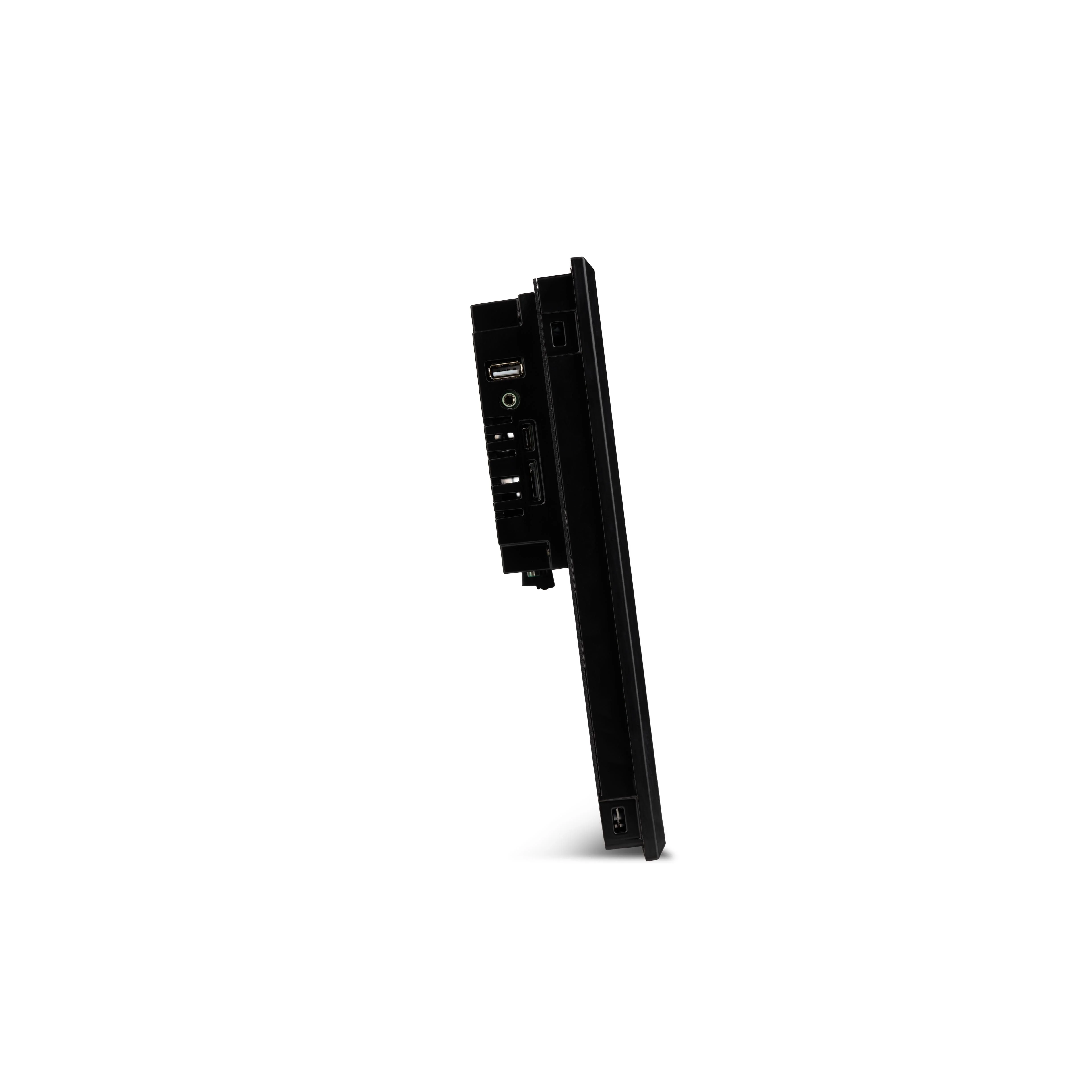

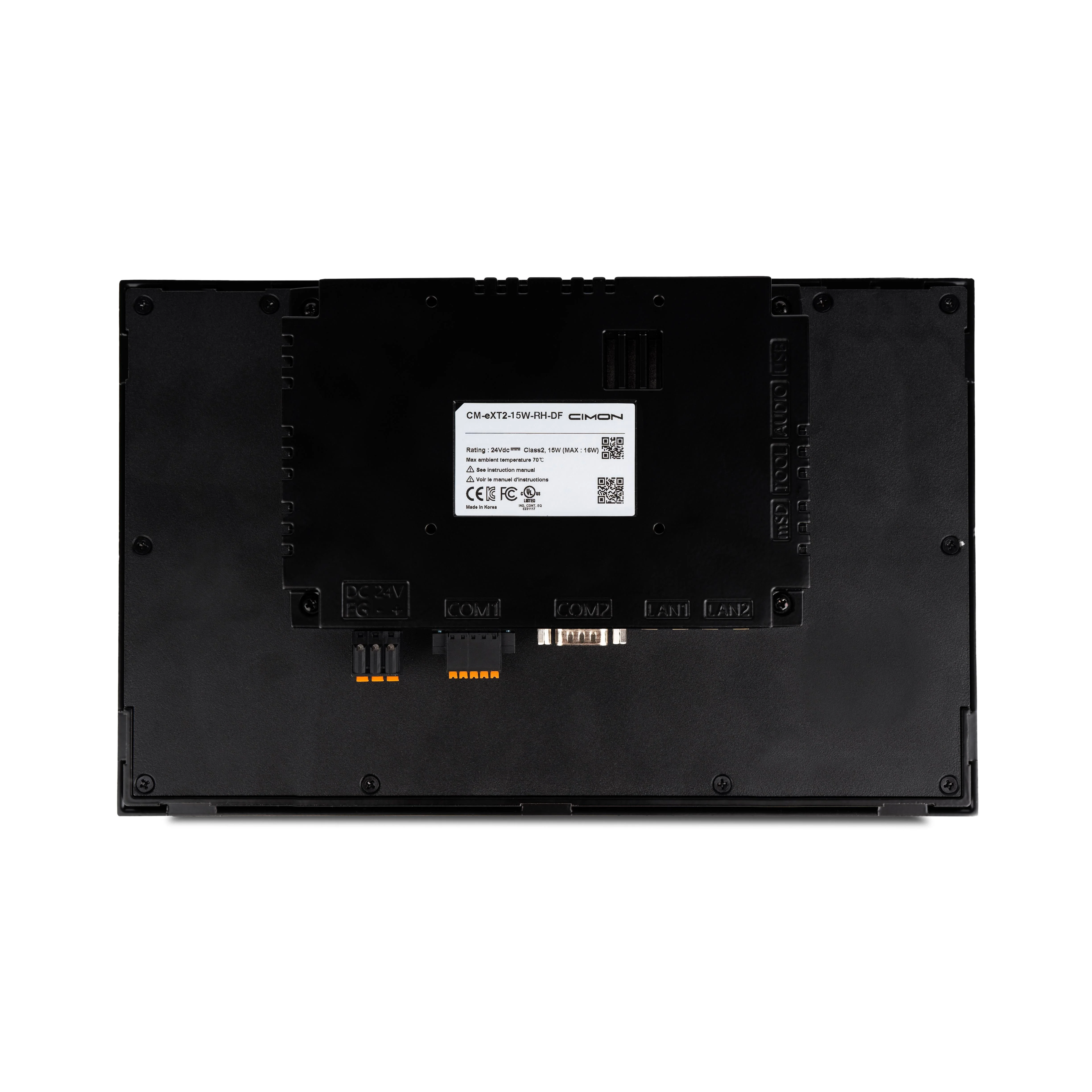

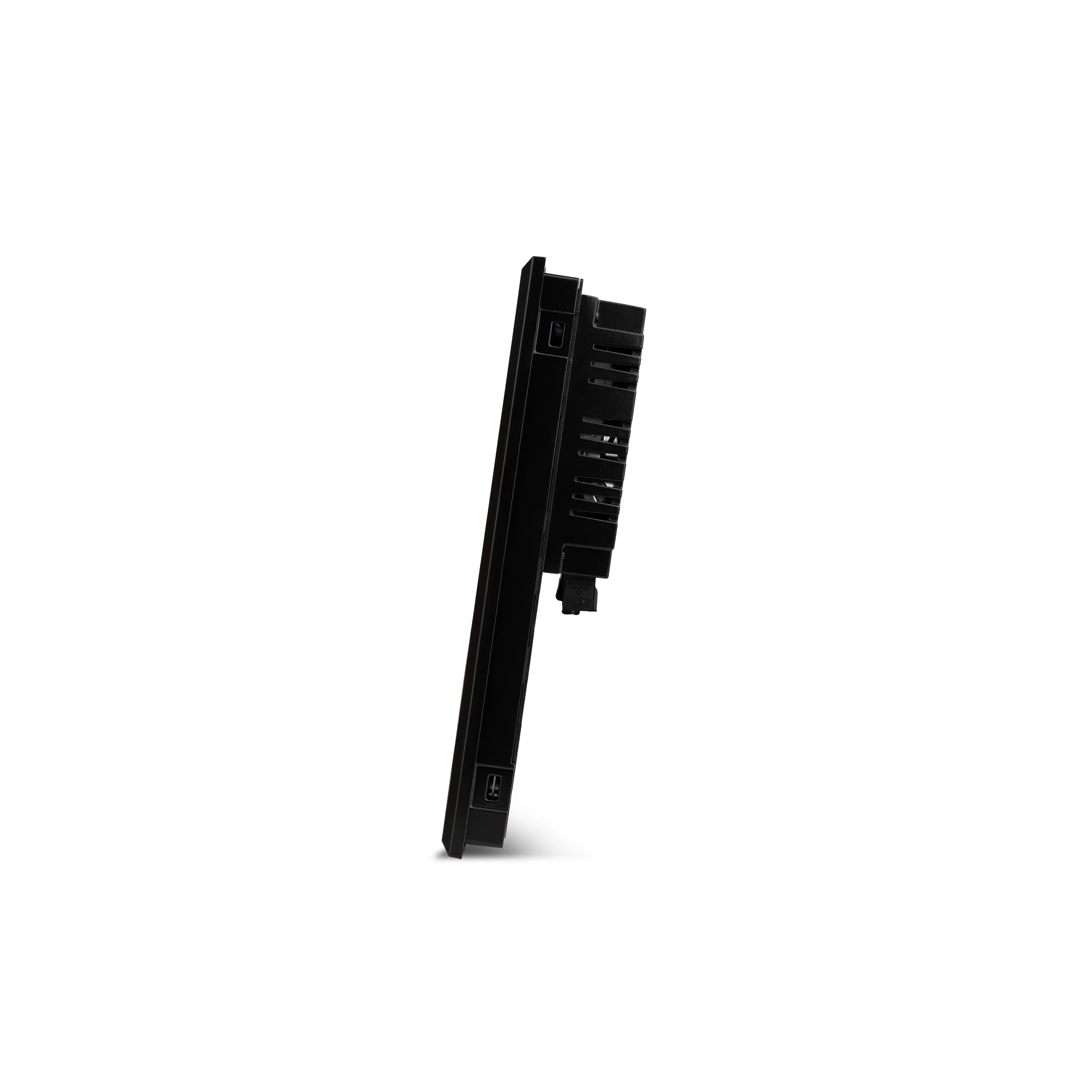

CM-eXT2-15W-RH-DF 15.6 inch, eXT2 Xpanel, High-Brightness HMI

15.6" High-Brightness Display
50,000 Hours LED Life
Dual Ethernet Connectivity
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Fast Processing
Technical Support
Certifications: CE, FCC, IP68, NEMA

Trusted by Hundreds of Companies Globally

Technical Specifications Overview

Comprehensive technical details for the CM-eXT2-15W-RH-DF high-brightness HMI display system.

Parameter
Specification
Display Size
15.6 inch
Display Type
Wide TFT Color
Resolution
1920 x 1080 WXGA (16:9)
Touch Type
5-wire resistive
RAM
2 GB LPDDR4
Storage
8 GB eMMC
Ethernet Ports
2x 10/100/1000
Operating Temperature
-20 – +70°C (-4 – +158°F)
Protection Rating
IP68 front, NEMA Type 4X and 12
Country of Origin
🇰🇷 South Korea
Request a Quote

Engineered for Industrial Excellence

Experience superior performance and reliability with advanced features designed for demanding industrial applications and harsh environments.

High-Brightness Display

1,200 cd/m² luminance with aluminum enclosure provides exceptional visibility even in bright industrial environments and direct sunlight conditions.

Rugged Protection

IP68 front protection with NEMA Type 4X and 12 compliance ensures reliable operation in dusty, wet, and harsh industrial environments.

Advanced Connectivity

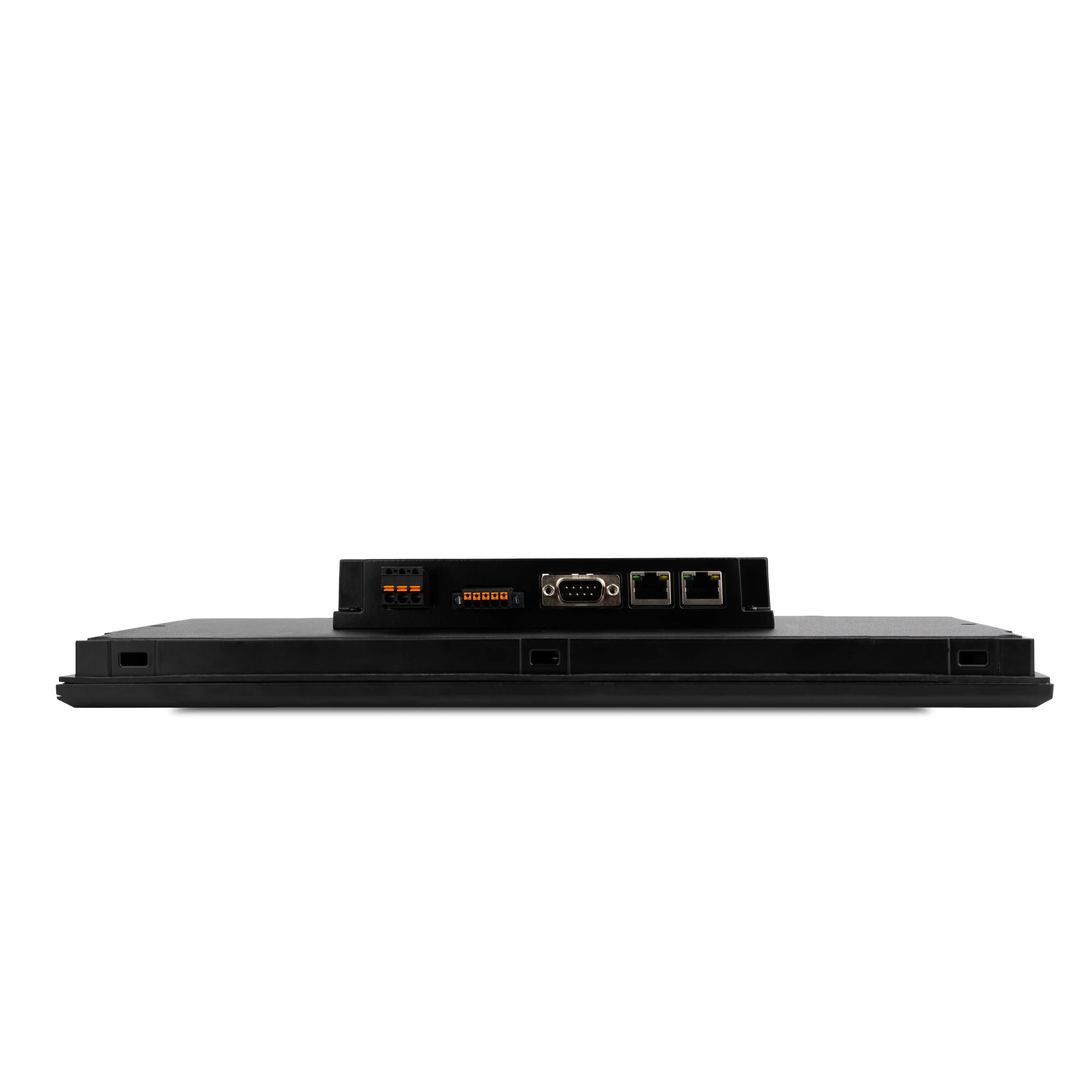

Dual Ethernet ports with RS-422/485 and RS-232C serial communication provide flexible integration with existing industrial networks and systems.

Precision Touch Control

5-wire resistive touch panel with ±2% accuracy delivers reliable input even when wearing gloves in industrial applications.

Powerful Performance

2GB LPDDR4 RAM with 8GB eMMC storage and embedded Linux operating system ensures smooth operation for demanding HMI applications.

Long-Life Operation

LED backlight rated for 50,000 hours of operation with real-time clock backup ensures minimal maintenance and extended service life.

Frequently Asked Questions

What operating systems are supported on this HMI?
The CM-eXT2-15W-RH-DF runs on embedded Linux operating system with 250MB project memory and 4GB user memory. It supports Cimon's eXT2 Xpanel runtime environment for industrial HMI applications and SCADA systems.
Can this HMI work with PLCs from different manufacturers?
Yes, the dual Ethernet ports and serial communication interfaces support various industrial protocols enabling compatibility with PLCs from major manufacturers including Siemens, Allen-Bradley, Schneider Electric, and Mitsubishi.
What is the expected lifespan of this HMI display?
The LED backlight is rated for 50,000 hours of operation, which typically translates to 5-7 years of continuous industrial use. The aluminum enclosure and IP68 protection ensure long-term reliability in harsh environments.
Does this model support VESA mounting?
Yes, the CM-eXT2-15W-RH-DF features VESA 75mm x 75mm mounting support for flexible installation options including panel mount, desktop mount, or wall mount configurations in industrial settings.
What certifications does this HMI have for industrial use?
This HMI is certified with UL61010-1, CE EMC Directive compliance, FCC Part 15 and 18, IP68 front protection, NEMA Type 4X and 12, and JIS B 3502 vibration and shock protection standards.

Versatile HMI Applications Across Industrial Sectors

This high-brightness HMI display excels in diverse industrial environments requiring reliable operator interface and process control solutions.

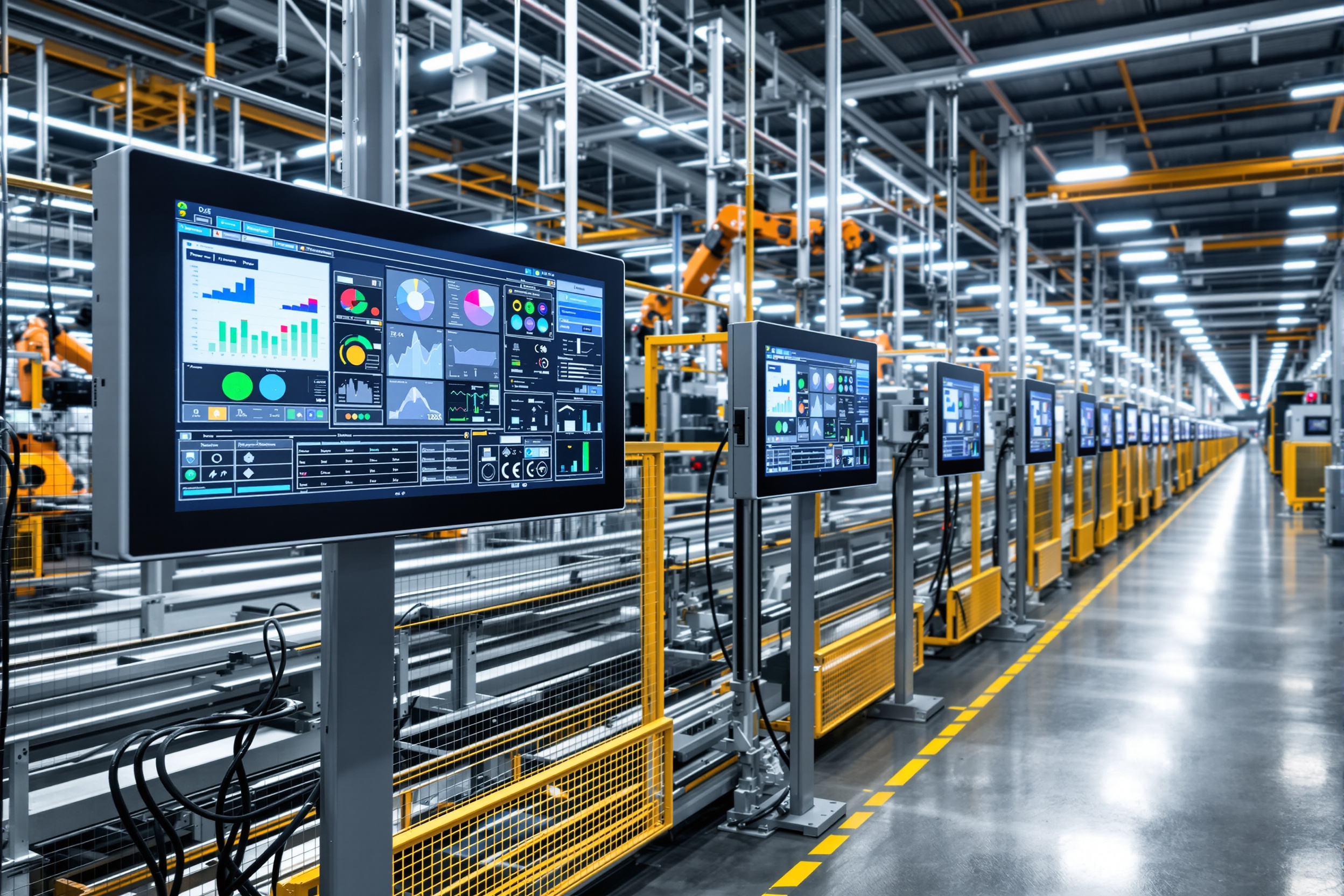

Manufacturing automation with HMI displays for production line control#1.6

Manufacturing Automation

Provides intuitive operator interface for production line monitoring, equipment control, and real-time manufacturing data visualization.

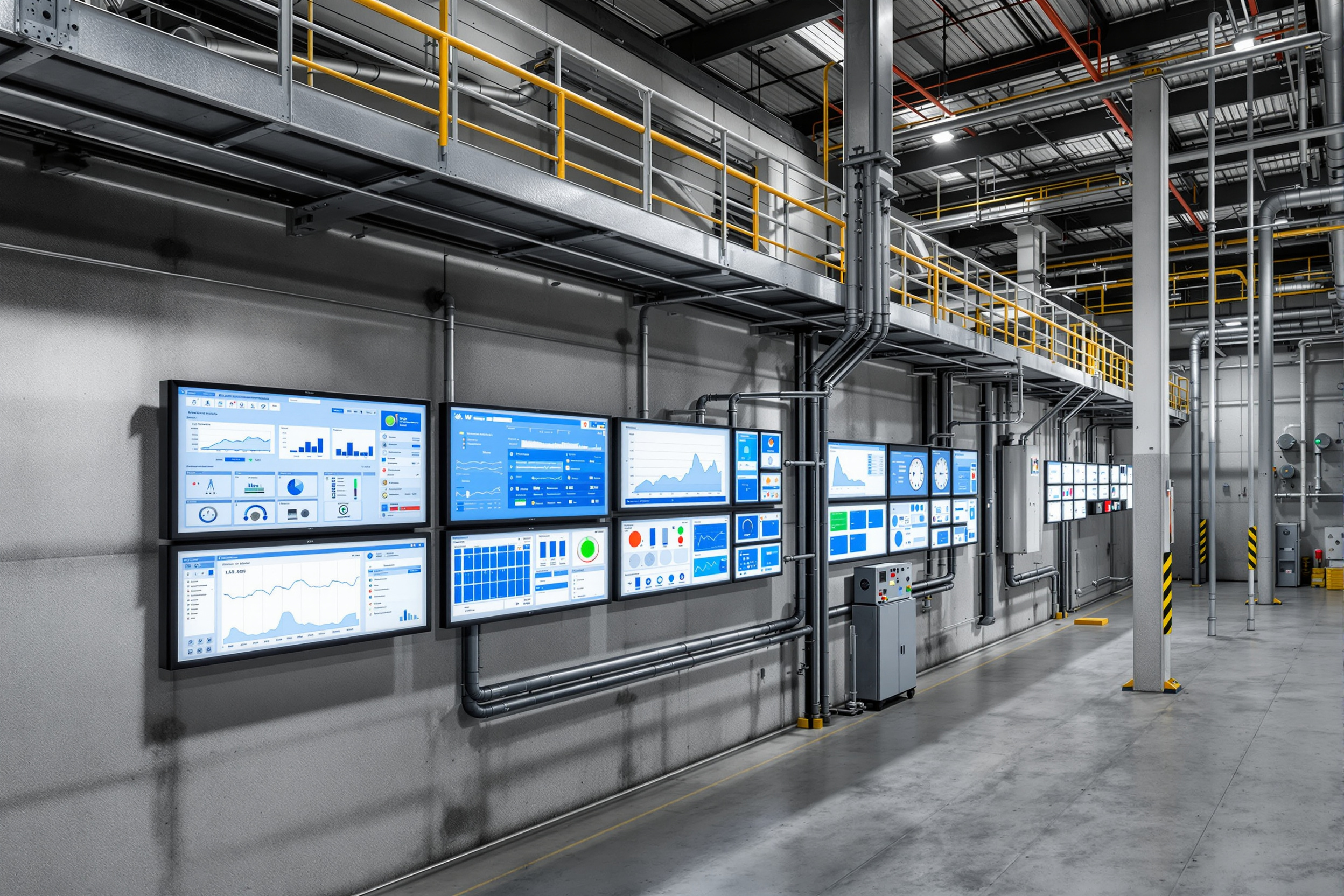

Water treatment facility with industrial HMI control systems#1.6

Water Treatment

Delivers reliable process control for water treatment plants with high-brightness display visibility in outdoor and indoor applications.

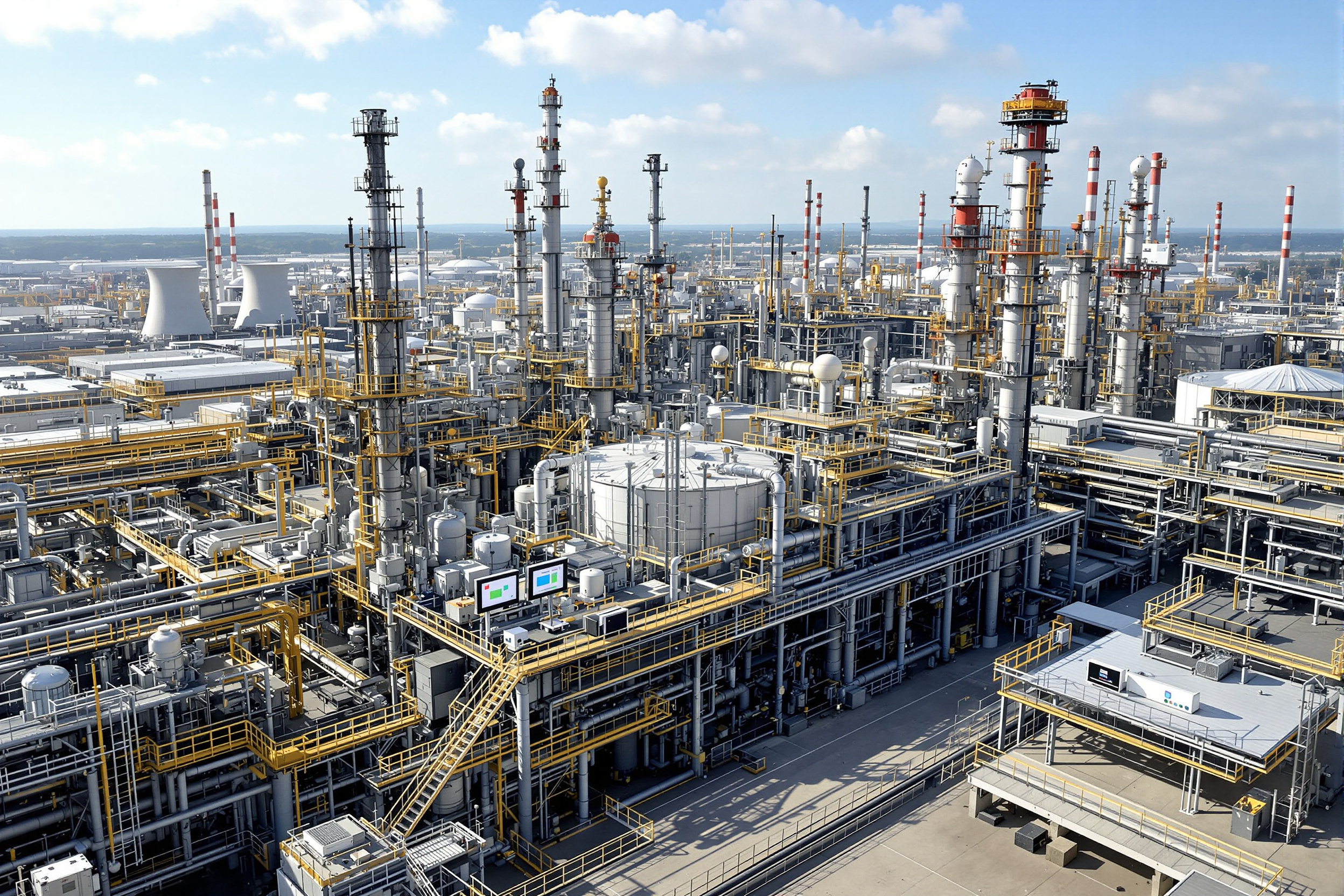

Oil and gas industrial facility with HMI monitoring systems#1.6

Oil & Gas

Ensures safe and efficient operation in hazardous environments with rugged IP68 protection and NEMA compliance for critical process control.
