Exceptional reliability in harsh conditions
The CM-nXT07-D has been running flawlessly in our chemical processing plant for over two years. The IP68 rating and temperature tolerance have proven invaluable in our demanding environment.
UL Listed
CE Certified

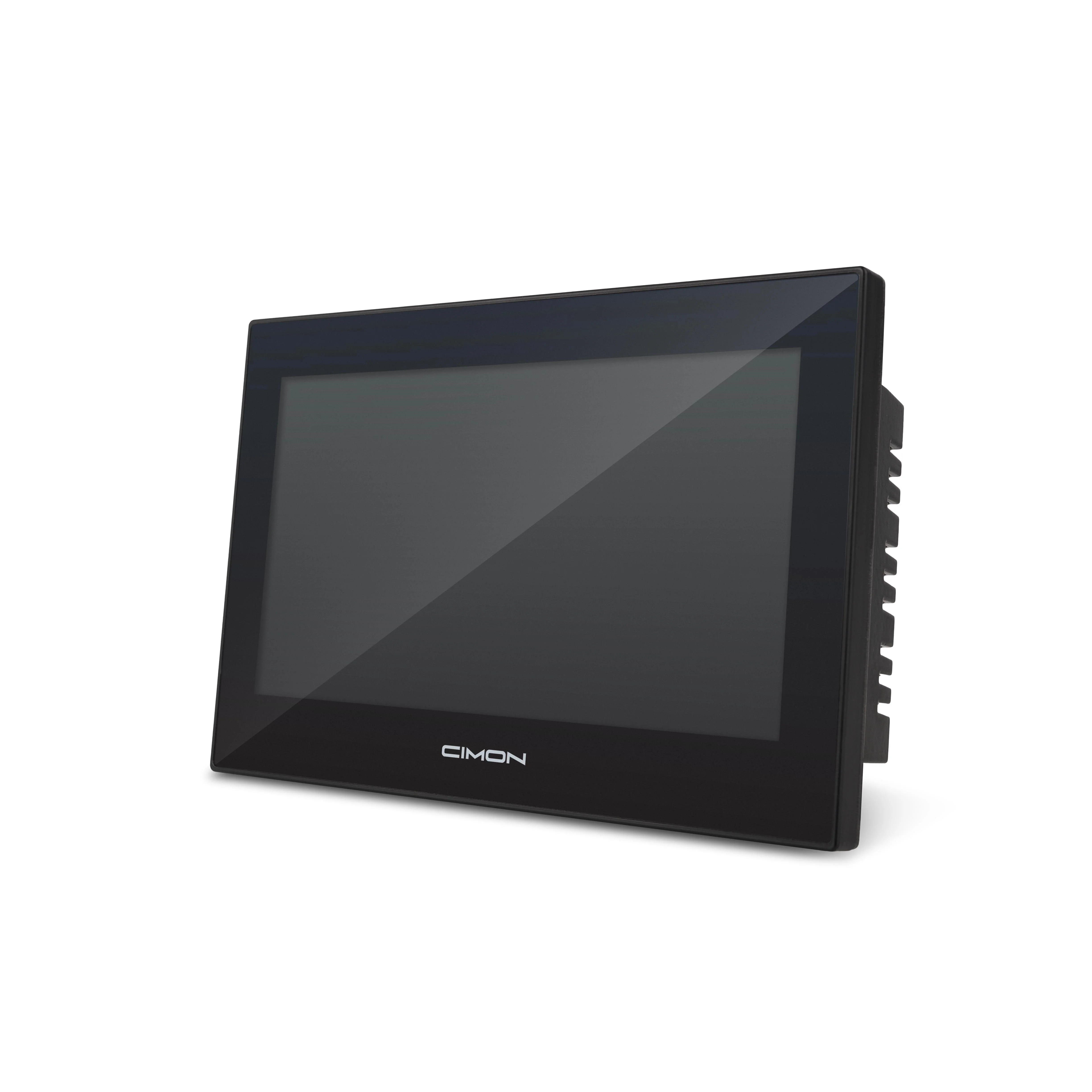

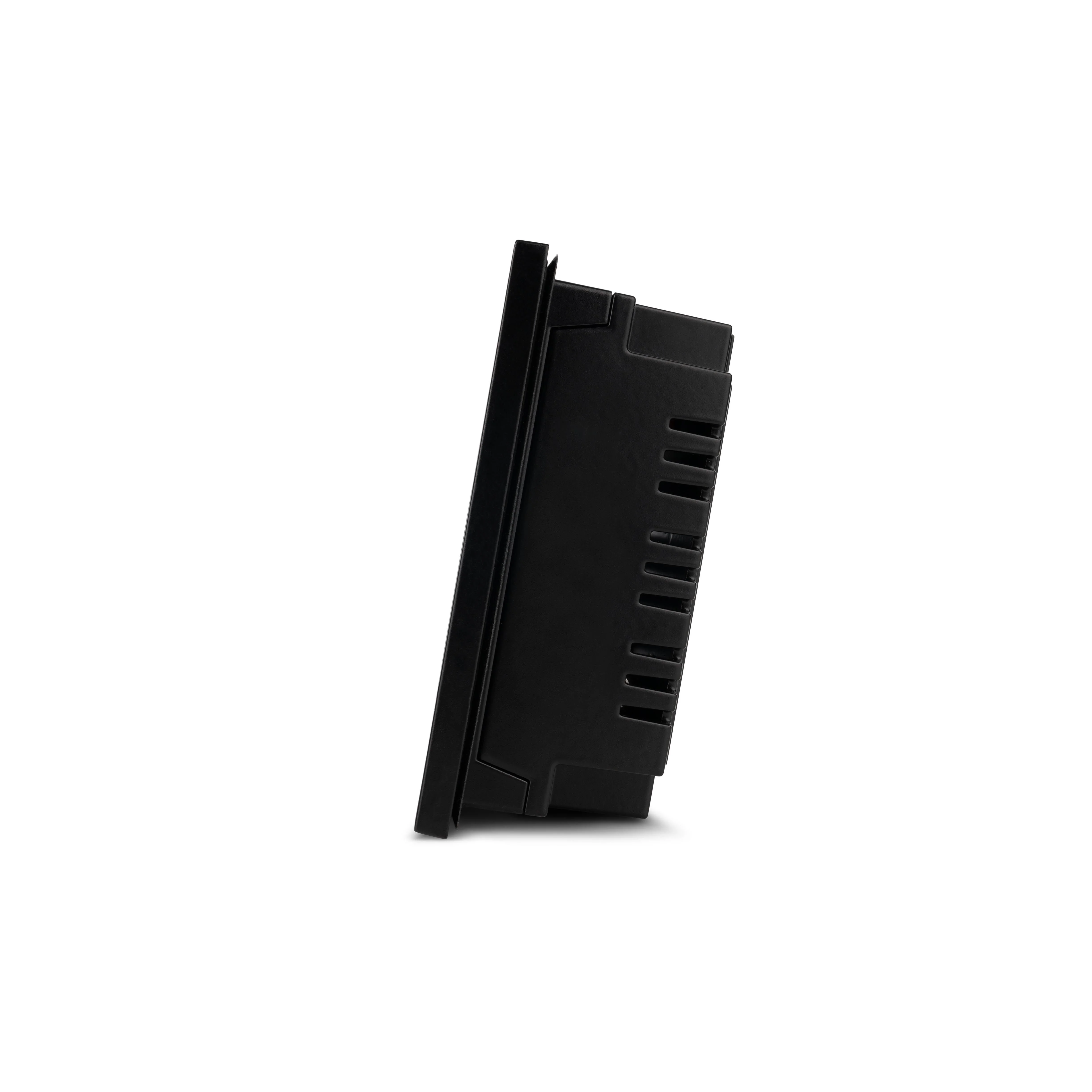

CM-nXT07-D - 7 Inch nXT Xpanel Extreme HMI
7-inch capacitive multi-touch display
IP68 front protection rating
Operating temperature -20°C to +65°C
Price
Available on Request
Expert technical support
Fast delivery available
Certifications: UL, CE, IP68, NEMA
Trusted by Hundreds of Companies Globally
Technical Specifications at a Glance
Comprehensive technical details for the CM-nXT07-D industrial HMI system specifications and performance characteristics.
Parameter
Specification
Display Size
7 inch TFT Color LCD
Resolution
WVGA 800 x 480 pixels
Touch Technology
Capacitive 5-point multi-touch
Luminance
1,000 cd/m²
Memory
1 GB DDR3 RAM, 8 GB eMMC
Power Supply
24 VDC Class 2, 9W consumption
Operating Temperature
-20°C to 65°C
Protection Rating
IP68 front, IP20 rear
Connectivity
2x Ethernet, RS-422/485, RS-232, USB
Country of Origin
🇺🇸
United States
Engineered for Industrial Excellence
Experience superior performance with advanced features designed for demanding industrial environments and critical automation applications.
High-Resolution Display
Crystal-clear 800x480 WVGA resolution with 1,000 cd/m² luminance ensures excellent visibility in all lighting conditions, from dark control rooms to bright industrial environments.
Multi-Touch Interface
Advanced capacitive 5-point multi-touch technology provides responsive and intuitive operation, supporting complex gestures and multiple simultaneous inputs for enhanced user experience.
Extreme Environmental Protection
IP68 front protection rating and NEMA Type 4X compliance ensure reliable operation in harsh industrial conditions with dust, moisture, and chemical resistance.
Wide Temperature Range
Operates reliably from -20°C to +65°C, making it suitable for extreme temperature applications including cold storage, outdoor installations, and high-heat manufacturing environments.
Versatile Connectivity
Dual Ethernet ports, serial communication options, and USB connectivity provide flexible integration with existing industrial networks and automation systems.
Robust Performance
1GB DDR3 RAM and 8GB eMMC storage with embedded Linux OS delivers fast, reliable performance for complex industrial applications and real-time data processing.
Frequently Asked Questions
What certifications does this HMI have for hazardous environments?
The unit is UL 121201 certified for hazardous locations and meets NEMA Type 4X and 12 standards. It also complies with CE electromagnetic compatibility directives and FCC regulations, ensuring safe operation in challenging industrial environments.
How much memory is available for user applications and projects?
The system provides 250 MB dedicated project memory and 4 GB user memory, along with 1 GB DDR3 RAM for operations. There's also an SD/MMC card slot for additional storage expansion as needed.
What connectivity options are available on this HMI panel?

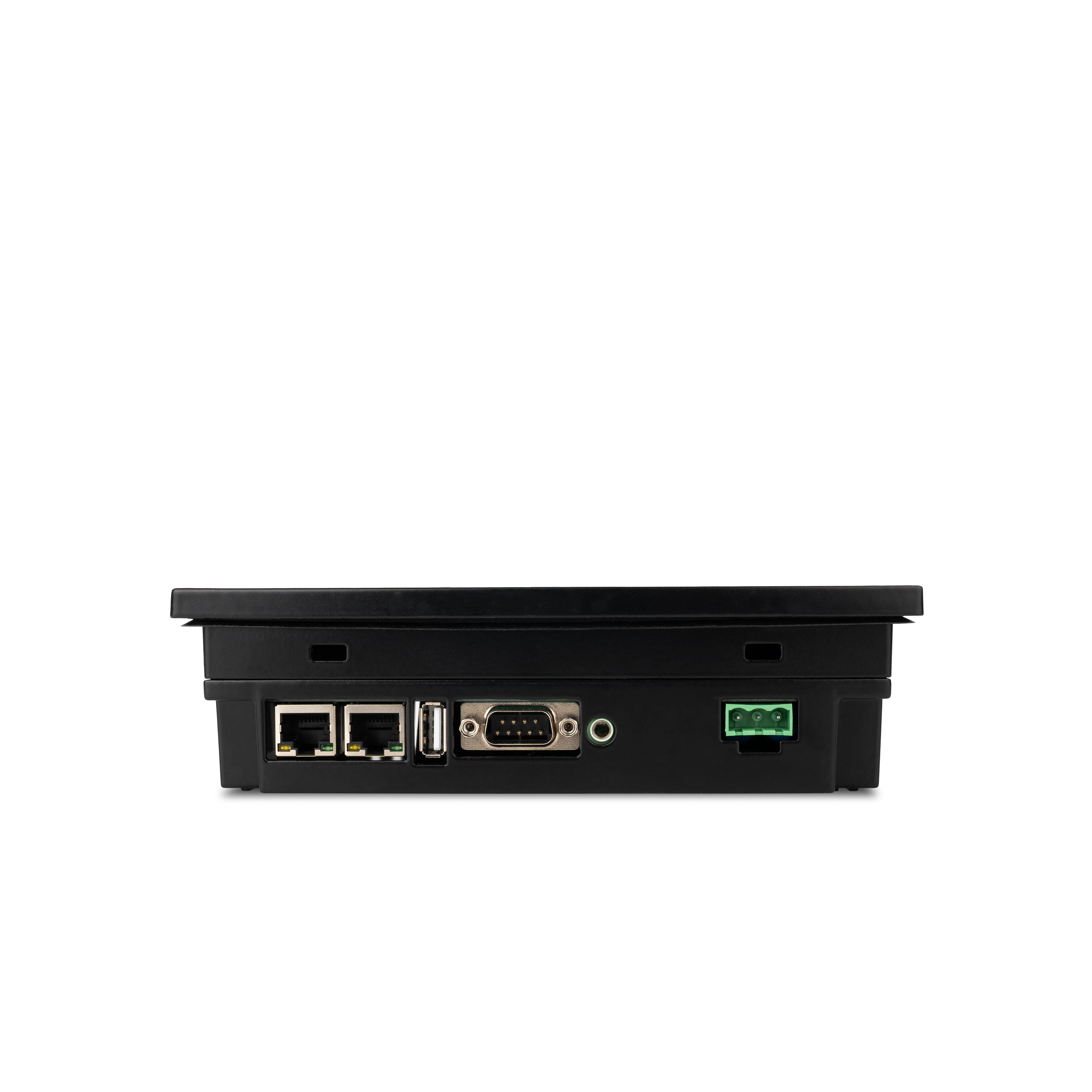

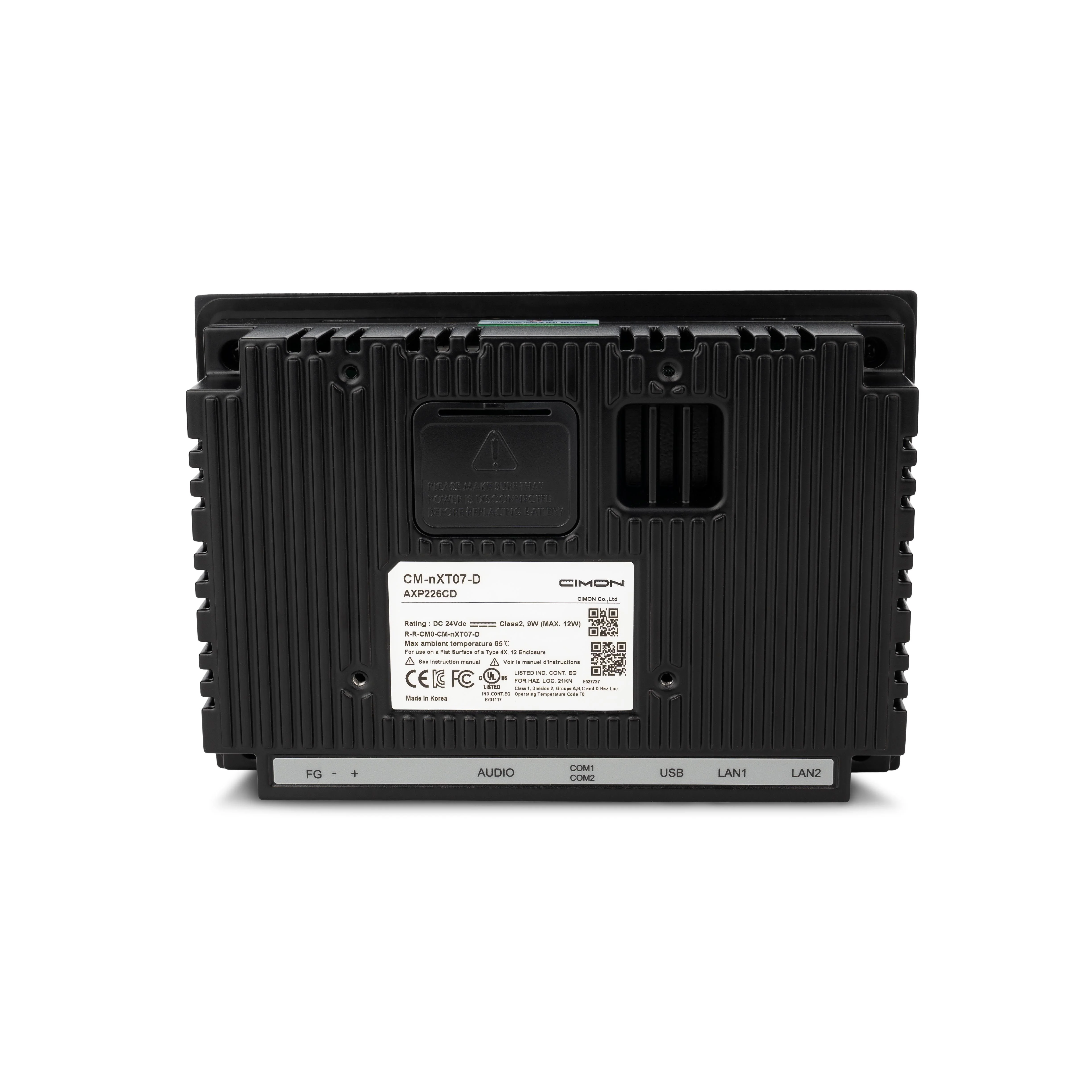

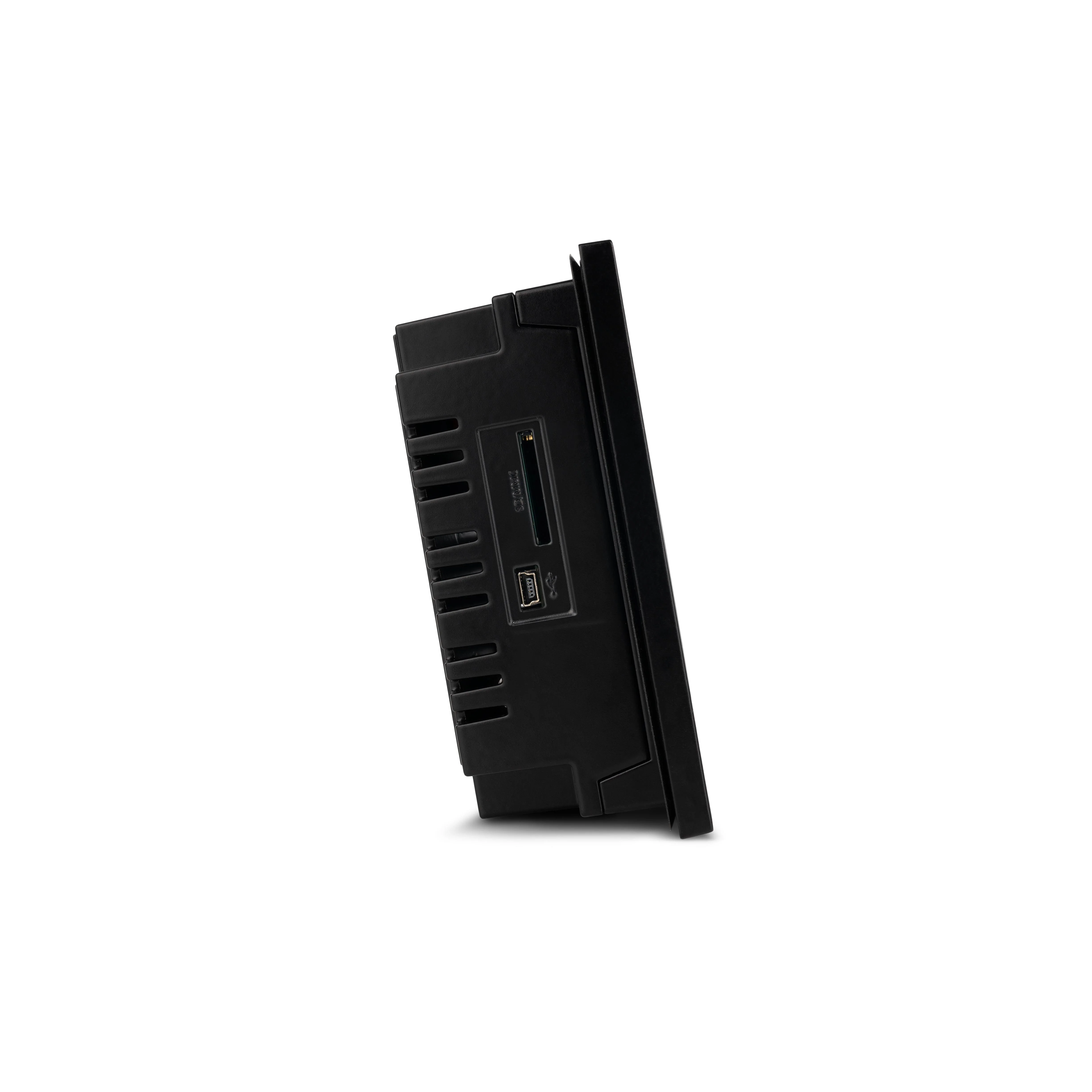

The HMI features dual 10/100/1000 Ethernet ports, RS-422/485 and RS-232 serial communication, USB Type A host port, USB mini-B tool port, SD card slot, and audio output for comprehensive connectivity options.
What is the expected lifespan of the display backlight?
The LED backlight is rated for 50,000 hours of operation, ensuring long-term reliability and minimal maintenance requirements. This translates to years of continuous operation in typical industrial applications.
