UL 61010-1 certified#1.0 UL 61010-1
ANSI C12.20 certified#1.0 ANSI C12.20
IEC 61557-12 certified#1.0 IEC 61557-12

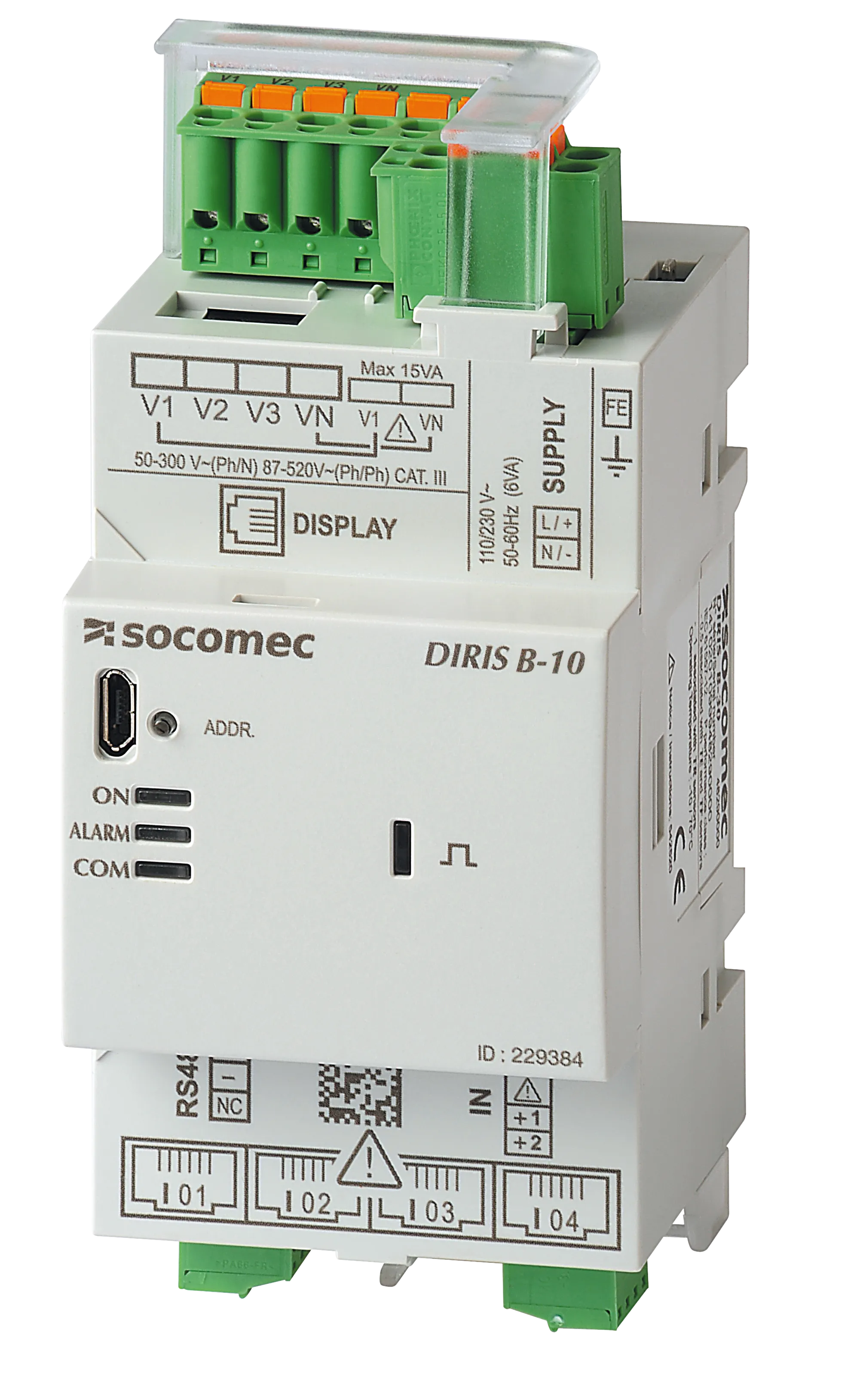

DIRIS B

DIN-rail Mounted Design
4 Independent Current Inputs
Modbus RTU Communication
ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Technical Support Available
Expert Installation Support
Certifications: UL 61010-1, ANSI C12.20, IEC 61557-12

Trusted by Hundreds of Companies Globally

Technical Specifications at a Glance

Complete technical details for DIRIS B power monitoring and measurement device with accuracy and compatibility information.

Parameter
Specification
Accuracy Class
Class 0.2 according to ANSI C12.20
System Accuracy
Class 0.5 (DIRIS B + sensors) from 2% to 120%
Communication
Modbus RTU via RS485
Current Inputs
4 independent RJ12 inputs
Digital Inputs
2 native digital inputs
Mounting
DIN-rail mounted
Sensor Compatibility (TE)
5-2000A
Sensor Compatibility (TR/iTR)
25-600A
Sensor Compatibility (TF)
100-6000A
Country of Origin
🇫🇷 France

Engineered for Precision Monitoring

Advanced power monitoring capabilities with unmatched accuracy and reliability for industrial electrical installations.

Plug & Play Installation

Color-coded RJ12 cables and automatic sensor detection ensure quick, error-free installation with minimal downtime and configuration effort.

High Accuracy Monitoring

Class 0.2 accuracy meets ANSI C12.20 standards, providing precise measurements for critical power monitoring and analysis applications.

Multi-Circuit Capability

Four independent current inputs allow simultaneous monitoring of multiple circuits, reducing equipment needs and installation complexity.

Safe Disconnection

Low-voltage mV current sensors can be safely disconnected under load, enabling maintenance without system shutdown or safety risks.

Modbus RTU Integration

Standard Modbus RTU communication enables seamless integration with building management systems and remote monitoring applications.

Versatile Connectivity

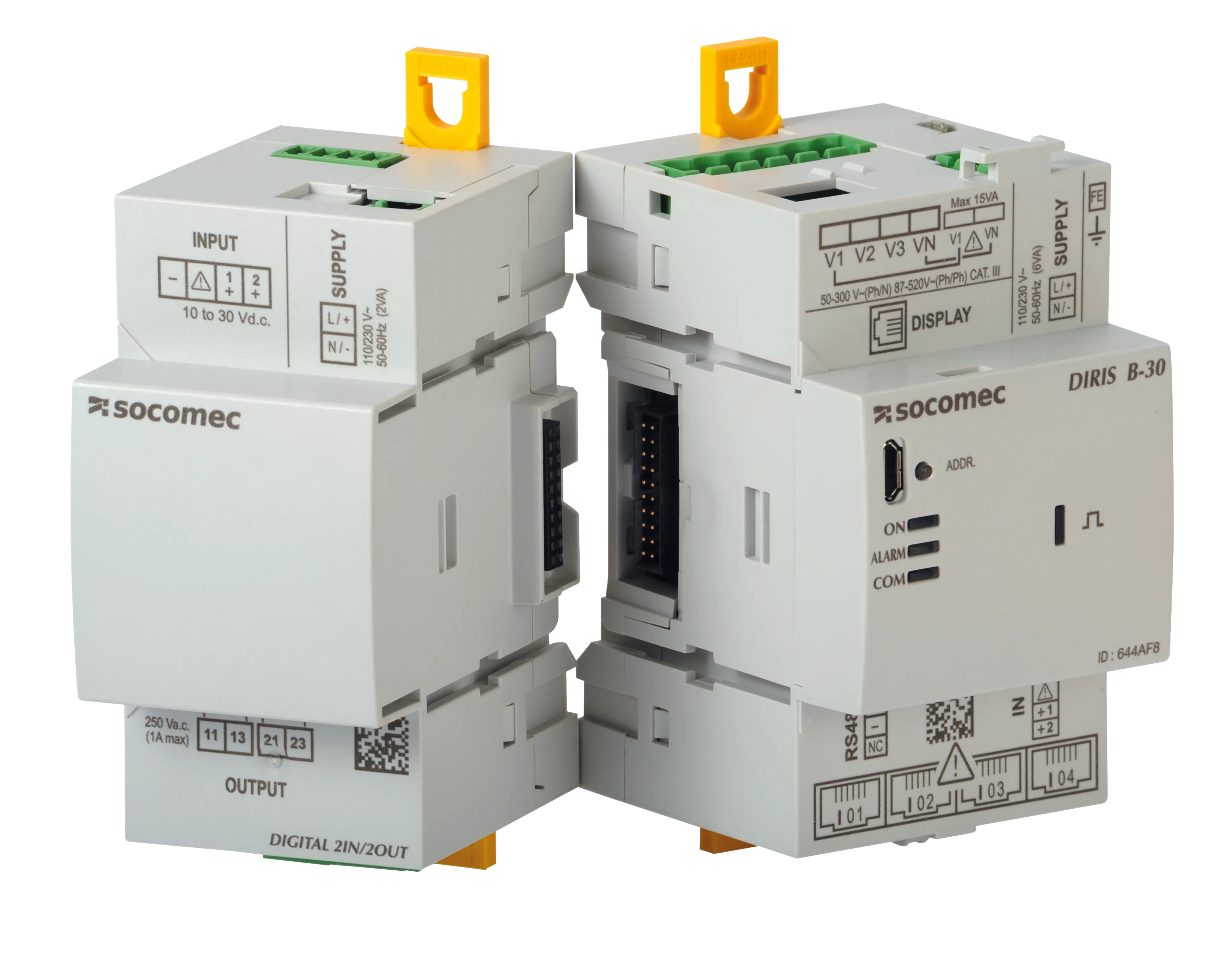

Compatible with DIRIS D-30 screens, optional modules, and DIRIS Digiware gateways for flexible system configuration and expansion.

Frequently Asked Questions

What current sensor types are compatible with DIRIS B?
DIRIS B is compatible with TE/TR/iTR/TF smart current sensors. TE sensors handle 5-2000A, TR/iTR sensors handle 25-600A, and TF sensors handle 100-6000A ranges with automatic detection and rating identification.
How many circuits can DIRIS B monitor simultaneously?
DIRIS B can monitor up to 4 independent circuits simultaneously using its 4 RJ12 current inputs. This makes it ideal for multi-circuit monitoring applications and three-phase circuit monitoring with neutral measurement.
What communication protocol does DIRIS B use?
DIRIS B uses Modbus RTU serial communication via RS485, enabling integration with building management systems and remote monitoring through DIRIS Digiware gateway systems.
Can current sensors be disconnected safely during operation?
Yes, DIRIS B uses low-voltage mV current sensors that can be disconnected safely under load without causing system shutdown or creating safety hazards during maintenance operations.
What accuracy class does DIRIS B provide?
DIRIS B provides Class 0.2 accuracy according to ANSI C12.20 standards. When combined with TE/iTR/TF current sensors, the system achieves Class 0.5 accuracy from 2% to 120% of rated current.

Versatile Applications for Power Monitoring

DIRIS B serves diverse industrial and commercial applications requiring precise power monitoring and electrical system analysis.

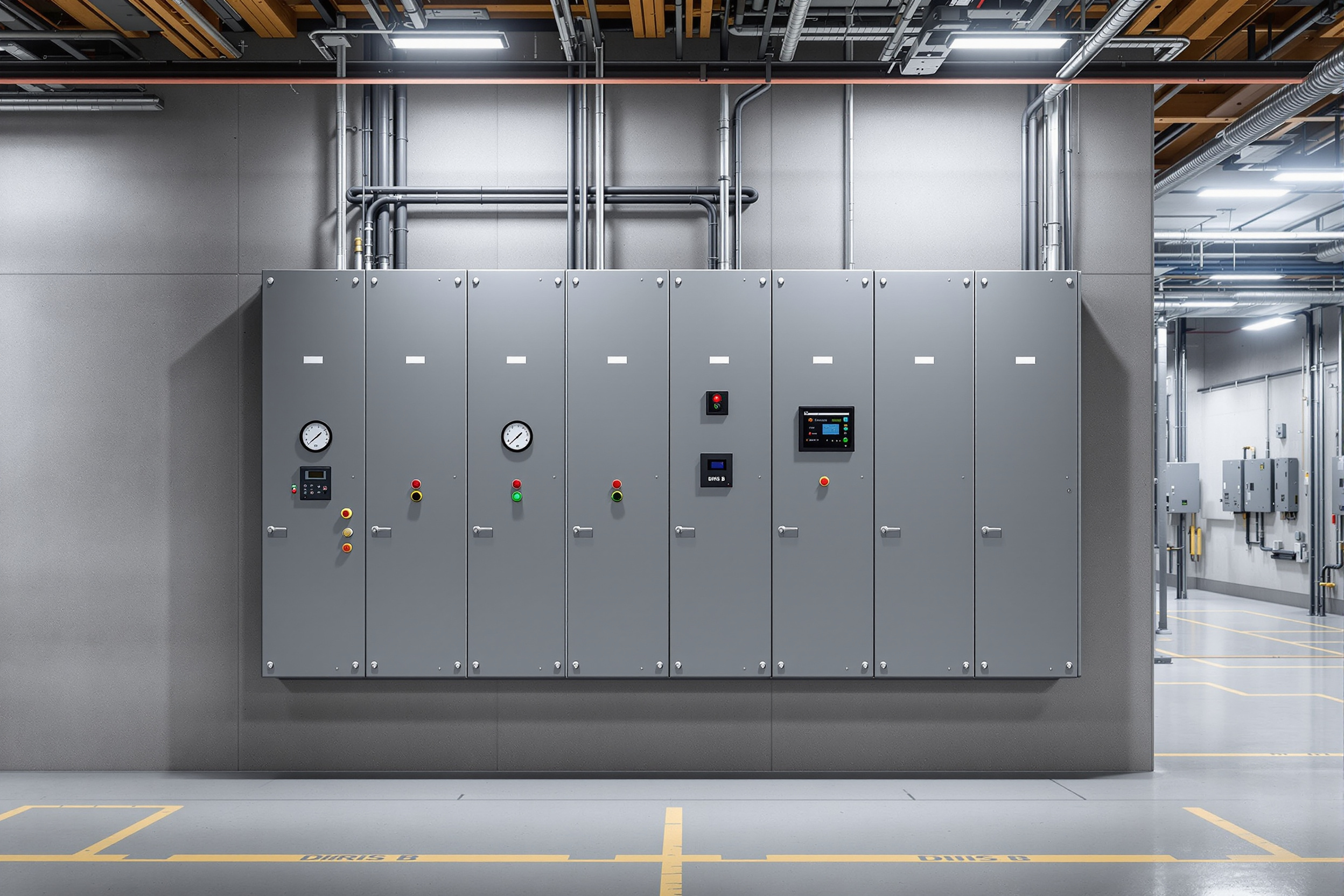

Industrial facility power monitoring system with electrical panels and DIRIS B monitoring device#1.5

Industrial Manufacturing

Comprehensive power monitoring for manufacturing plants requiring precise electrical system analysis and energy management.

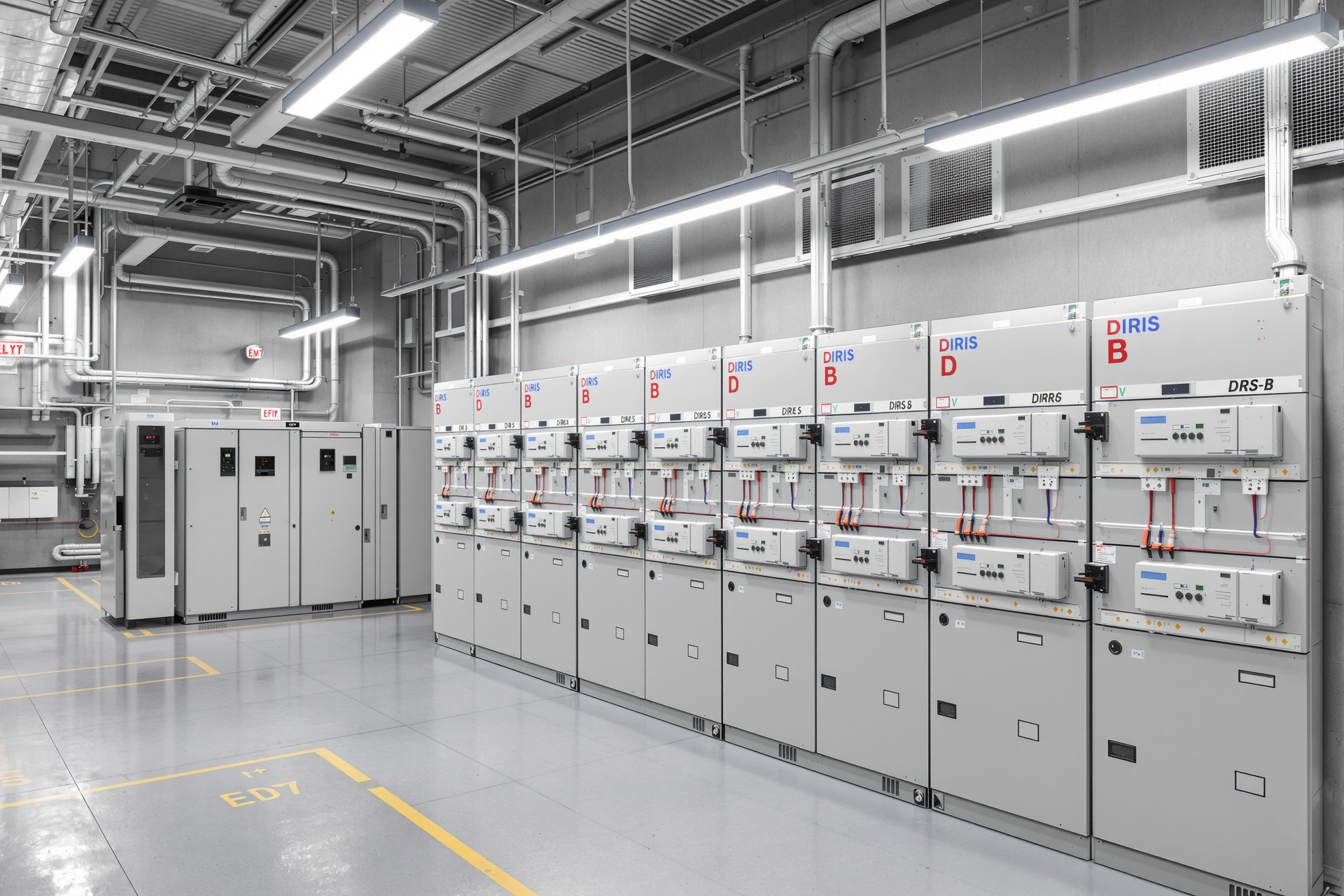

Commercial building electrical systems with power monitoring infrastructure and DIRIS B installation#1.5

Commercial Buildings

Building management system integration for commercial facilities requiring multi-circuit monitoring and energy efficiency tracking.

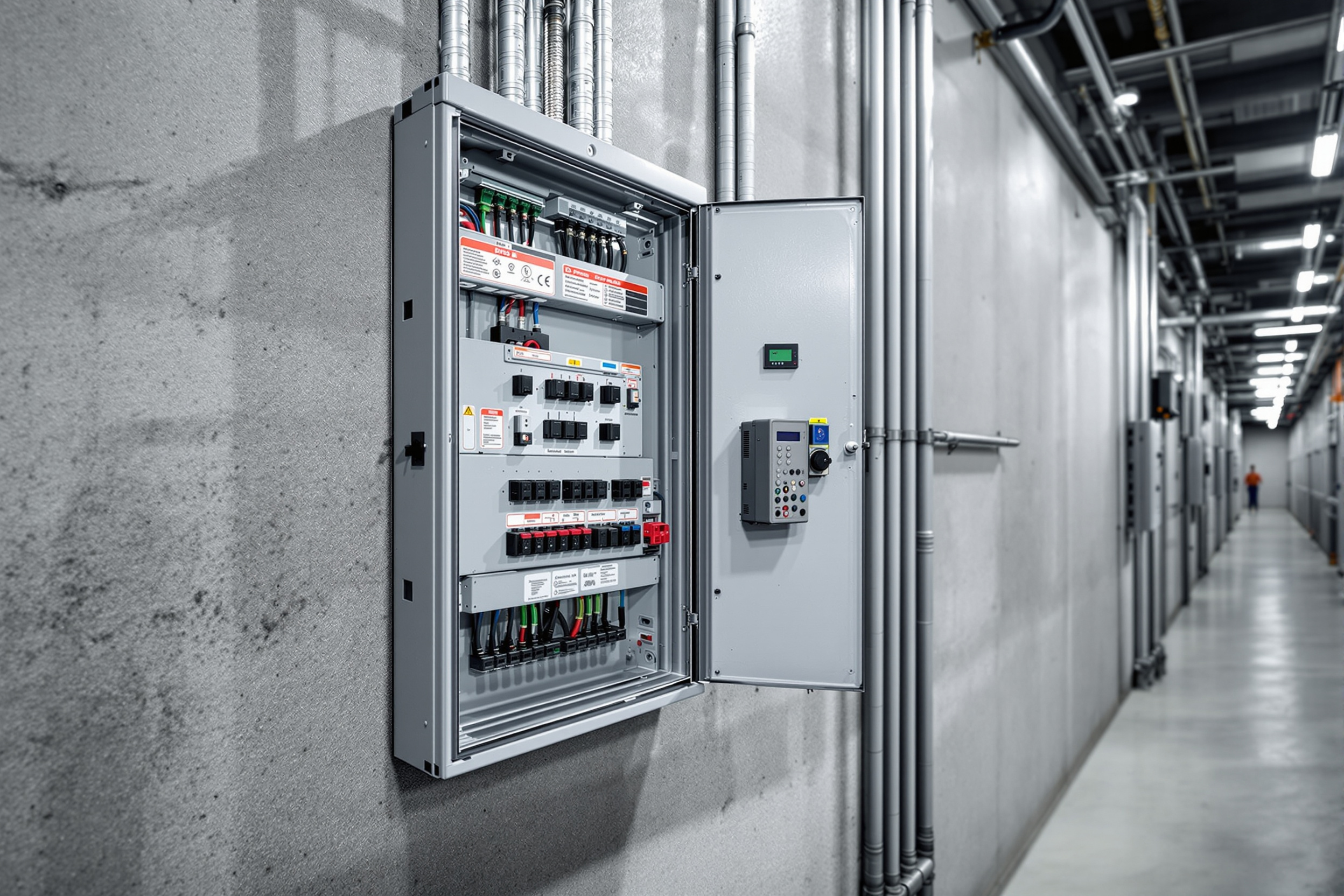

Electrical panel and control systems with DIRIS B power monitoring device for system integration#1.5

System Integration

Seamless integration with existing electrical panels and control systems through Modbus RTU communication for comprehensive monitoring.

What Our Clients Say About DIRIS B

Trusted by engineers and facility managers worldwide for reliable power monitoring solutions.

Installation was incredibly straightforward

The plug-and-play design with color-coded cables made installation quick and error-free. Automatic sensor detection saved us significant setup time.

MJ

Mike Johnson

Electrical Engineer, ABC Manufacturing

Exceptional accuracy and reliability

The Class 0.2 accuracy has been crucial for our energy analysis. Modbus integration with our building management system works flawlessly.

SC

Sarah Chen

Facility Manager, Tech Solutions Inc

Multi-circuit monitoring is a game changer

Being able to monitor four independent circuits simultaneously has simplified our electrical system management and reduced equipment costs.

DR

David Rodriguez

Project Manager, Industrial Systems Corp

Perfect for remote monitoring needs

Integration with DIRIS Digiware gateway enables excellent remote monitoring capabilities. The system provides reliable data for our analysis needs.

LW

Lisa Wang

Systems Engineer, Power Analytics Ltd

Safe maintenance is a major advantage

The ability to safely disconnect sensors under load has eliminated downtime during maintenance. This feature alone justifies the investment.

JM

James Miller

Maintenance Supervisor, Global Industries

Versatile connectivity options impressed us

The compatibility with various DIRIS accessories and gateways provides excellent flexibility for future system expansion and upgrades.

AT

Amanda Torres

Senior Technician, Energy Solutions Group
