Technical Specifications Overview

Complete specifications for all EASY BELTURING ELEMATIC cable tie configurations

SPECIFICATION
VALUE
Width (8.8x180)
8.8 mm
Length (8.8x180)
180 mm
Bundle Diameter (8.8x180)
38 mm
Tensile Strength (8.8x180)
39.78 kg
Breaking Force (8.8x180)
390 N
Head Type (8.8x180)
Single head
Color
Black
Pack Size
100 pieces
Working Temperature
Down to -30ยฐC
Country of Origin
๐Ÿ‡ฎ๐Ÿ‡น Italy

Engineered for Superior Performance

Advanced cable tie technology designed for demanding industrial applications with tool-free installation

UV Protection

UV-resistant polymer construction provides exceptional durability in outdoor exposure conditions, maintaining strength and integrity over extended periods in harsh environments.

Tool-Free Installation

Easy insertion with low effort enables maximum installation speed and significant time savings, ideal for overhead lines or working in difficult positions without requiring any tools.

External Serrated Design

External rack and parallel locking system offers smooth surface to fastened cables avoiding damage to insulation while providing secure and reliable cable management.

Cold Weather Operation

Performs reliably even at very low temperatures down to -30ยฐC, ensuring consistent installation capability across diverse environmental conditions and climates.

Temporary Locking

Temporary locking position allows re-opening of ties for addition or removal of cables, providing flexibility during installation and maintenance operations.

Certified Quality

CE marked and DNV GL certified with halogen-free construction ensuring compliance with international standards and environmental regulations for professional applications.

Frequently Asked Questions

What are the available sizes for EASY BELTURING cable ties?
EASY BELTURING is available in three standard sizes: 8.8x180mm (single head, 390N), 8.8x270mm (double head, 560N), and 8.8x360mm (double head, 560N) to accommodate various bundle diameters and application requirements.
Can these cable ties be used outdoors?
Yes, EASY BELTURING cable ties are manufactured with UV-resistant polymer specifically designed for outdoor applications. They maintain high resistance to ultraviolet radiation and perform reliably in outdoor exposure conditions.
Do I need special tools for installation?
No tools are required. EASY BELTURING features tool-free installation with easy insertion and low effort design, making it ideal for overhead lines or working in difficult positions where tool access is limited.
What certifications do these cable ties have?
EASY BELTURING cable ties are CE marked, DNV GL certified, and halogen-free certified, ensuring compliance with European and international standards for electrical and marine applications.
Can these ties be reopened after installation?
Yes, EASY BELTURING features a temporary locking position that allows re-opening of the ties for addition or removal of cables, providing flexibility during installation and future maintenance operations.

Versatile Applications

Engineered for diverse industrial applications requiring reliable cable management solutions

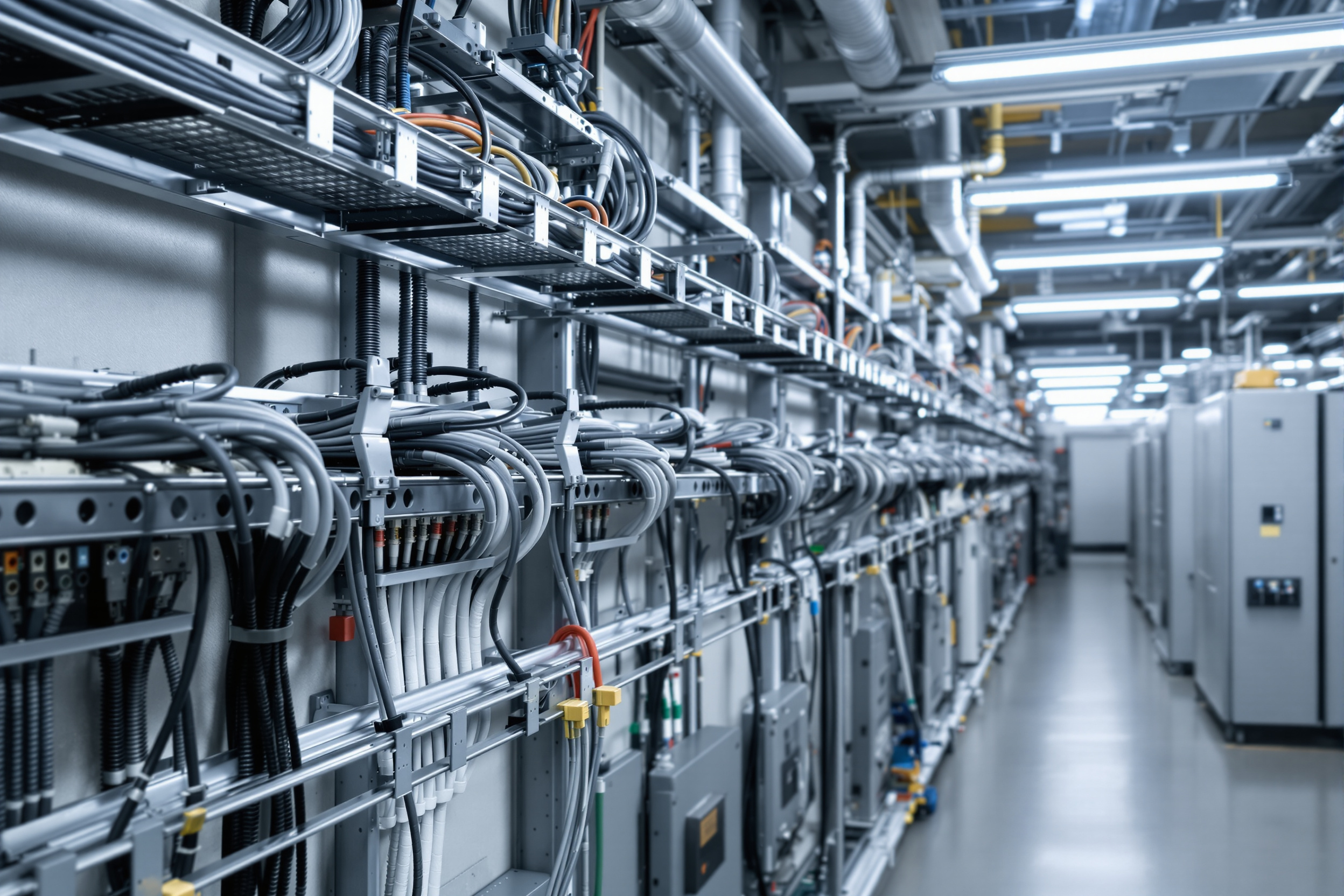

Electrical systems cable management#1.5

Electrical Systems

Secure cable management in electrical panels, control systems, and distribution networks with tool-free installation

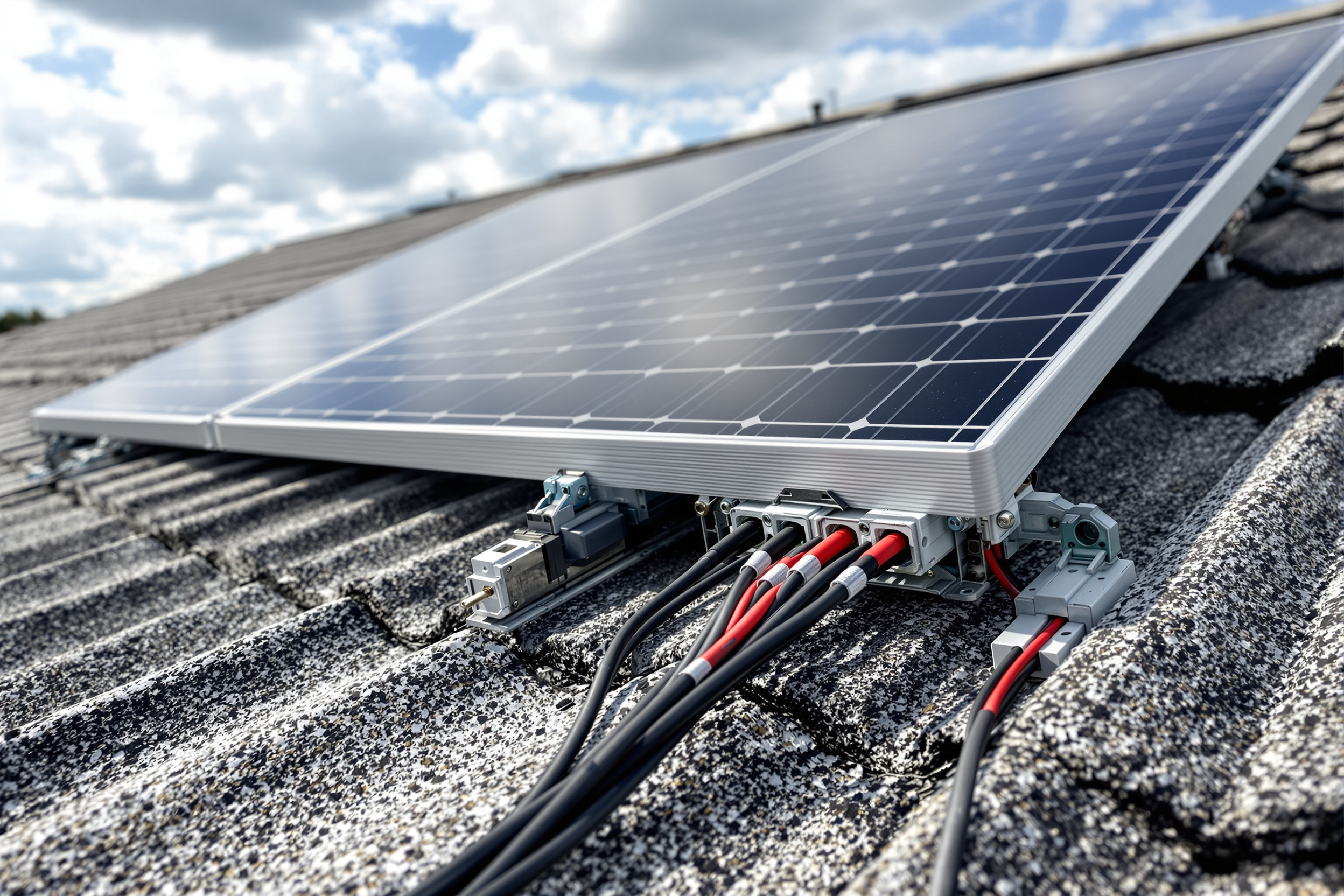

Photovoltaic systems solar panel wiring#1.5

Photovoltaic Systems

UV-resistant cable ties ideal for solar installations with outdoor exposure and long-term durability requirements

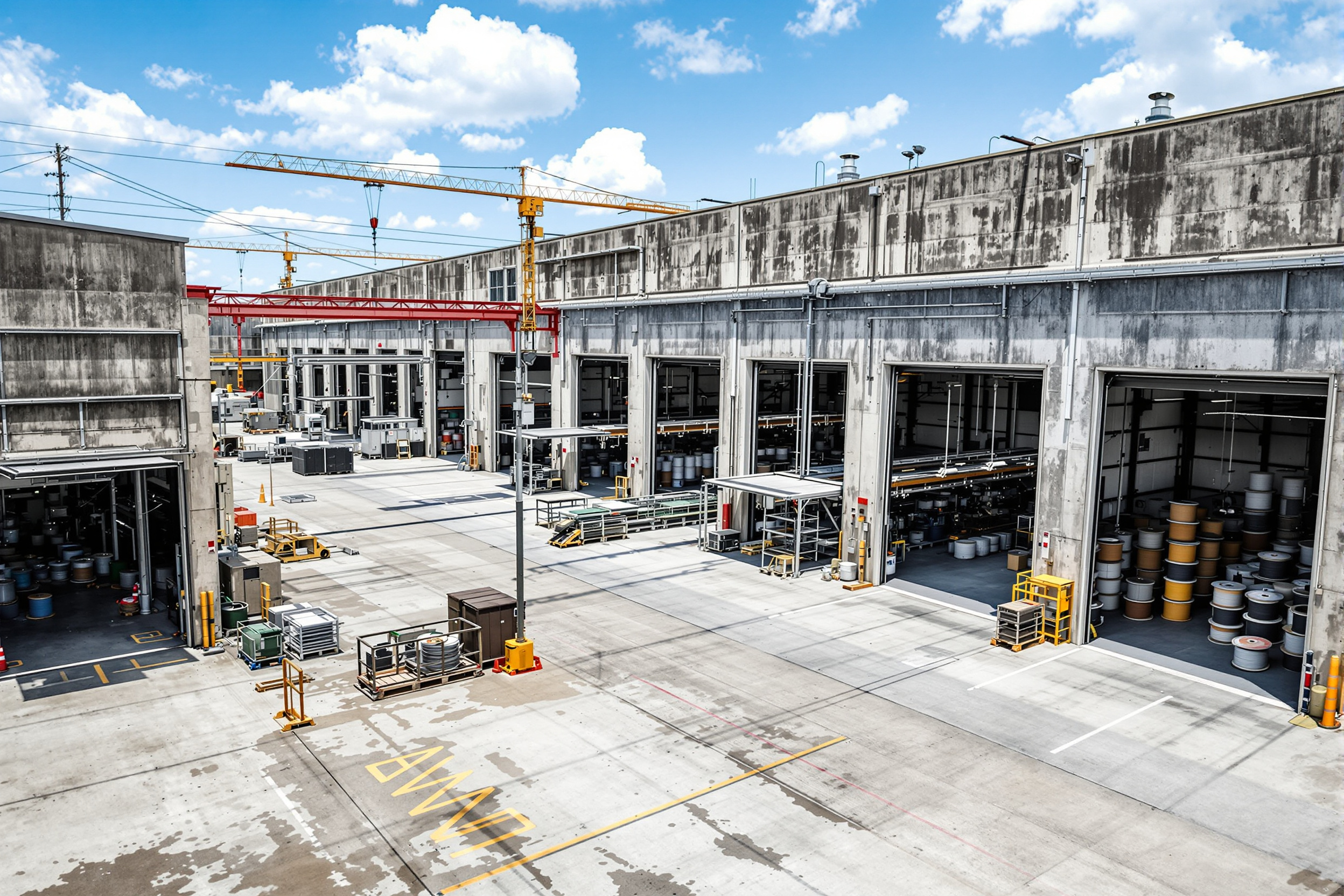

Industrial wiring manufacturing facilities#1.5

Industrial Wiring

Reliable cable bundling in manufacturing plants and industrial facilities with temporary locking for maintenance

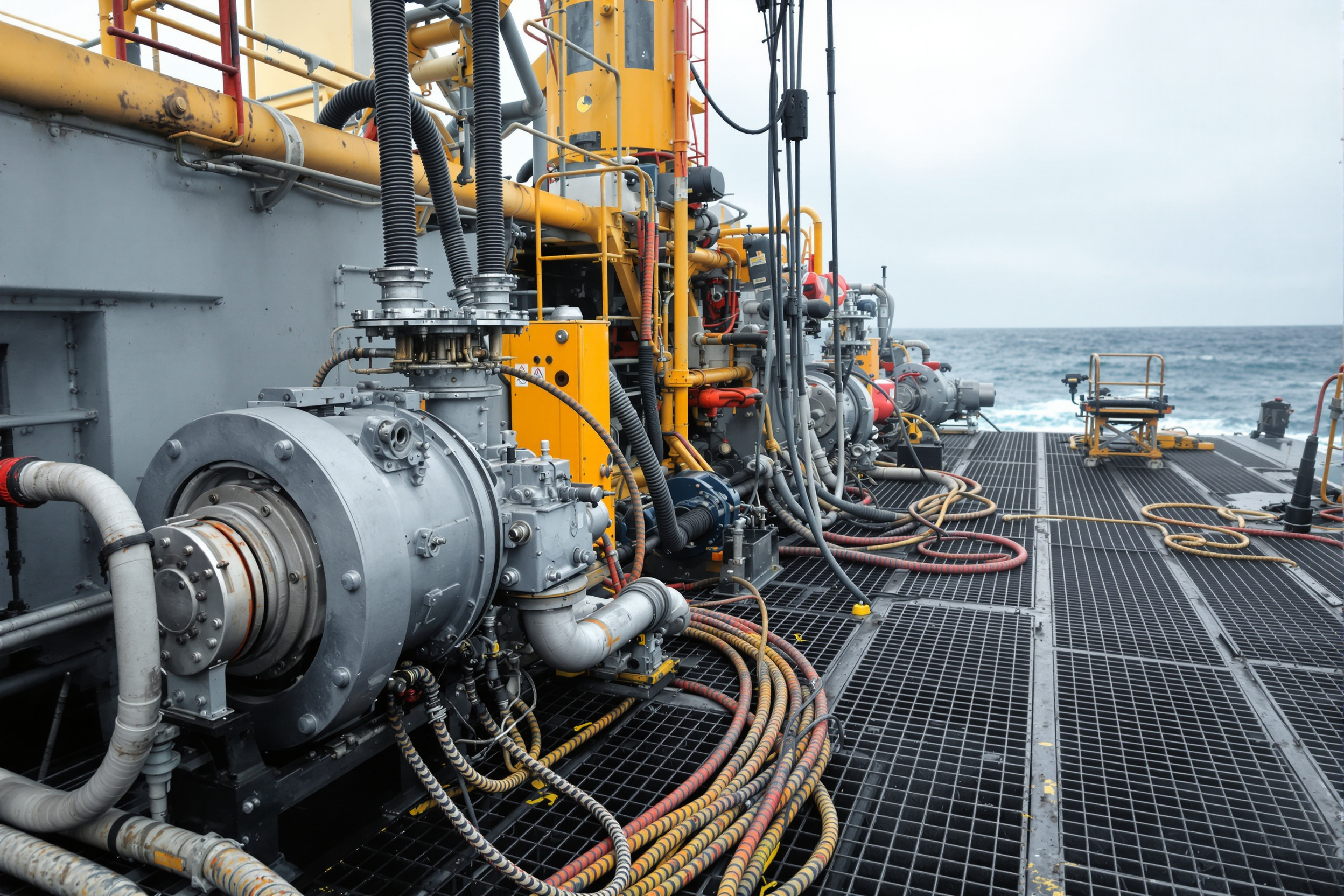

Heavy-duty applications marine offshore#1.5

Heavy-Duty Applications

High tensile strength performance for demanding environments including marine and offshore installations

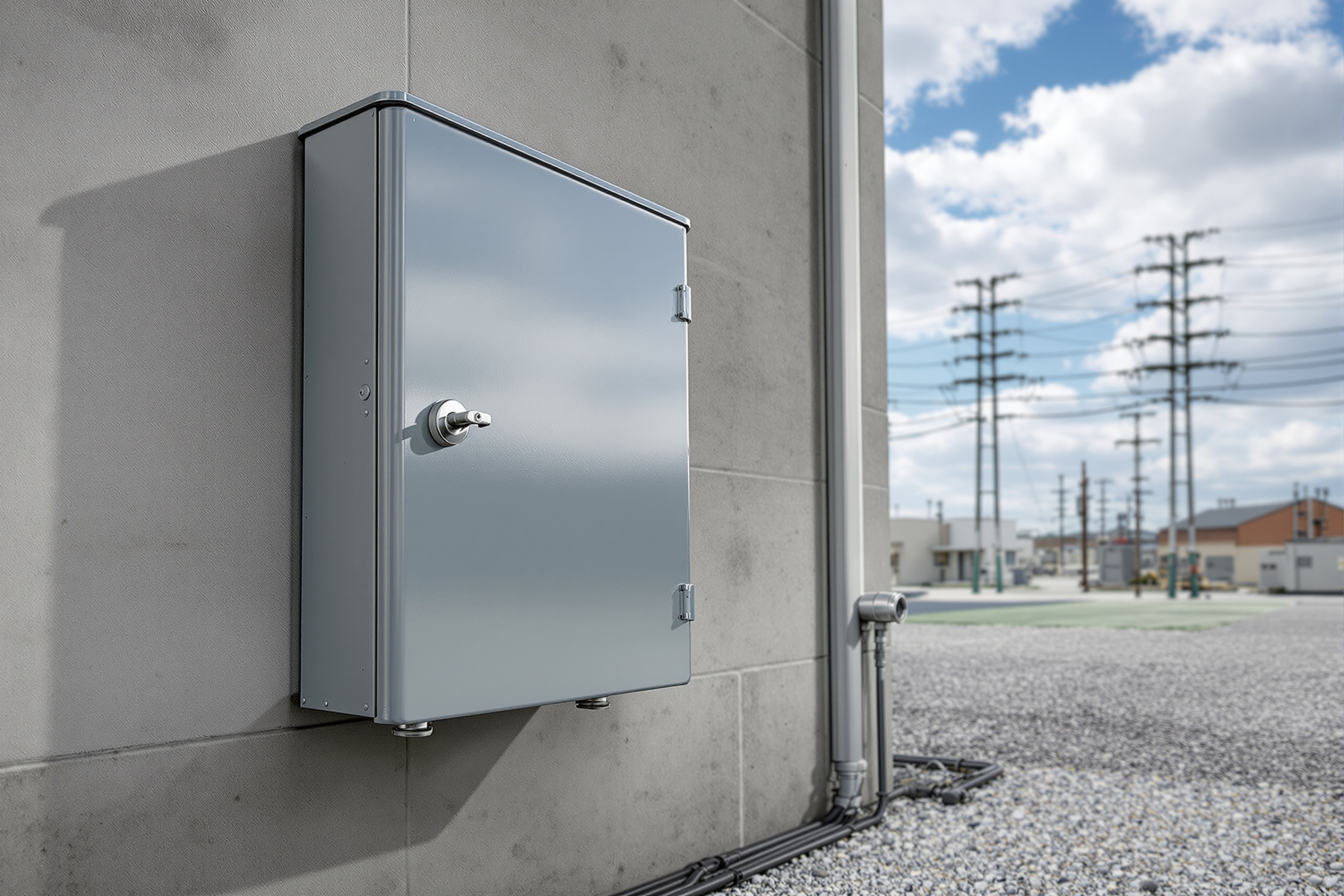

External installations outdoor weather protection#1.5

External Installations

Weather-resistant performance for outdoor cable routing with low temperature operation down to -30ยฐC

What Our Clients Say

Trusted by electrical professionals and industrial engineers worldwide for reliable cable management solutions

Exceptional Tool-Free Installation

The EASY BELTURING ties have revolutionized our installation process. No tools needed and they work perfectly even in tight spaces. The UV resistance has proven excellent in outdoor applications.

Reliable Solar Installation Solution

For our photovoltaic installations, these cable ties are perfect. The UV resistance and ability to work in extreme temperatures makes them ideal for outdoor solar projects.

Perfect for Marine Applications

The DNV GL certification and halogen-free construction made these our go-to choice for marine installations. The temporary locking feature is incredibly useful for maintenance work.

Time-Saving Installation Process

These ties have reduced our installation time by 40%. The low effort insertion and ability to reopen for modifications has been a game-changer for our industrial projects.

Outstanding Cold Weather Performance

Working in harsh winter conditions, these ties perform flawlessly down to -30ยฐC. The external serrated design protects cable insulation while maintaining secure bundling.

Quality Certification Compliance

The CE marking and comprehensive certifications give us confidence in specification compliance. The multi-language technical documentation has been extremely helpful for our international projects.

Complete Cable Management Solutions

Explore our comprehensive range of professional cable management accessories and installation tools

ARROWHEAD CRADLE ELEMATIC

Polyamide 6.6 fixing cradle for ties up to 7.8mm width, designed to secure cables and pipes on different panels with natural color finish and 540N tensile strength for reliable mounting applications.

WALL PLUG BASE 5458 ELEMATIC

Polyamide anchoring base for cable ties, designed for fixing to different building materials and compatible with any cable tie up to 9mm wide for secure mounting and fastening applications.

IDENTIFICATION CABLE TIE EXTERNAL PLATE ELEMATIC

Polyamide 6.6 cable ties with identification tags positioned inside or outside cable bundles, featuring transversal, longitudinal or external identification plates that can be easily marked for cable identification.
