H2 Series Multi-Purpose Industrial Drives

Dual Rating Normal & Heavy Duty
Advanced V/Hz & Vector Control
Integrated Pump/Fan Software
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Expert Technical Support
Fast Delivery Available
Certifications: UL, CE, cUL

Trusted by Hundreds of Companies Globally

Technical Specifications at a Glance

Complete technical specifications for the H2 Series Multi-Purpose Industrial Drives including power ratings, control features, and electrical characteristics.

PARAMETER
SPECIFICATION
Power Rating 240V Normal Duty
7.5HP~125HP
Power Rating 240V Heavy Duty
0.5HP~100HP
Power Rating 480V Normal Duty
7.5HP~800HP
Power Rating 480V Heavy Duty
0.5HP~600HP
Protection Rating
IP20
Display Interface
LCD display/keypad
Standard Communication
RS-485 Modbus/RTU/BACnet/Metasys-N2
Optional Communication
Ethernet/IP, Modbus-TCP, Lonworks
Environmental Rating
Plenum rated
Country of Origin
🇺🇸 United States

Engineered for Industrial Excellence

Advanced motor control technology designed to maximize efficiency, reliability, and performance across diverse industrial applications.

Dual Rating System

Normal and heavy duty ratings provide flexibility for various load requirements, from standard operations to demanding industrial applications with enhanced torque capabilities.

Advanced Vector Control

V/Hz and sensorless vector control with slip compensation delivers precise motor control, improved torque response, and enhanced energy efficiency across the entire speed range.

Specialized Pump/Fan Software

Integrated H2 Series software includes PID control with sleep/wake functions, multi-motor control, fire mode inputs, and energy-saving operations for optimized pumping and fan applications.

Comprehensive Protection

Built-in motor overload protection, kinetic energy buffering, regen avoidance, and deceleration brake control ensure reliable operation and extend equipment life in challenging environments.

Multiple Communication Options

Standard RS-485 Modbus/RTU/BACnet connectivity with optional Ethernet/IP and Modbus-TCP cards enable seamless integration into existing automation systems and remote monitoring capabilities.

Easy Installation & Commissioning

Quick start menu, auto tuning, macro selection for pump/fan applications, and WinDRIVE PC software simplify setup, configuration, and ongoing maintenance operations.

Frequently Asked Questions

What's the difference between normal duty and heavy duty ratings?
Normal duty rating is designed for standard industrial applications with typical load patterns, while heavy duty rating provides enhanced torque capabilities for demanding applications with higher starting torques, frequent starts/stops, or continuous heavy loads.
Can the H2 Series work with existing automation systems?
Yes, the H2 Series comes standard with RS-485 Modbus/RTU/BACnet/Metasys-N2 communication and offers optional cards for Ethernet/IP, Modbus-TCP, and Lonworks protocols for seamless integration into most industrial automation systems.
What industries are best suited for the H2 Series drives?
The H2 Series is ideal for water/wastewater treatment, irrigation systems, HVAC applications, industrial pumping and fan applications, compressor systems, and general industrial drive applications requiring precise motor control.
Does the drive include built-in motor protection features?
Yes, the H2 Series includes comprehensive motor protection with overload protection, kinetic energy buffering (KEB), ride-through capabilities, regen avoidance, and deceleration brake control to protect both the drive and connected motor equipment.
What software tools are available for commissioning and monitoring?
The H2 Series includes WinDRIVE PC-based software for commissioning, monitoring, and parameter adjustment. The drive also features a built-in LCD display/keypad with quick start menu and auto-tuning capabilities for simplified setup.

Versatile Solutions Across Multiple Industries

From water treatment to manufacturing, the H2 Series drives deliver reliable performance across diverse industrial applications with specialized control features.

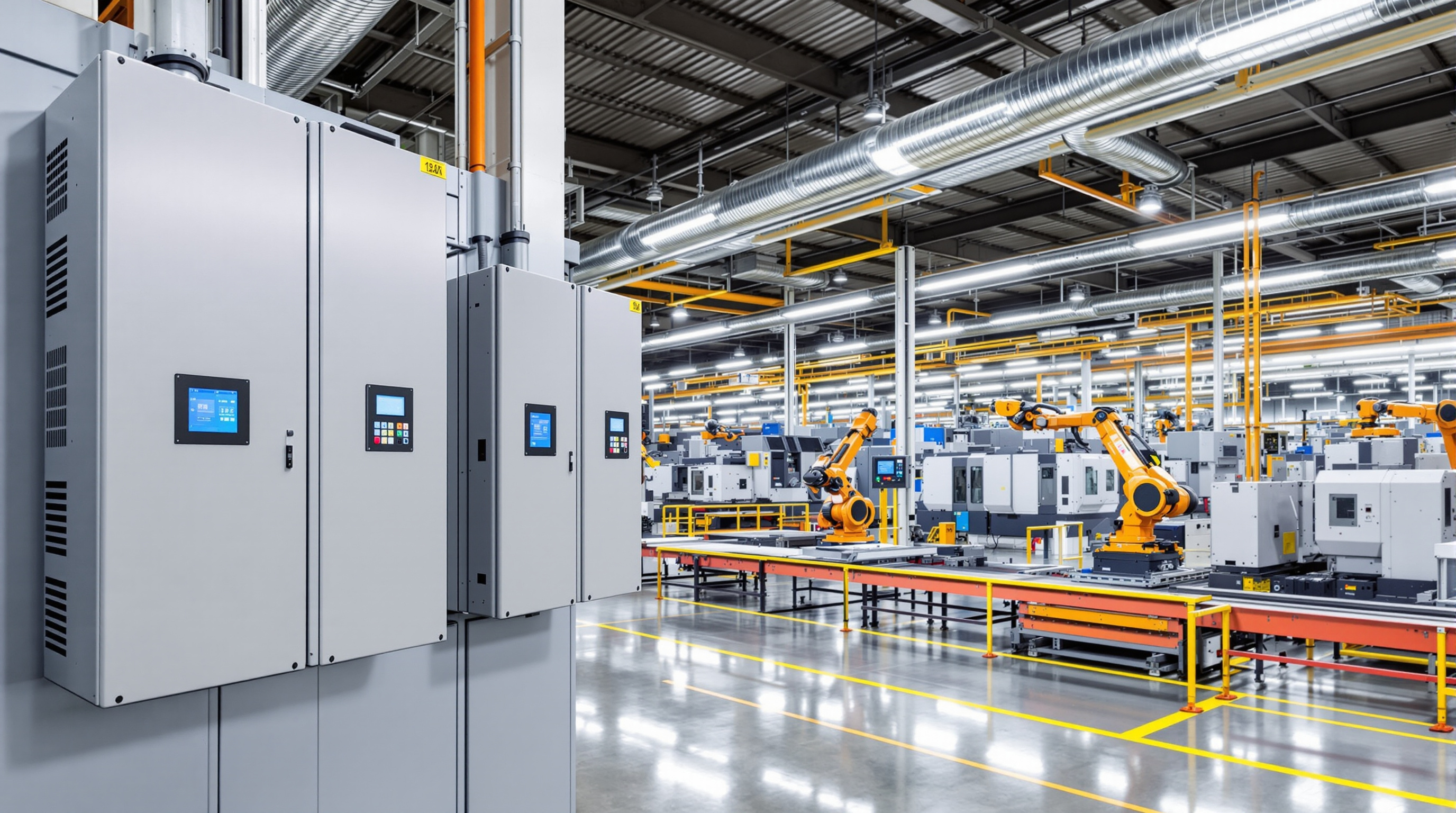

Industrial manufacturing facility with motor drives controlling various equipment and machinery#1.9

Industrial Applications

Precision motor control for manufacturing equipment, conveyor systems, and industrial machinery requiring reliable variable speed operation.

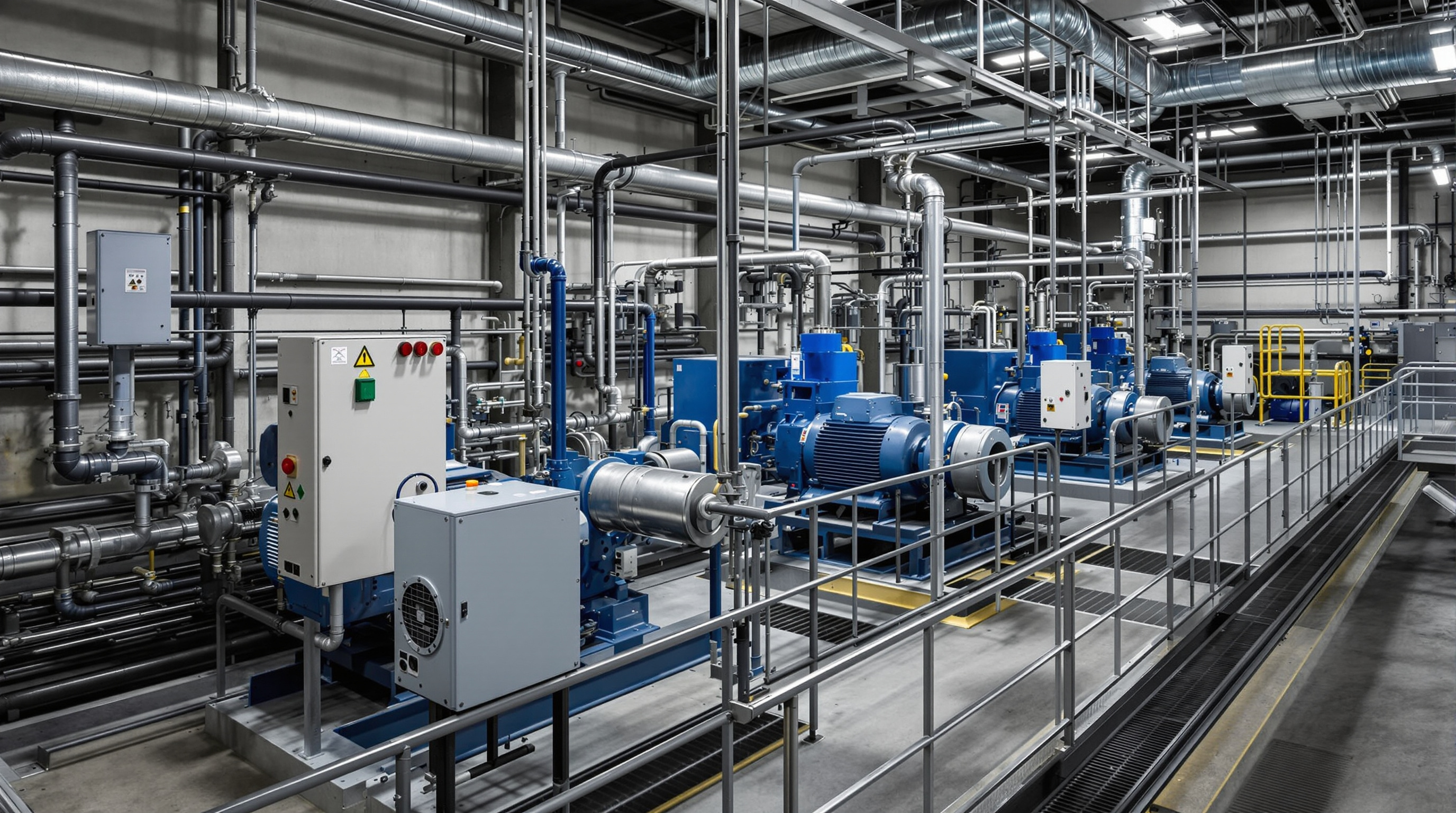

Water treatment plant with pumps and fan systems controlled by variable frequency drives#1.9

Water & Wastewater

Optimized pump control with energy-saving features, PID control, and specialized pump software for municipal and industrial water systems.

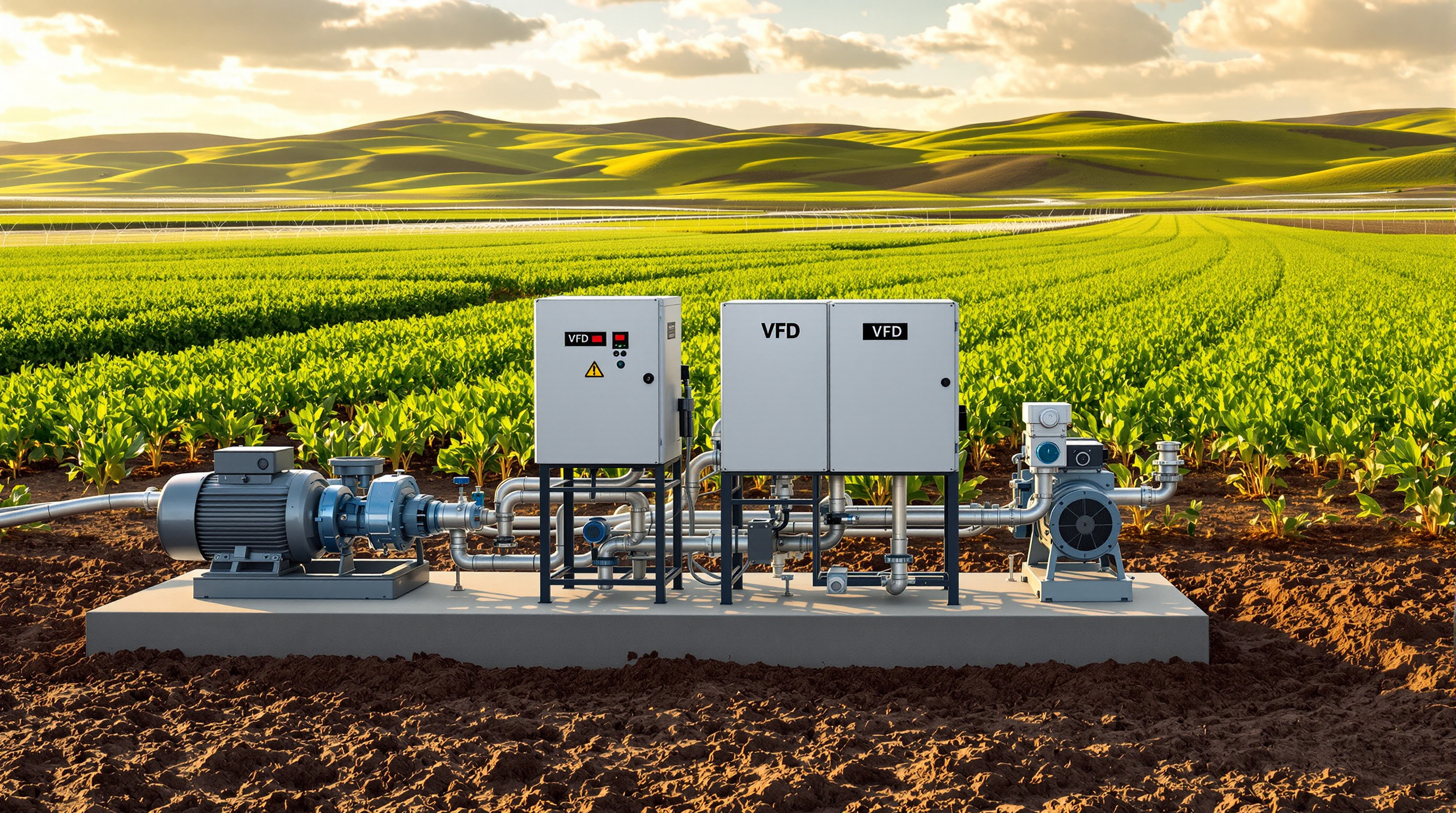

Agricultural irrigation system with pumps and variable frequency drives for water distribution#1.9

Irrigation Systems

Smart pump control for agricultural and landscape irrigation with flow compensation, pressure regulation, and energy-efficient operation.

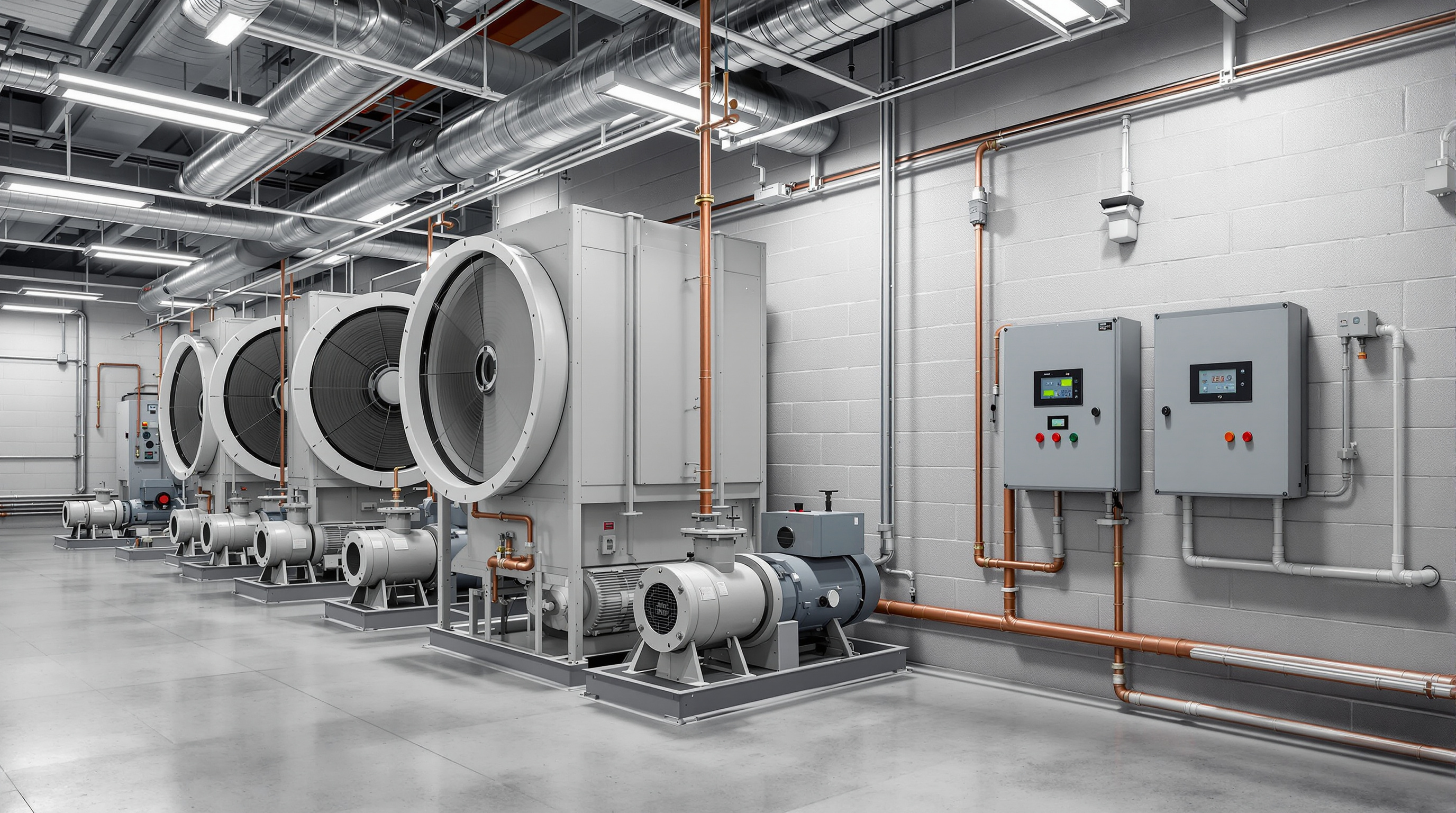

HVAC system with fans and pumps controlled by variable frequency drives for building automation#1.9

HVAC Systems

Efficient fan and pump control for building automation systems with sleep/wake functions, multi-motor control, and fire mode inputs.

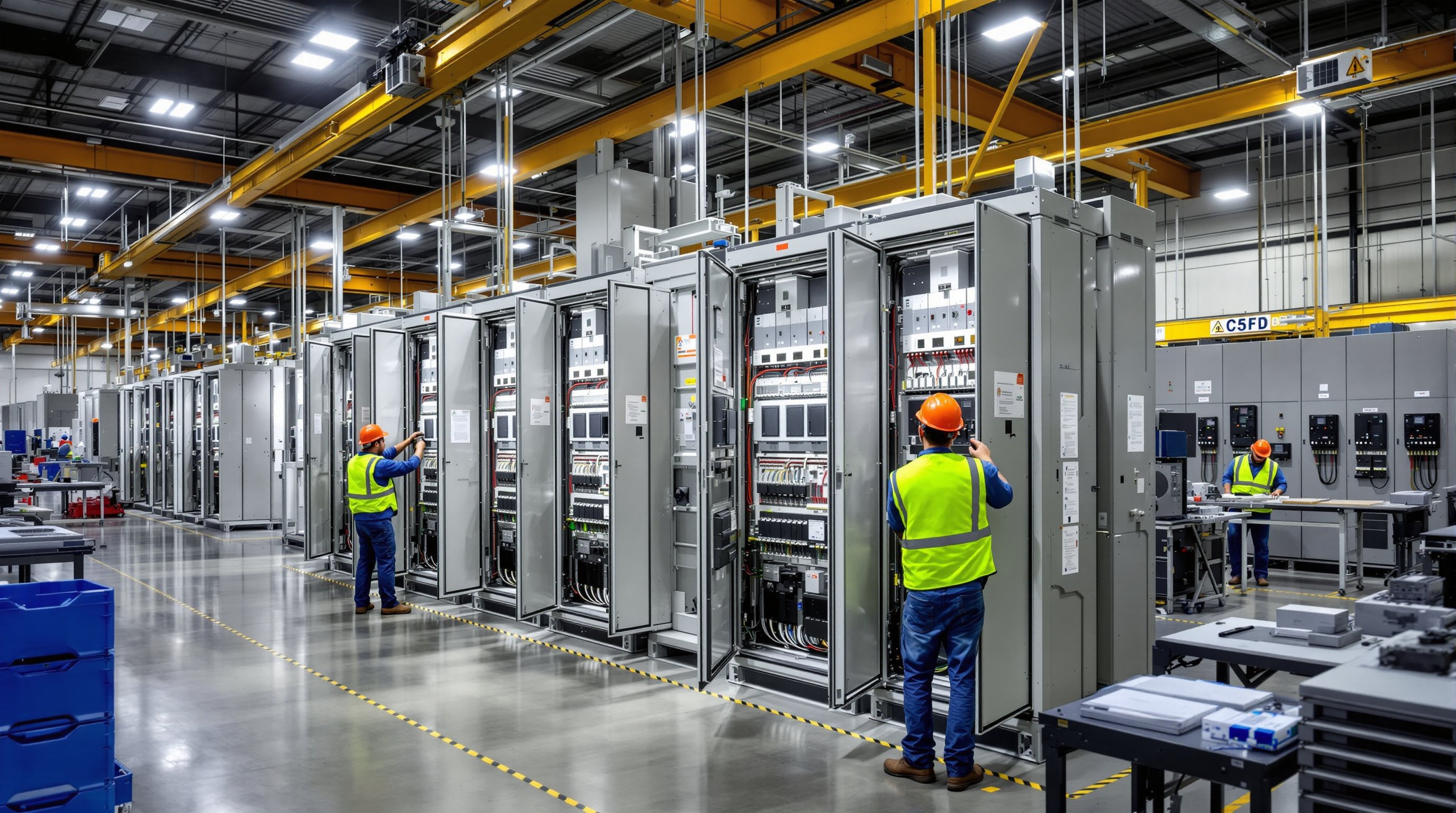

OEM manufacturing facility with panel builders integrating variable frequency drives into control systems#1.9

OEMs & Panel Builders

Versatile drive solutions for equipment manufacturers and panel builders requiring reliable, compact drives with comprehensive communication options.

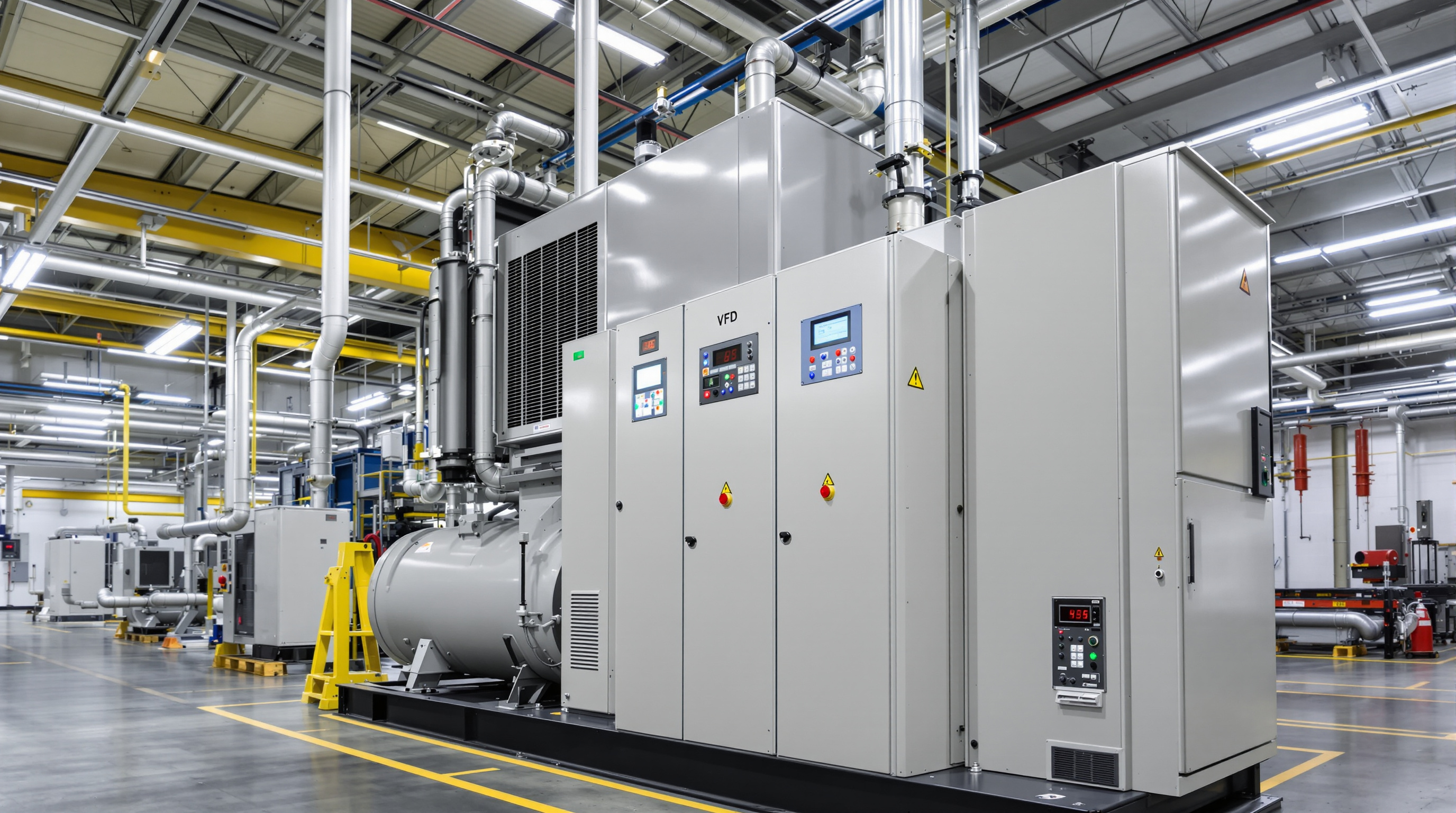

Compressor system with variable frequency drives controlling motor speed and energy consumption#1.9

Compressor Systems

Advanced motor control for air compressors and process gas compression with energy savings, torque control, and load tuning capabilities.
