Medium Voltage Variable Frequency Drives

H-Bridge Multi-Level Technology
Fully Integrated Package Design
Advanced Remote Monitoring System
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Expert Technical Support
Territory-Based Service
Certifications: UL Listed, IEEE 519

Trusted by Hundreds of Companies Globally

Technical Specifications Overview

Comprehensive specifications for both MVH2 and M2L series variable frequency drives.

Parameter
Specification
MVH2 Power Rating
1,500HP @ 4,160V
M2L Power Range
300 HP to 12,000 HP
M2L Operating Voltage
up to 7.2kV
M2L Input Voltage
accepting up to 35kV
Enclosure Type
NEMA 1 forced air, front access, welded
Cable Restrictions
No cable length restrictions
IGBT Type
LV (1700V) IGBTs
Fans Configuration
Redundant fans included
Compliance Standards
UL Listed, IEEE 519 compliant
Country of Origin
🇺🇸 United States

Advanced Motor Control Excellence

Engineered for optimal performance with cutting-edge technology and comprehensive motor control solutions.

Perfect Sine Wave Output

H-Bridge multi-level and overlapping wave technology delivers low harmonic content and nearly perfect sine wave output for superior motor performance and reduced electrical stress.

Fully Integrated Package

Complete solution includes load break fused disconnect, inline contactor up to 154A, and built-in dry type transformer for simplified installation and reduced footprint.

Advanced HMI Control

Door-mounted touch screen HMI provides comprehensive control with V/Hz, open or closed loop, and vector control capabilities for precise motor management.

Enhanced Safety Features

Fast and reliable arc flash detection system with advanced remote monitoring ensures safe operation and immediate response to potential hazards in industrial environments.

Modular Power Design

Modular power-cell-based inverters with low voltage IGBTs and reliable film capacitors provide flexible packaging options and simplified maintenance procedures.

Remote Monitoring System

Benshaw Connect and GMC remote monitoring system provides intuitive access to operational data, trends, event logs, and motor parameters for proactive maintenance.

Frequently Asked Questions

What is the difference between MVH2 and M2L series drives?
The MVH2 Series features H-Bridge technology with fully integrated packages, while the M2L Series offers unique patented topology with independent transformer, rectifier, and inverter sections for flexible packaging options.
What power ratings are available for these drives?
The MVH2 Series offers up to 1,500HP at 4,160V, while the M2L Series provides power ranges from 300 HP to 12,000 HP with operating voltages up to 7.2kV.
Are these drives suitable for retrofit applications?
Yes, these drives are ideal for retrofit projects or installations with space constraints. They can be used standalone or integrated into MCC configurations.
What remote monitoring capabilities are included?
The drives include Benshaw Connect and GMC remote monitoring systems that provide intuitive access to operational data, trends, event logs, control parameters, and immediate support during unexpected situations.
What safety features are integrated into these drives?
The drives feature fast and reliable arc flash detection systems, reduced arc flash footprint design, and safe operation with remote HMI capability for enhanced personnel protection.

Versatile Applications Across Multiple Industries

Advanced motor control solutions designed for demanding industrial applications requiring precision, efficiency, and reliability.

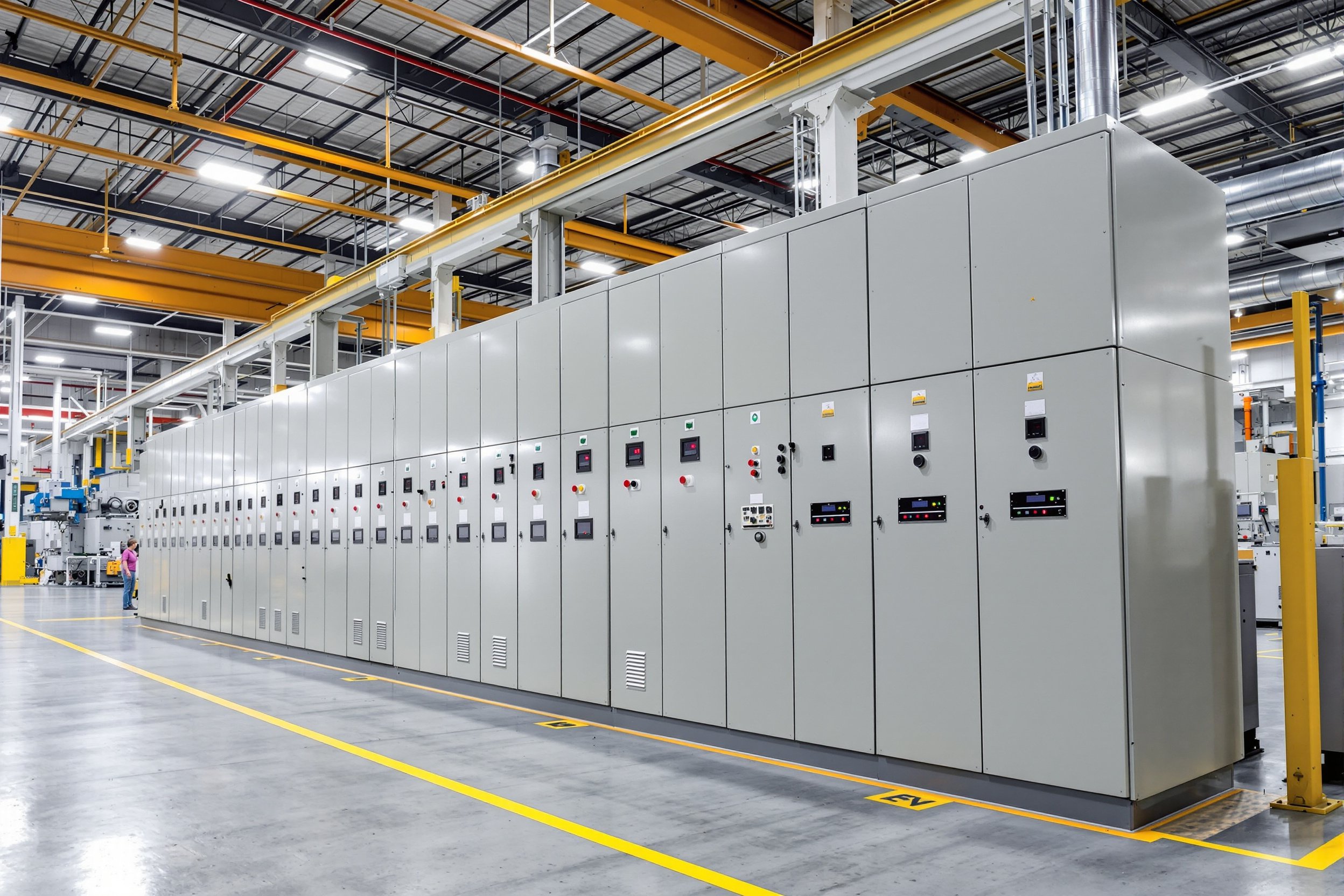

Manufacturing and processing facilities with medium voltage motor control systems#1.5

Manufacturing Plants

Ideal for soft start, speed control, and energy savings in large manufacturing operations requiring precise motor control and reduced maintenance costs.

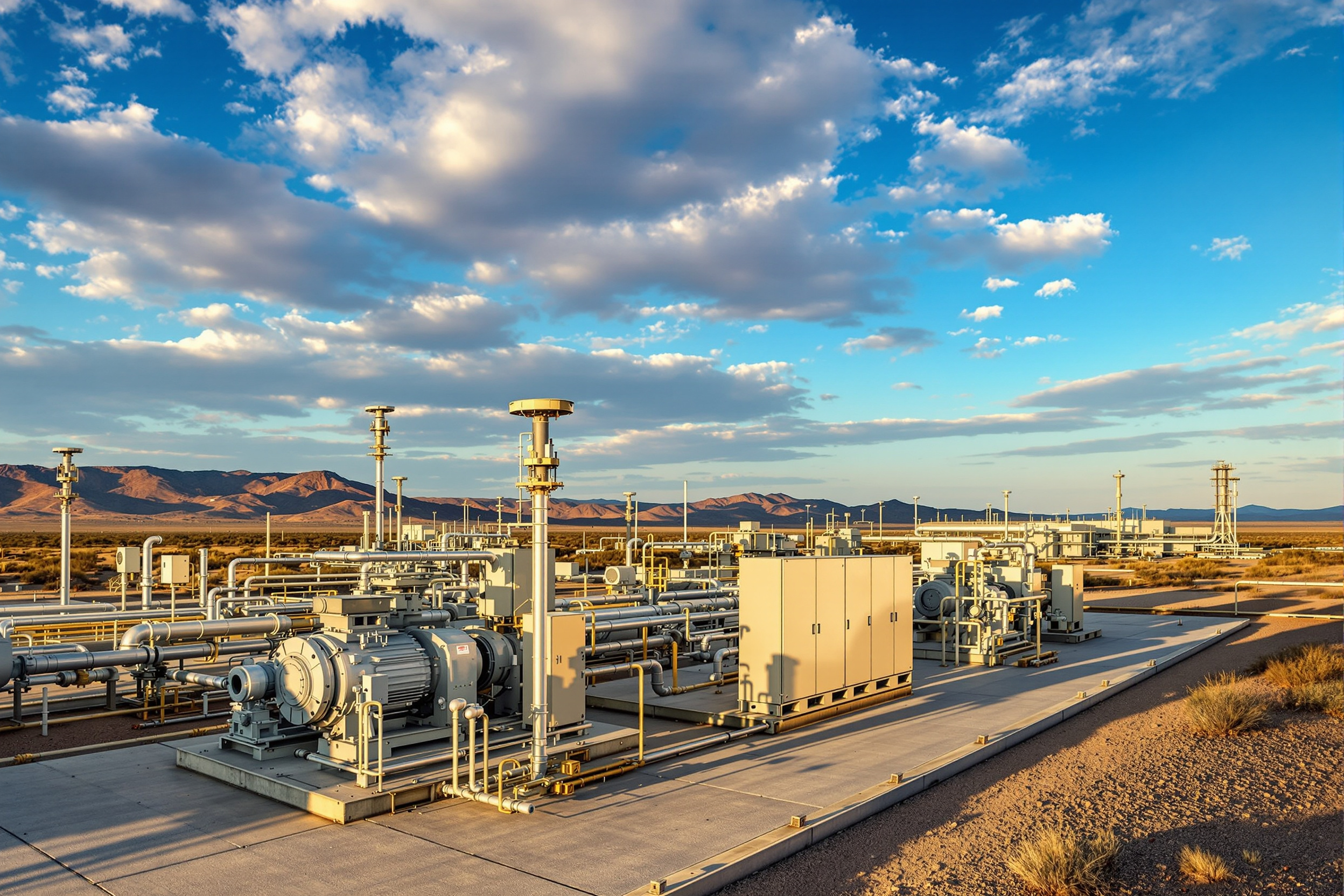

Oil and gas pumping stations with medium voltage variable frequency drives#1.5

Oil & Gas

Perfect for retrofit projects in pumping stations and processing facilities where space constraints and reliable operation are critical factors.

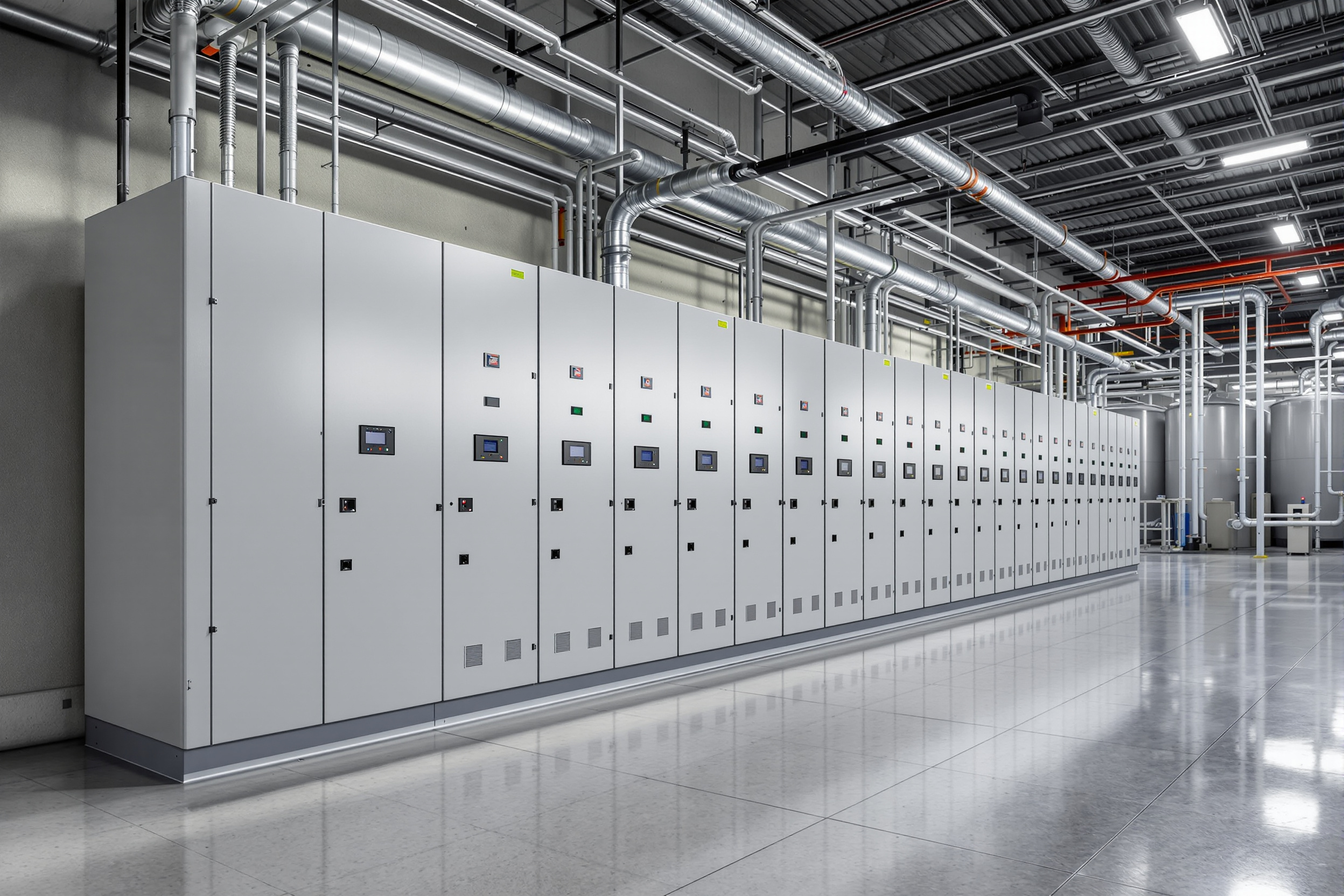

Water treatment facilities with medium voltage motor control centers#1.5

Water Treatment

Suitable for standalone or MCC integration in water treatment plants requiring intelligent control and reduced arc flash footprint for safe operation.

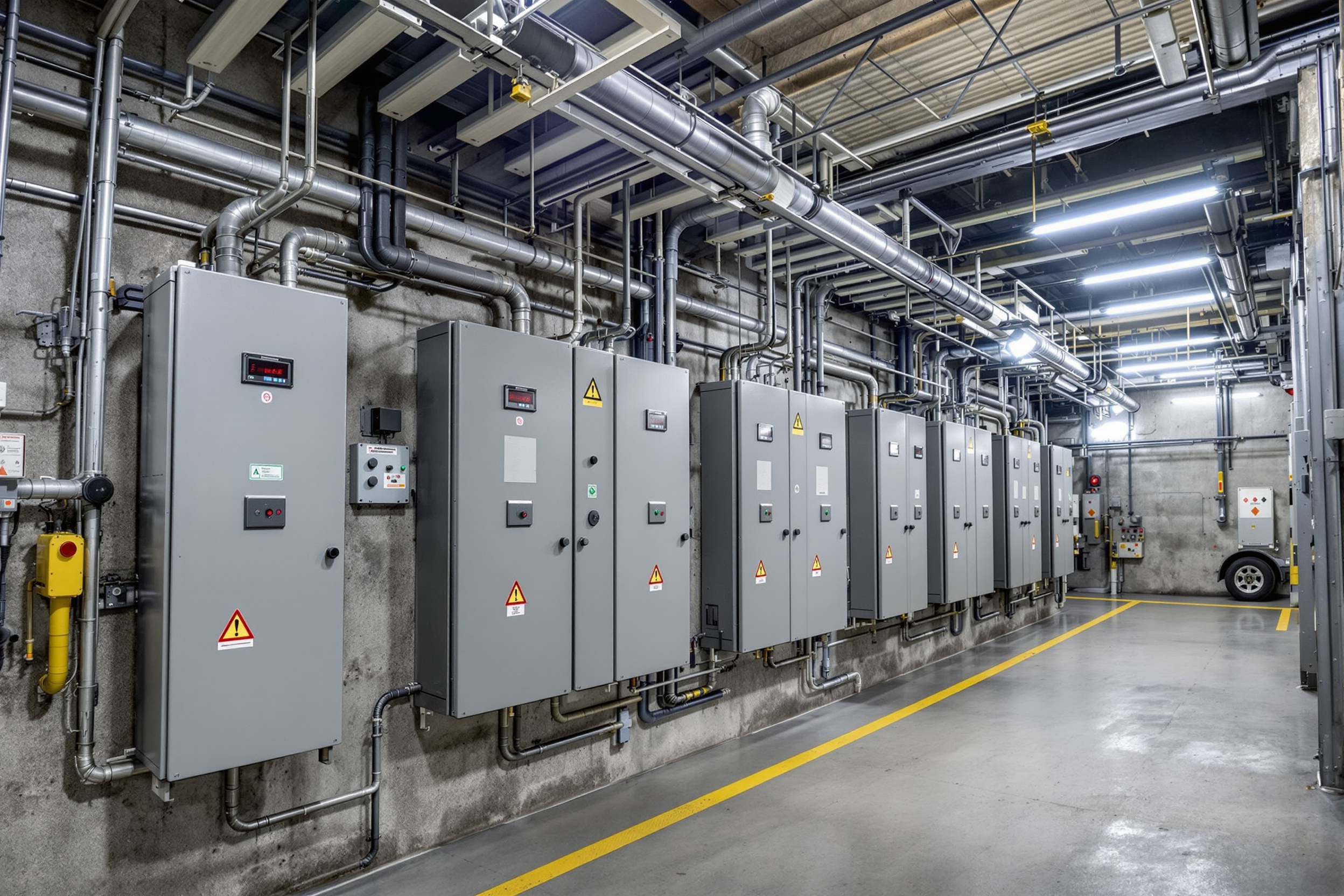

Mining operations with medium voltage induction motor starters#1.5

Mining Operations

Engineered for demanding mining applications with medium voltage induction and synchronous motors requiring robust control and remote monitoring capabilities.

What Our Industrial Clients Say

Hear from engineers and maintenance professionals who trust Benshaw drives for their critical applications.

Exceptional Performance and Reliability

The Benshaw medium voltage drives have transformed our manufacturing efficiency. The H-Bridge technology delivers perfect motor control with minimal harmonics, significantly reducing our maintenance costs.

MJ

Michael Johnson

Plant Engineer, Manufacturing Corp

Perfect for Retrofit Applications

The fully integrated package made our retrofit project seamless. The front access design and remote monitoring capabilities have improved our operational safety and efficiency dramatically.

ST

Sarah Thompson

Electrical Engineer, Industrial Solutions

Outstanding Technical Support

The Benshaw Connect remote monitoring system provides incredible insights into our motor performance. The technical support team is responsive and knowledgeable about every aspect of the drives.

RD

Robert Davis

Maintenance Supervisor, Energy Corp

Advanced Safety Features

The arc flash detection system and reduced footprint design have significantly improved our workplace safety. The modular power cell design makes maintenance much more manageable for our team.

LM

Lisa Martinez

Safety Manager, Industrial Systems

Energy Efficiency Excellence

The intelligent control features and energy saving capabilities have reduced our operating costs significantly. The touch screen HMI makes operation intuitive for our operators.

JW

James Wilson

Operations Manager, Processing Plant

Flexible Installation Options

The M2L Series flexible packaging options allowed us to configure the drives exactly for our space requirements. The independent transformer sections make customization straightforward.

AN

Amanda Nelson

Project Engineer, Industrial Automation

Complete Motor Control Solutions

Explore our comprehensive range of Benshaw medium voltage motor starters and control solutions.

MVDH Series Two-High MV Soft Starter

Two 350% rated solid state starters with compact footprint, dual redundant configuration with emergency backup, and Benshaw's advanced MX3 digital control for complete independent motor control.

ignoreGeneration#MVDH Series Two-High MV Soft Starter Learn More

RX4E Series Packaged Soft Starters

Solid state reduced voltage starting with full voltage emergency backup, unique dual redundant design, NEMA 12 enclosure, and complete electronic motor protection in compact configuration.

ignoreGeneration#RX4E Series Packaged Soft Starters Learn More

MVE-P Series Medium Voltage Soft Starters

Powerful reliable solution with sophisticated motor control functionality, complete E2 starter offering, extensive safety features, graphical interface, and modular design for maximum installation versatility.

ignoreGeneration#MVE-P Series Medium Voltage Soft Starters Learn More
