MVE-P Series Medium Voltage Soft Starters

Complete E2 Starter Solution
Advanced Motor Protection
Modular Design for Maintenance
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Contact for Delivery
Technical Support Included
Certifications: UL/cUL, NEMA Rated
View Specs

Trusted by Hundreds of Companies Globally

Technical Specifications at a Glance

Comprehensive specifications for the MVE-P Series Medium Voltage Soft Starters designed for reliable motor control applications.

Parameter
Specification
Mains Voltage
2.3 kV ~ 15 kV (±10%)
Control Voltage
120 VAC or 230 VAC
Current Range
110 A ~ 1200 A (nominal)
Rated Frequency
50/60 Hz
Max Start Current
400% FLC
Max Start Time
30 seconds at 400% FLC
Operating Temperature
0°C to +50°C, max (+60°C with derating)
Storage Temperature
25°C to +70°C
Altitude
1000 m ASL (higher with derating)
Relative Humidity
5% to 95%, non condensing

Engineered for Maximum Performance

Discover the advanced features that make MVE-P Series the preferred choice for medium voltage motor starting applications.

Complete Safety Protection

Extensive personnel safety features with fully isolated low voltage circuits using high-quality fiber-optic connections for maximum operator protection and system reliability.

Modular Design

Each phase arm is separate and individually removable for maintenance, minimizing downtime and service costs while ensuring maximum operational flexibility.

Advanced Control Interface

Easy-to-use graphical interface with comprehensive built-in motor protection and digital control module for precise motor control and monitoring capabilities.

Flexible Installation

Phase arms designed for maximum versatility with power terminations at either top or bottom of input and output busbars, accommodating various installation requirements.

Built-in Testing

Support testing with low voltage motor using built-in simulation modes, allowing complete verification of power and control circuits without high voltage exposure.

Multiple Enclosure Options

Available in NEMA1, NEMA 12, NEMA 3R and outdoor rated enclosures to meet diverse environmental and application requirements in industrial settings.

Frequently Asked Questions

What voltage range does the MVE-P Series support?
The MVE-P Series supports mains voltage from 2.3 kV to 15 kV (±10%) with control voltage options of 120 VAC or 230 VAC, making it suitable for a wide range of medium voltage applications.
What makes the MVE-P Series safer than traditional starters?
The MVE-P Series features fully isolated low voltage circuits from medium voltage power electronics using high-quality fiber-optic connections, extensive personnel safety features, and comprehensive built-in motor protection systems.
Can the MVE-P Series be tested without high voltage?
Yes, the MVE-P Series supports testing with a low voltage motor to fully test power and control circuits using built-in simulation modes, ensuring safe commissioning and maintenance procedures.
What enclosure options are available for the MVE-P Series?
The MVE-P Series is available in NEMA1, NEMA 12, NEMA 3R and outdoor rated enclosures to accommodate various environmental conditions and installation requirements in industrial applications.
How does the modular design benefit maintenance?
The modular design means each phase arm is separate and can be individually removed for maintenance if required, significantly reducing downtime and service costs while maintaining system availability.

Ideal for Medium Voltage Applications

Specifically engineered for medium voltage motor starting requirements across various industrial applications.

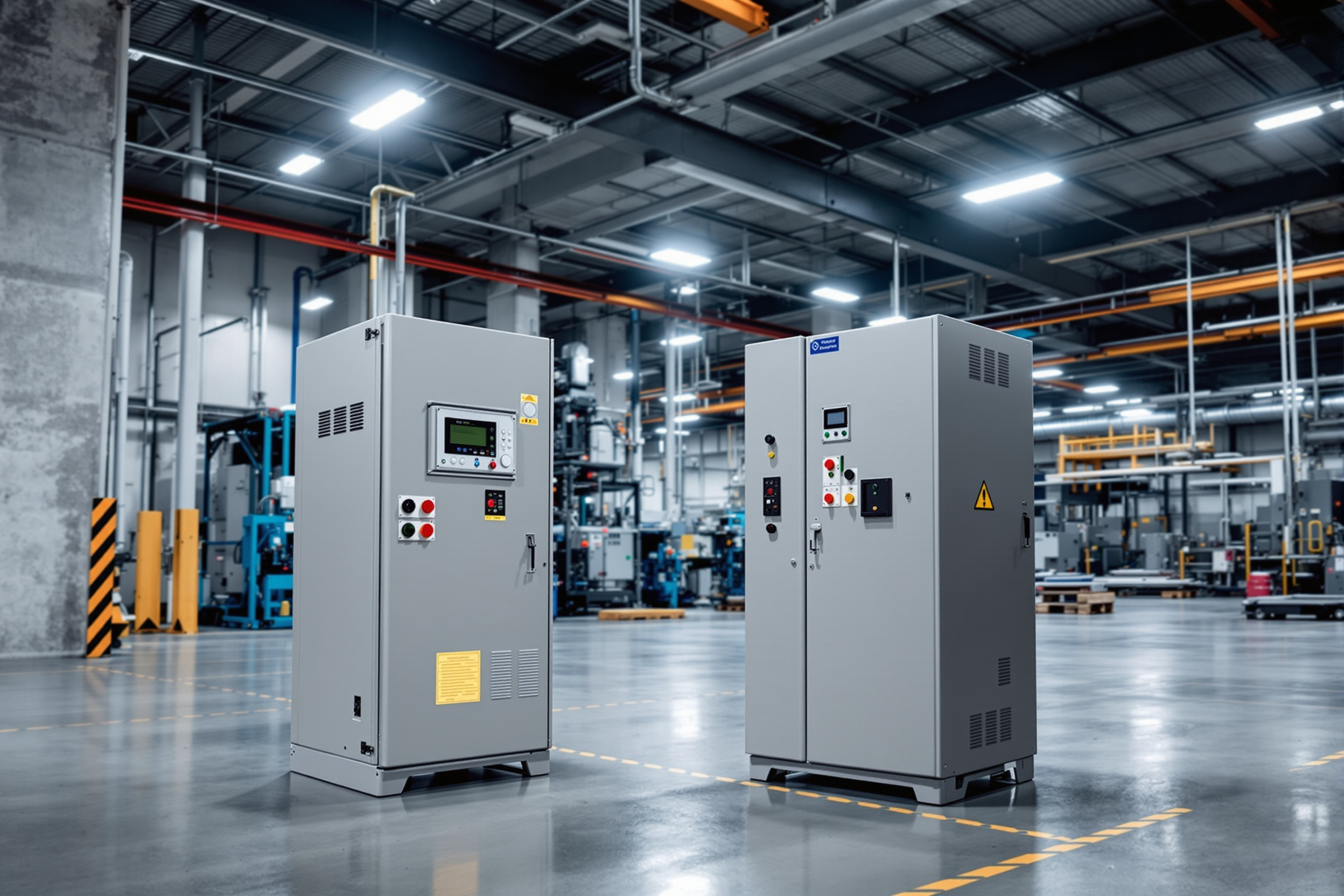

Medium voltage motor starting applications in industrial manufacturing#1.6

Medium Voltage Motor Control

Perfect for industrial applications requiring reliable medium voltage motor starting with advanced protection and control features.

What Our Clients Say

Discover how the MVE-P Series has transformed medium voltage motor control for industrial clients worldwide.

Outstanding Reliability and Safety

The MVE-P Series has exceeded our expectations with its robust design and comprehensive safety features. The fiber-optic isolation gives us complete confidence in operator safety during maintenance operations.

JM

James Miller

Plant Engineer, Industrial Manufacturing

Modular Design Saves Time

The modular design of the MVE-P Series has significantly reduced our maintenance downtime. Being able to service individual phase arms without shutting down the entire system is a game-changer for our operations.

SR

Sarah Rodriguez

Maintenance Manager, Power Generation

Complete E2 Solution

Having the complete E2 starter package with load break disconnect, contactors, and motor protection in one unit simplified our installation and commissioning process tremendously.

DT

David Thompson

Electrical Consultant, System Integration

Advanced Control Interface

The graphical interface on the MVE-P Series makes operation and monitoring intuitive. The built-in testing capabilities with simulation modes have improved our commissioning efficiency significantly.

LW

Linda Wang

Controls Engineer, Mining Operations

Flexible Installation Options

The flexibility to terminate power at either the top or bottom of busbars made our installation much easier in space-constrained environments. The NEMA enclosure options fit perfectly with our requirements.

MC

Mark Chen

Project Manager, Water Treatment

Comprehensive Motor Protection

The built-in motor overload protection and comprehensive monitoring capabilities have prevented several potential motor failures. The investment in MVE-P Series has paid for itself in equipment protection alone.

AB

Anna Brown

Reliability Engineer, Petrochemicals

Explore Our Motor Control Solutions

Discover our complete range of medium voltage motor control solutions designed for industrial applications.

MVDH Series Two-High MV Soft Starter

Compact dual starter solution featuring two 350% – 30 seconds rated solid state starters with redundant configuration and advanced MX3 control for back-to-back applications.

ignoreGeneration#MVDH Series Two-High MV Soft Starter Learn More

RX4E Series Packaged Soft Starters

Solid state reduced voltage starters with full voltage emergency backup, unique dual redundant design, and complete electronic motor protection in NEMA 12 enclosures.

ignoreGeneration#RX4E Series Packaged Soft Starters Learn More

Medium Voltage Variable Frequency Drives

Advanced VFD solutions featuring H-Bridge multi-level technology, modular power-cell design, and comprehensive control options for precise motor speed and torque control.

ignoreGeneration#Medium Voltage Variable Frequency Drives Learn More

Need a Custom Solution?

Our technical experts can help you select the right motor control solution for your specific application.

Let's Build Your Solution Together

Ready to enhance your medium voltage motor control with MVE-P Series? Contact our technical team for expert guidance and custom solutions.
