UL 2808 certified#1.0 UL 2808
IEC 61869-10 certified#1.0 IEC 61869-10
CSA certified#1.0 CSA C22.2

ROG flexible sensors

Flexible rope design for tight spaces
4000A rated current capacity
131 mV/1000A output signal
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Contact for Delivery
Technical Support Included
Certifications: UL, IEC, CSA

Trusted by Hundreds of Companies Globally

Technical Specifications at a Glance

Complete technical specifications for ROG flexible sensors across all available models and configurations.

Parameter
Specification
Model Options
ROG-80, ROG-120, ROG-200, ROG-300
Opening Diameters
80mm, 120mm, 200mm, 300mm
Rated Current
4000A
Secondary Output @ 60Hz
131 mV / kA @ 60Hz
Secondary Output @ 50Hz
109.2 mV / kA @ 50Hz
Accuracy
Linear 0.5%
Output Lead
22-ft / 7m 3-wire
Certifications
UL 2808, IEC 61869-10, CSA C22.2
Manufacturer
Socomec
Country of Origin
🇫🇷 France

Engineered for Superior Performance

ROG flexible sensors deliver unmatched accuracy and installation flexibility for demanding current measurement applications across industrial environments.

High Current Capacity

Handles up to 4000A rated current with exceptional linearity and 0.5% accuracy, making it ideal for high-power industrial applications where precision matters most.

Flexible Installation

Open-ended rope design allows installation without disconnecting wires, perfect for retrofit applications in cramped electrical panels with limited access space.

Ready Integration

Compatible with DIRIS MCM power meters with no additional integrator or power supply required, featuring built-in burden resistor for direct voltage output.

Safety First Design

Safe locking mechanism prevents accidental opening during operation, while UL and IEC certifications ensure compliance with international safety standards.

Multiple Sizes

Available in four diameter options (80mm, 120mm, 200mm, 300mm) to accommodate various conductor configurations and busbar arrangements in diverse applications.

Service Support

Comprehensive technical support with operating instructions, CAD files, and technical documentation available through dedicated resource center for complete project assistance.

Frequently Asked Questions

What makes ROG sensors ideal for retrofit applications?
The open-ended flexible rope design allows installation around existing conductors without disconnecting any wires, making it perfect for upgrading electrical panels with limited space or access constraints.
How do I choose the right diameter for my application?
Select the diameter based on your conductor size and configuration. ROG-80 (80mm) works for smaller cables, while ROG-300 (300mm) accommodates large busbars and multiple parallel conductors.
Is additional power supply required for operation?
No, ROG sensors feature a built-in burden resistor that provides direct voltage output (131 mV/1000A @ 60Hz) without requiring external integrators or power supplies when used with DIRIS MCM meters.
What certifications do ROG sensors carry?
ROG sensors are certified to UL 2808, CAN/CSA C22.2 No.61010-1-12, and IEC 61869-10 standards, ensuring compliance with North American and international safety requirements for industrial applications.
What is the accuracy rating of these sensors?
ROG flexible sensors provide linear 0.5% accuracy across the full measurement range, delivering precise current measurements for accurate power monitoring and energy management applications.

Versatile Applications Across Multiple Industries

ROG flexible sensors excel in demanding environments where conventional current sensors cannot fit or perform effectively

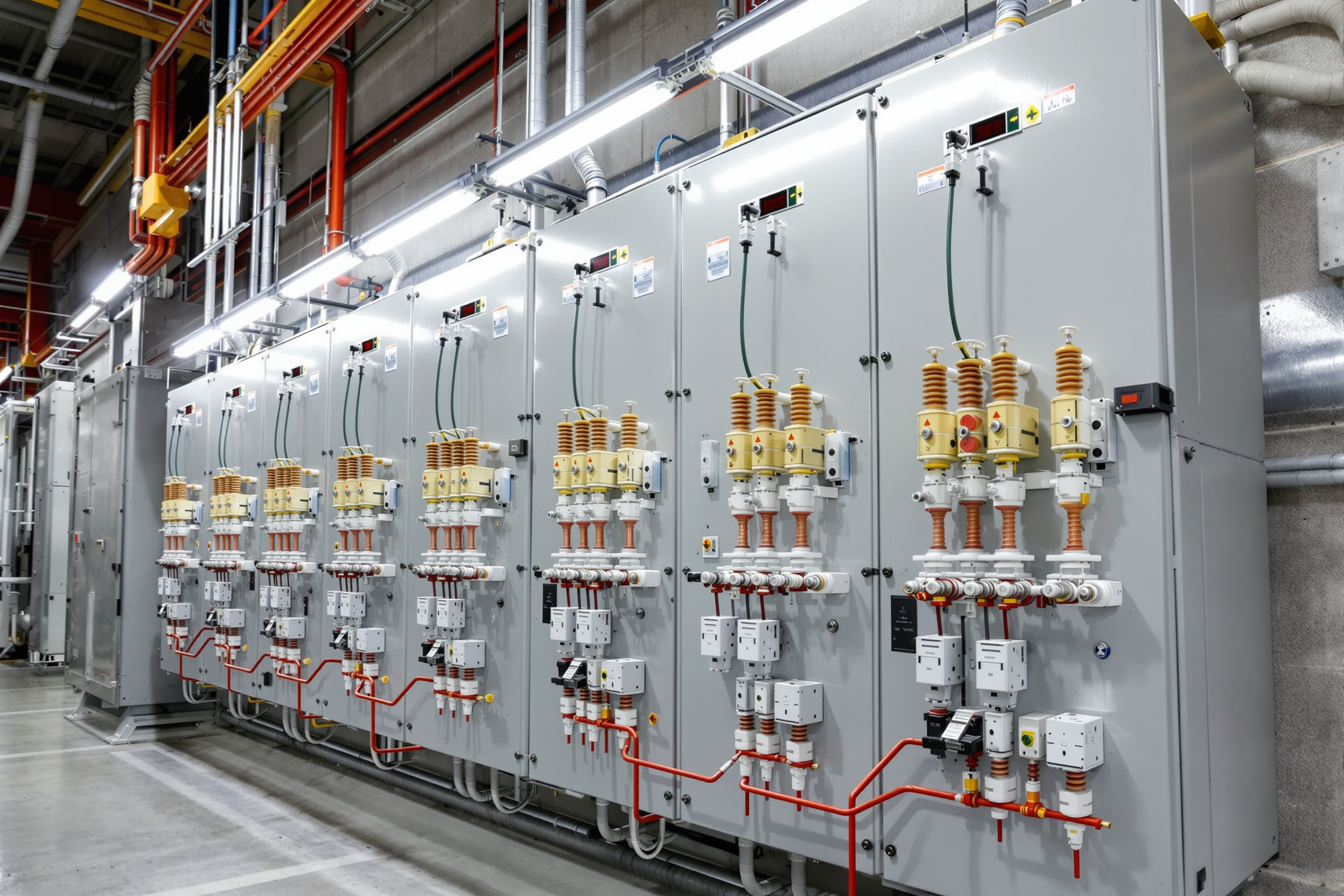

High current busbar installations in industrial electrical panels with multiple parallel conductors#1.6

High Current Applications

Perfect for measuring high currents in busbars and parallel conductor configurations where rigid sensors cannot fit

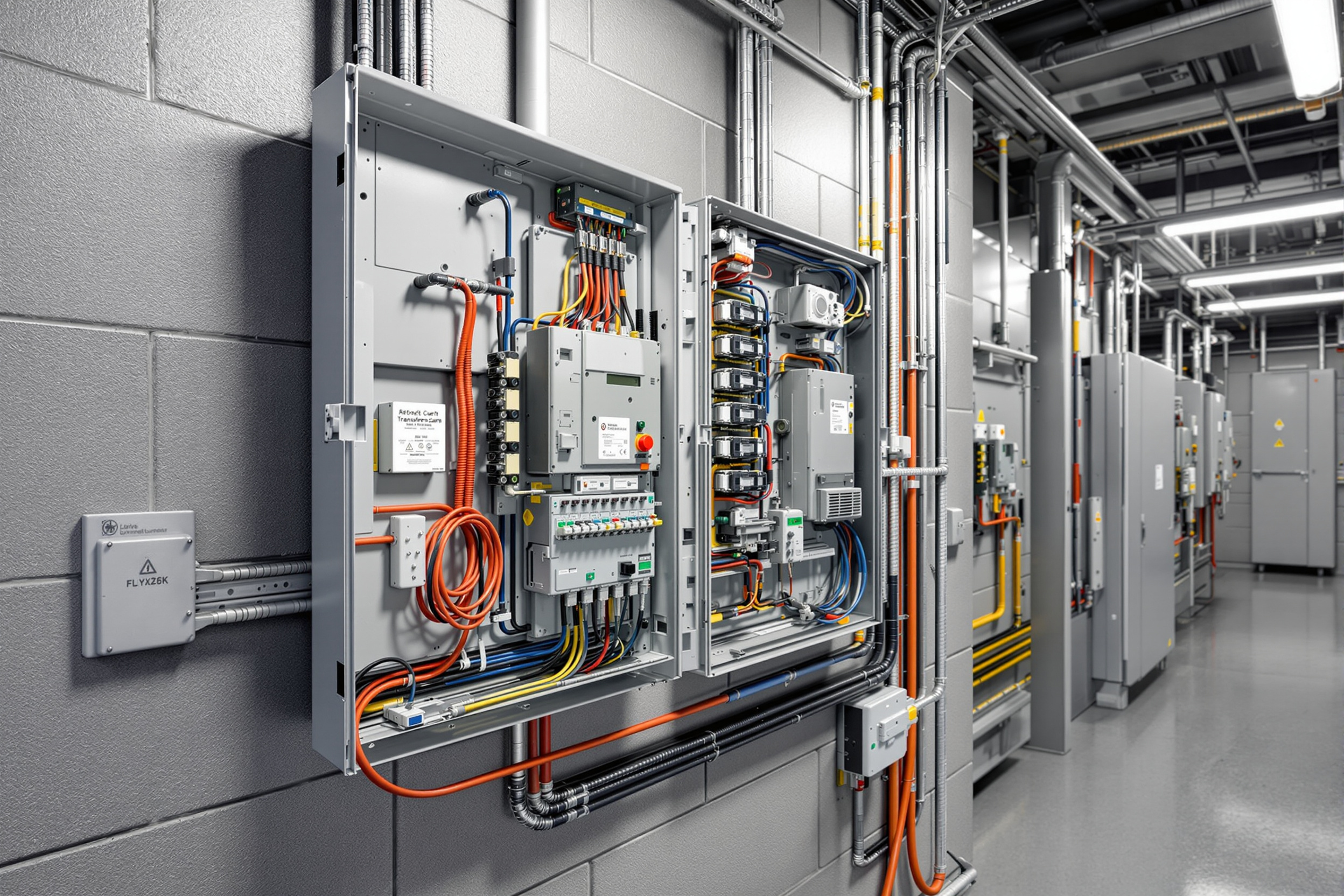

Electrical panel retrofit installations with space constraints requiring flexible current measurement solutions#1.6

Retrofit Applications

Ideal for upgrading existing electrical panels with limited space without disconnecting existing wiring systems

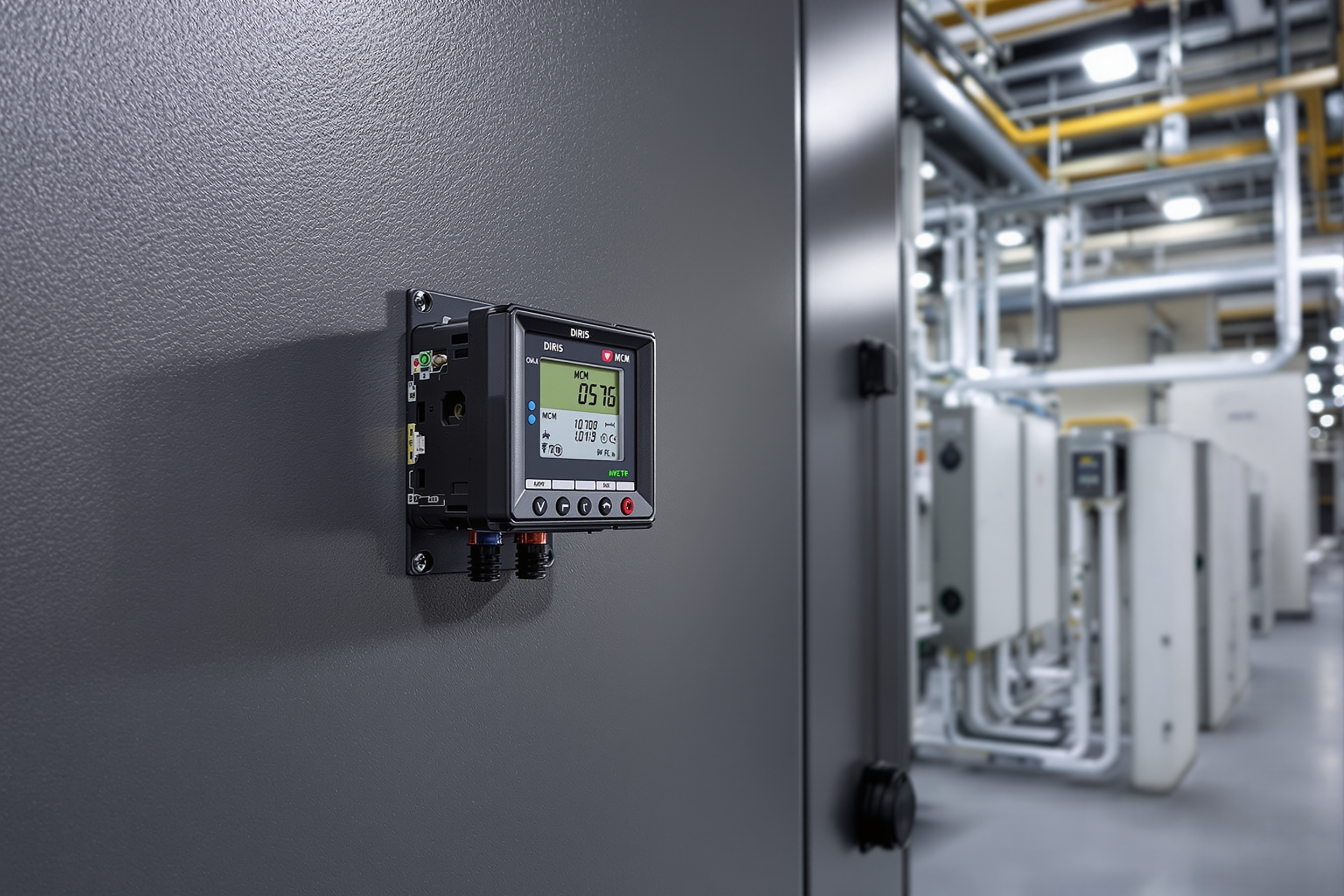

Power monitoring systems with DIRIS MCM meters for accurate energy measurement in industrial facilities#1.6

Power Monitoring

Essential component for accurate power and energy measurements with DIRIS MCM power meter integration

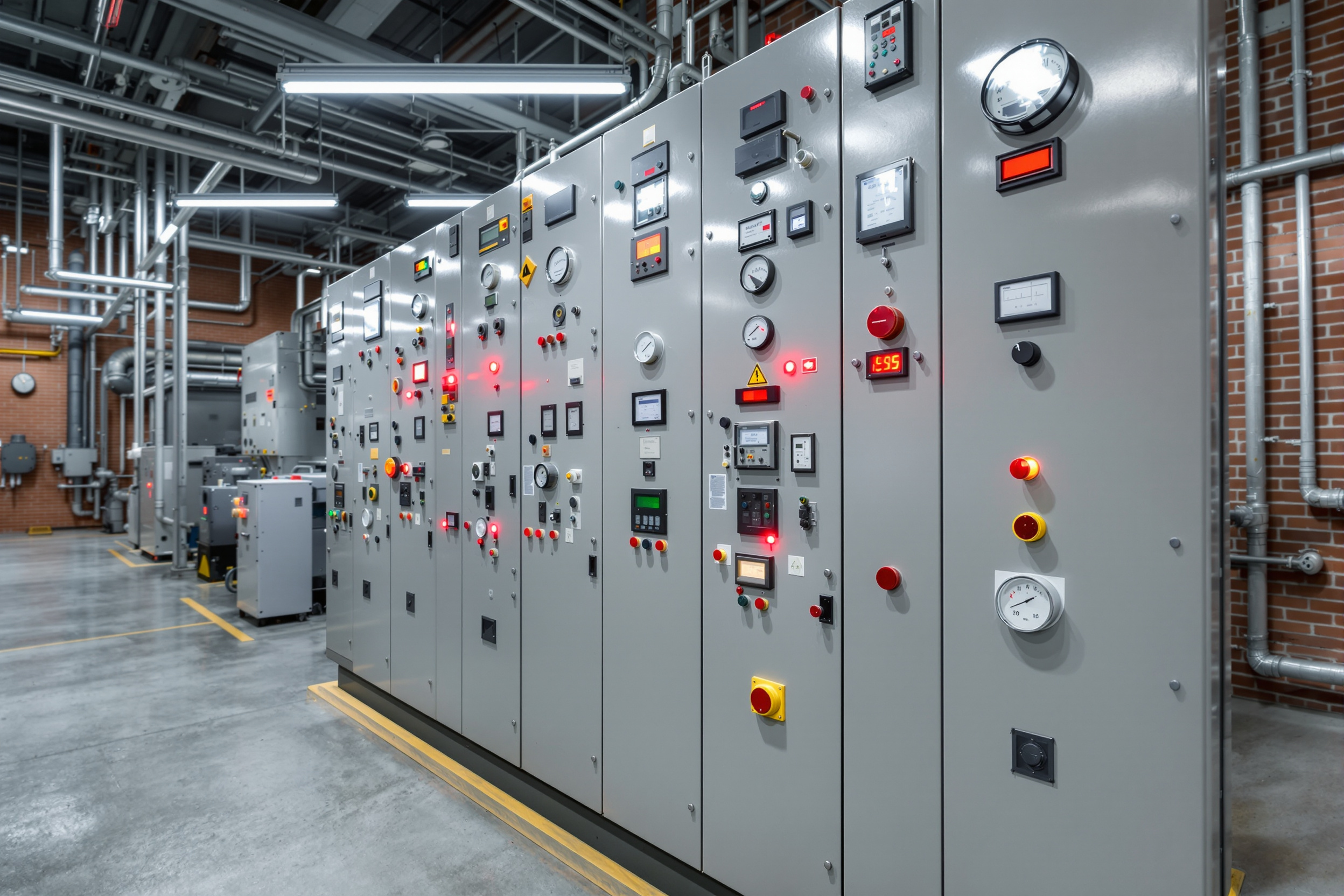

Industrial electrical control panels requiring precise current measurement for safety and monitoring#1.6

Industrial Control

Compatible with industrial control systems requiring precise current measurement for safety and operational monitoring

What Our Engineering Partners Say

Trusted by electrical professionals worldwide for reliable current measurement solutions in challenging applications

Perfect for tight spaces

The ROG sensors solved our retrofit challenge where conventional CTs couldn't fit. Installation was quick and the accuracy is excellent for our power monitoring needs.

MJ

Mike Johnson

Senior Electrical Engineer

Outstanding technical support

ValuAdd provided excellent guidance on selecting the right ROG sensor diameter for our busbar configuration. The integration with our DIRIS meters was seamless.

SR

Sarah Rodriguez

Plant Maintenance Manager

Reliable and accurate

We've been using ROG sensors for over two years in our manufacturing facility. The 0.5% accuracy and flexible installation make them our go-to choice for current monitoring.

DL

David Lee

Control Systems Specialist

Easy installation process

The open-ended design eliminated downtime during installation. We could retrofit our existing panels without any service interruption, which was crucial for our operations.

AC

Angela Chen

Facilities Engineer

Cost-effective solution

Compared to rigid split-core alternatives, ROG sensors provided significant cost savings and installation flexibility for our multi-conductor applications.

RT

Robert Turner

Project Manager

Excellent build quality

The safety locking mechanism and certified construction give us confidence in harsh industrial environments. These sensors have exceeded our reliability expectations.

LW

Lisa Walsh

Quality Assurance Manager
