RX2E Enclosed Combination Soft Starter

Built-in Motor Protection & Emergency Bypass
MX2 Control Technology with LCD Keypad
NEMA 12 or NEMA 3R Enclosure Options
ignoreGeneration#Zoomable Image
ignoreGeneration#Zoomable Image
Price Price Available on Request
Fast Delivery Available
Technical Support Included
Industrial Grade, Motor Protection, NEMA Rated

Trusted by Hundreds of Companies Globally

Technical Specifications Overview

Comprehensive technical details for the RX2E Enclosed Combination Soft Starter system.

Parameter
Specification
Product Type
Motor Starters & Variable Frequency Drives
Model
RX2E Enclosed Combination Soft Starter
Enclosure Rating
NEMA 12 or NEMA 3R
Control Technology
MX2 Digital Control with LCD Keypad
Motor Protection
ANSI 19, 27/59, 37, 46, 47, 48, 50, 51, 51G, 74, 81, 86
Special Features
Single phase protection, Shorted SCR detection, Mechanical jam protection
Bypass Contactor
Full voltage rated emergency bypass contactor included
Interface Controls
Door mounted Start/Stop buttons, Local/Off/Remote selector switch
Programming
Door mounted LCD keypad or Modbus register mapping
Country of Origin
🇺🇸 United States

Engineered for Reliability

Advanced soft starting technology with comprehensive motor protection and user-friendly controls for industrial applications.

Advanced Motor Protection

Comprehensive ANSI protection features including single phase protection, shorted SCR detection, and mechanical jam protection ensure maximum motor safety and operational reliability.

MX2 Control Technology

Intelligent control system with adjustable overload settings, user-customizable motor ramp profiles, and adjustable voltage control deceleration for optimal motor performance and energy efficiency.

Emergency Bypass Protection

Full voltage rated emergency bypass contactor provides immediate backup operation capabilities, ensuring continuous motor operation even during soft starter maintenance or failure scenarios.

User-Friendly Interface

Door-mounted LCD keypad with Start/Stop push buttons and Local/Off/Remote selector switch provides intuitive operation and easy programming access for maintenance personnel.

Rugged Enclosure Design

Available in NEMA 12 or NEMA 3R enclosure ratings providing superior protection against harsh industrial environments, dust, water, and corrosive conditions.

Flexible Programming Options

Multiple programming methods including door-mounted LCD keypad and Modbus register mapping allow for seamless integration with existing automation systems and remote monitoring capabilities.

Frequently Asked Questions

What is the difference between NEMA 12 and NEMA 3R enclosures?
NEMA 12 enclosures are designed for indoor use and provide protection against dust, falling dirt, and dripping non-corrosive liquids. NEMA 3R enclosures are designed for outdoor use and provide protection against rain, sleet, and ice formation while allowing for better ventilation.
How does the emergency bypass contactor work?
The emergency bypass contactor allows the motor to run at full voltage if the soft starter fails or requires maintenance. It automatically switches to bypass mode during emergencies or can be manually activated, ensuring continuous motor operation without interruption.
What motor protection features are included with MX2 control?
MX2 control provides comprehensive ANSI protection including overcurrent, undervoltage/overvoltage, unbalanced current, phase sequence, thermal overload, ground fault, frequency, and lockout protection, plus single phase protection, shorted SCR detection, and mechanical jam protection.
Can the RX2E be programmed remotely via Modbus?
Yes, the RX2E supports Modbus register mapping for remote programming and monitoring. This allows integration with SCADA systems, PLCs, and other automation equipment for centralized control and data acquisition from multiple soft starters.
What are the typical applications for the RX2E soft starter?
The RX2E is ideal for pumping applications requiring adjustable voltage control deceleration and general three-phase motor starting applications where enhanced control, motor protection, and smooth starting/stopping are critical for equipment longevity and operational efficiency.

Applications Across Diverse Industries

The RX2E soft starter delivers reliable motor control solutions across various industrial sectors requiring precise motor starting and protection.

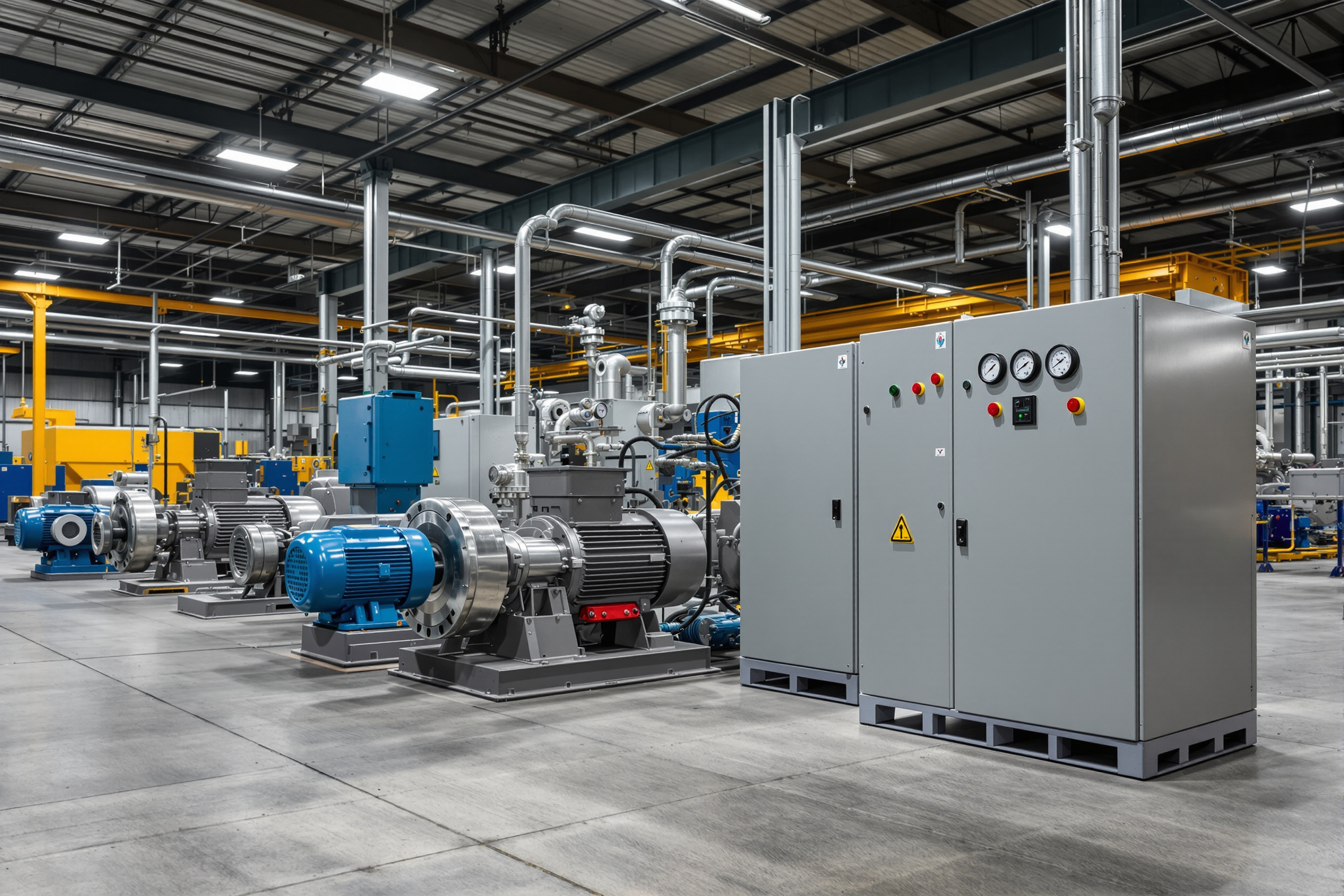

Industrial pumping systems with motor control applications#1.5

Pumping Systems

Ideal for water treatment plants, irrigation systems, and industrial pumping applications requiring smooth motor acceleration and adjustable voltage control deceleration.

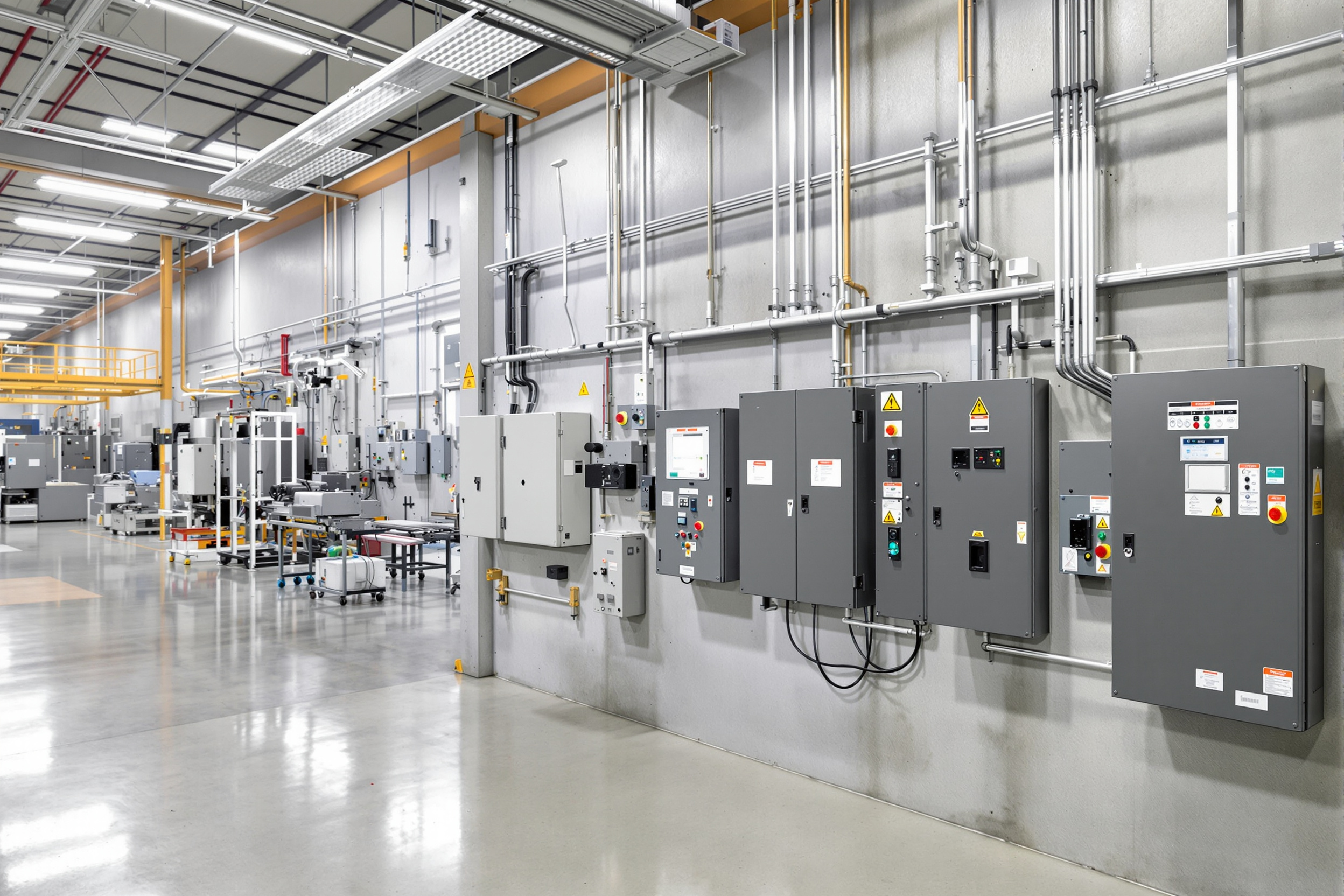

General motor control applications in manufacturing facilities#1.5

General Motor Control

Perfect for three-phase motor starting and stopping applications in manufacturing facilities requiring enhanced control and comprehensive motor protection features.

What Our Industrial Partners Say

Discover how the RX2E soft starter has transformed motor control operations across diverse industrial applications.

Exceptional Motor Protection and Control

The RX2E soft starter has significantly improved our pump motor reliability. The comprehensive ANSI protection features and emergency bypass capability give us confidence in continuous operations. The MX2 control technology makes programming and monitoring incredibly straightforward.

MJ

Michael Johnson

Plant Manager, AquaTech Industries

Outstanding Technical Support and Reliability

We've been using the RX2E for our three-phase motor applications and couldn't be happier. The door-mounted LCD keypad makes operation simple for our technicians, and the NEMA 12 enclosure handles our dusty environment perfectly. ValuAdd's technical expertise made the selection process seamless.

SC

Sarah Chen

Electrical Engineer, Phoenix Manufacturing

Perfect Integration with Existing Systems

The Modbus capability on the RX2E allowed us to integrate seamlessly with our existing SCADA system. The adjustable voltage control deceleration has reduced mechanical stress on our equipment significantly. This soft starter exceeded our expectations for both performance and durability.

DR

David Rodriguez

Automation Specialist, Industrial Solutions Inc

Reliable Performance Under Harsh Conditions

Our facility operates in challenging environmental conditions, and the RX2E with NEMA 3R enclosure has performed flawlessly. The mechanical jam protection and shorted SCR detection features have prevented costly downtime. The investment has paid for itself through improved reliability.

LT

Lisa Thompson

Maintenance Supervisor, Metro Water Treatment

Easy Installation and Configuration

The RX2E came pre-configured with all the essential components including circuit breaker and bypass contactor. Installation was straightforward, and the door-mounted controls make daily operation simple for our staff. ValuAdd provided excellent pre-sales technical support throughout the selection process.

KW

Kevin Wilson

Project Engineer, Advanced Manufacturing Co

Cost-Effective Motor Protection Solution

The comprehensive motor protection features of the RX2E have significantly reduced our maintenance costs and unplanned downtime. The adjustable ramp profiles allow us to optimize starting characteristics for different motor loads. This has been one of our best equipment investments.

AM

Amanda Martinez

Operations Manager, Precision Pumping Systems
