Trusted by Hundreds of Companies Globally

Technical Specifications at a Glance

Comprehensive specifications and sizing options for self-extinguishing cable ties designed for fire safety applications.

PARAMETER
SPECIFICATION
Material
Self-extinguish polyamide V0
Color
White
Packaging
100 pieces per package
Size Range
2.5x98mm to 7.5x365mm
Tensile Strength
80N to 540N
Fire Rating
V0 self-extinguishing
Gas Emission
Extremely low toxic gas emission
Halogen Content
Halogen and phosphorus free
Standard Compliance
UNI EN 45545-2:2020
Country of Origin
๐Ÿ‡ฎ๐Ÿ‡น Italy
Request a Quote

Engineered for Fire Safety Excellence

Advanced polyamide construction delivers superior performance in critical fire safety applications across industrial environments.

Superior Fire Protection

V0 rated self-extinguishing polyamide construction provides exceptional fire resistance, automatically stopping flame propagation to protect critical electrical systems and infrastructure.

Low Toxic Emissions

Engineered to minimize toxic gas emissions during fire situations, ensuring safer evacuation conditions and reduced environmental impact in critical applications.

Halogen & Phosphorus Free

Clean formulation eliminates harmful halogen and phosphorus compounds, meeting strict environmental and safety standards for sensitive applications.

Railway Certified

Compliant with UNI EN 45545-2:2020 standards for railway applications, ensuring reliable performance in demanding transportation environments.

Multiple Size Options

Available in six different sizes from 2.5x98mm to 7.5x365mm with tensile strengths ranging from 80N to 540N for versatile applications.

Multiple Certifications

TRUECE certified and DNV GL marked for marine applications, ensuring compliance with international safety standards across industries.

Frequently Asked Questions

What makes these cable ties self-extinguishing and fire safe?
These cable ties are manufactured from V0 rated polyamide material that automatically stops burning when the flame source is removed, preventing fire spread while producing minimal toxic emissions.
Which industries and applications are these cable ties suitable for?
Ideal for railway and naval electrical systems, underground subway and tunnel installations, and indoor facilities with high fire risk like hospitals, schools, theaters, and cinemas.
What certifications and standards do these cable ties meet?
The cable ties are TRUECE certified, DNV GL marked for marine applications, Halogen Free certified, and comply with UNI EN 45545-2:2020 railway fire safety standards.
What size options and tensile strengths are available?
Available in six sizes: 2.5x98mm (80N), 3.6x140mm (180N), 3.6x200mm (180N), 4.5x200mm (220N), 4.8x290mm (220N), and 7.5x365mm (540N) tensile strength.
Are technical documentation and support materials available?
Yes, comprehensive technical datasheets are available in multiple languages including English, Italian, and French, along with declaration of conformity documents and printable product information.

Critical Applications Across High-Risk Environments

Specialized fire-safe cable management solutions designed for environments where safety cannot be compromised.

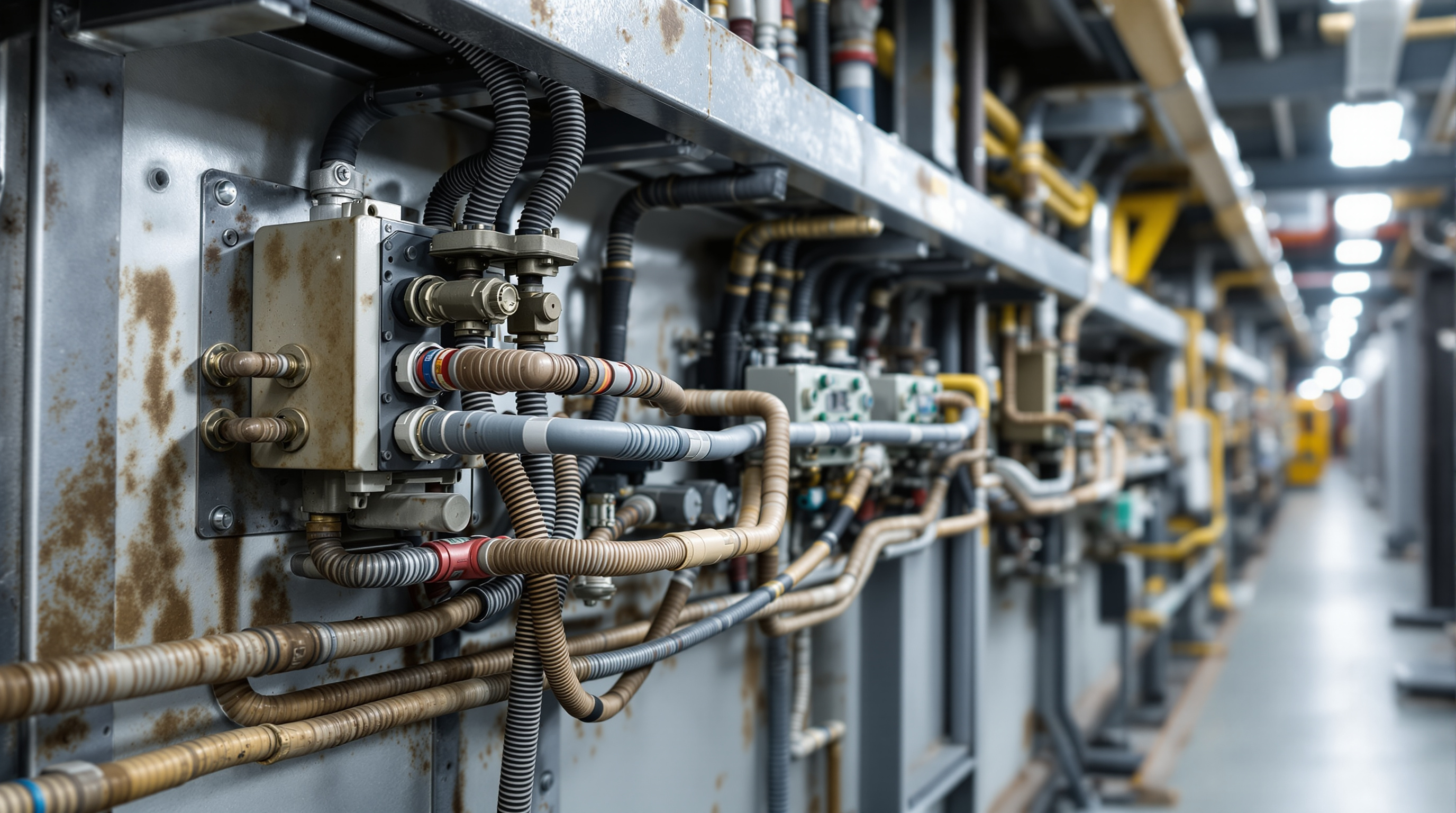

Railway and naval electrical systems wiring infrastructure#1.9

Railway & Naval Systems

Critical electrical wiring systems in railway and naval environments requiring superior fire protection and low toxic emission compliance.

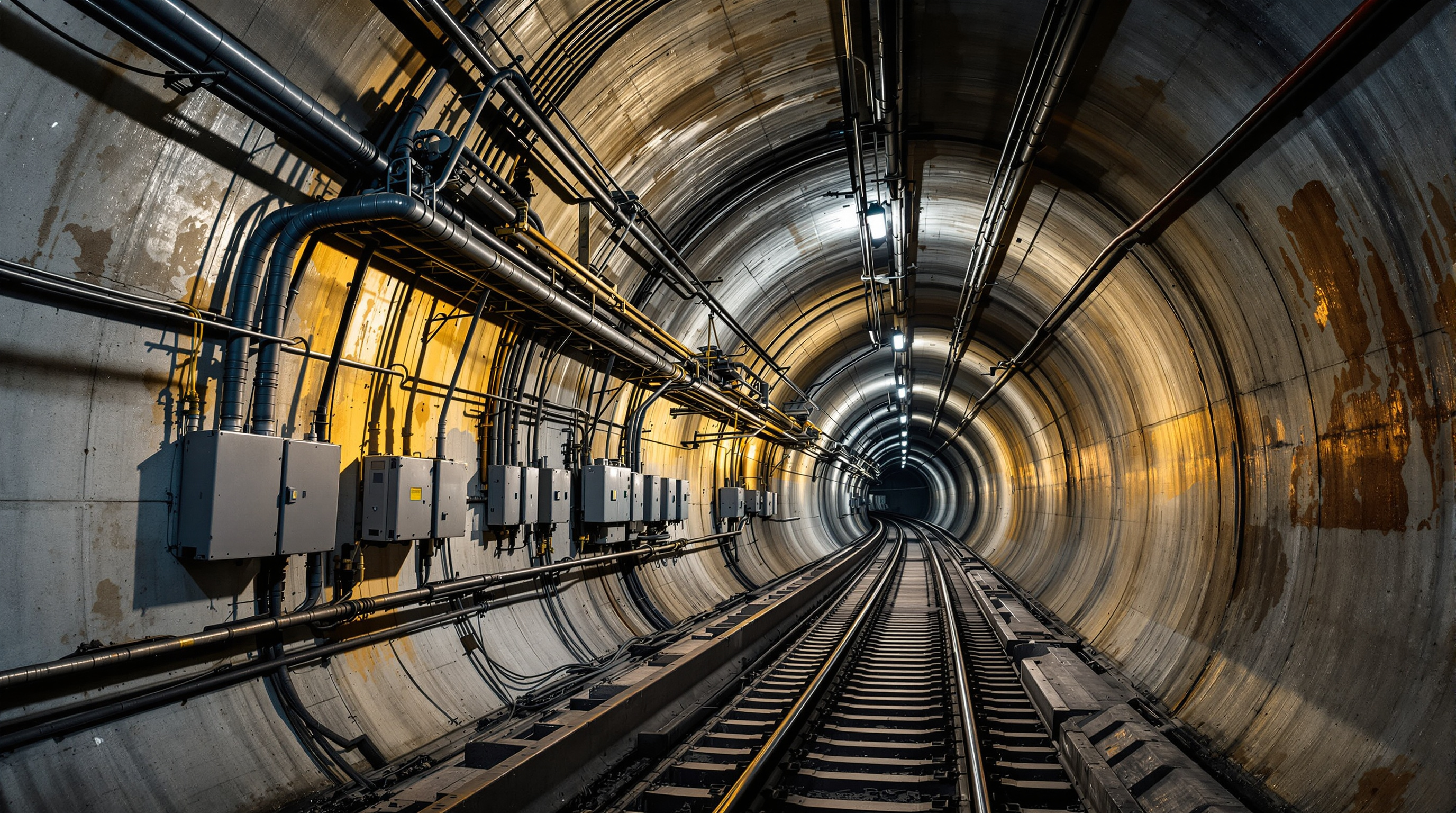

Underground subway tunnel electrical systems installation#1.9

Underground Transit

Underground subway systems and tunnel installations where fire safety and emergency evacuation protocols are paramount.

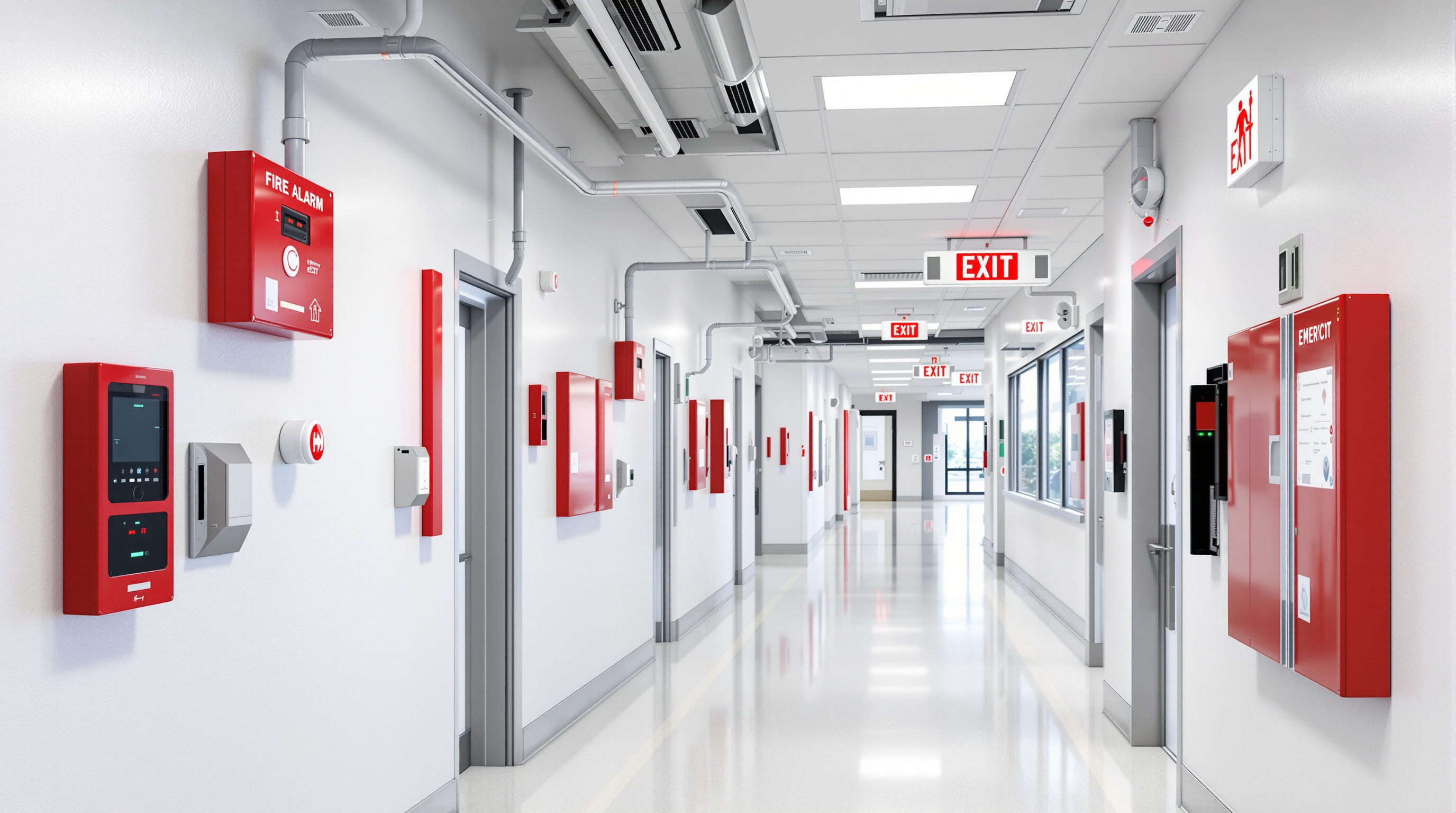

Hospital school cinema theater electrical fire safety systems#1.9

Public Buildings

Indoor environments with high fire risk including hospitals, schools, theaters, and cinemas requiring enhanced safety measures.

What Our Safety Engineers Say

Trusted by safety professionals across critical infrastructure projects worldwide.

Exceptional fire safety performance

These self-extinguishing cable ties exceeded our expectations in our metro project. The V0 rating and low toxicity made them perfect for our underground installations where passenger safety is critical.

Perfect for marine applications

The DNV GL marking and halogen-free construction make these ideal for our naval vessels. They provide reliable fire protection without compromising on performance in harsh marine environments.

Railway standard compliance achieved

UNI EN 45545-2:2020 compliance was essential for our high-speed rail project. These cable ties delivered the required fire safety performance while maintaining excellent mechanical strength.

Hospital grade fire safety

In our medical facility upgrade, these cable ties provided the peace of mind we needed. The low toxic emission feature is crucial for patient safety in emergency situations.

Excellent technical support

The multilingual documentation and technical support made specification and installation straightforward. These are now our go-to cable ties for all fire-critical applications.

Outstanding durability and strength

The range of tensile strengths from 80N to 540N allows us to match the exact requirements for each application. Quality is consistently excellent across all sizes.

Complete Cable Management Solutions

Explore our comprehensive range of specialized cable management accessories designed for demanding industrial applications.

ARROWHEAD CRADLE ELEMATIC

Polyamide 6.6 fixing cradle designed for ties up to 7.8mm width, providing secure cable and pipe mounting on various panels with natural color finish and 540N tensile strength.

WALL PLUG BASE 5458 ELEMATIC

Polyamide anchoring base for cable ties, compatible with any cable tie up to 9mm wide, designed for secure mounting and fastening applications on different building materials.

IDENTIFICATION CABLE TIE EXTERNAL PLATE ELEMATIC

Polyamide 6.6 cable ties with identification tags positioned inside or outside cable bundles, featuring transversal, longitudinal or external identification plates for easy marking and cable identification.
