Outstanding reliability and performance
The Cimon HMI has been running flawlessly in our production line for over two years. The display clarity and touch responsiveness are exceptional even in our dusty manufacturing environment.
UL Certified
CE Certified

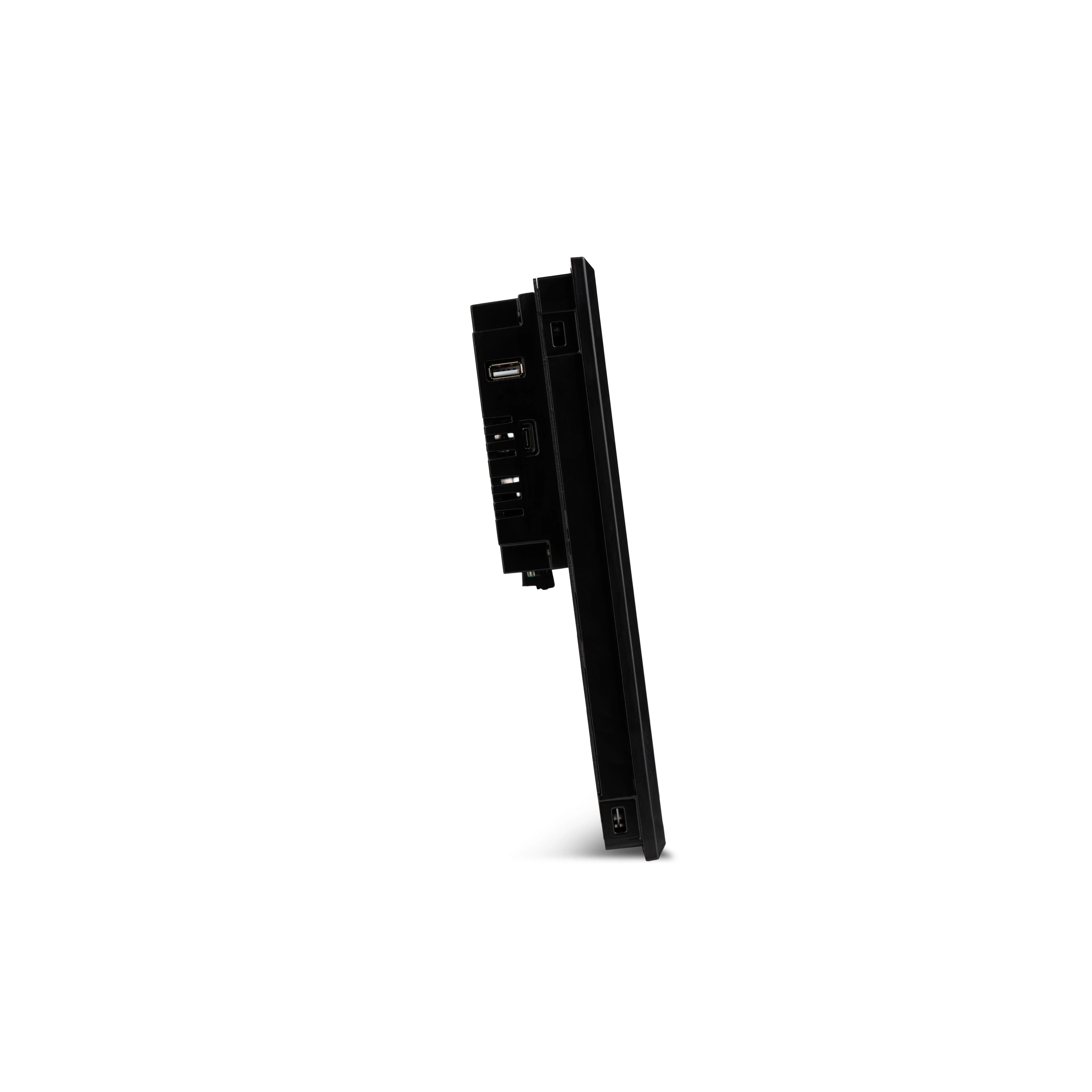

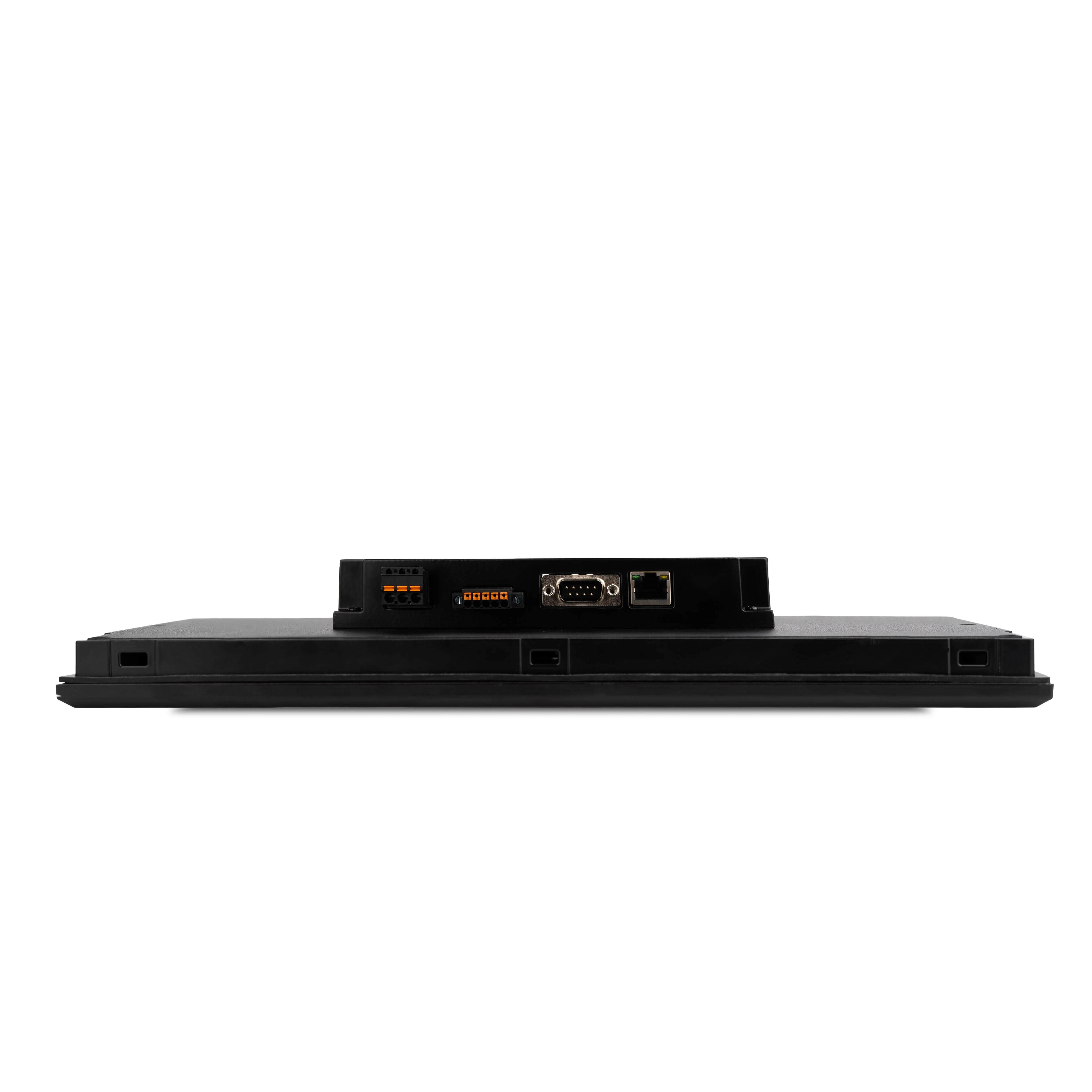

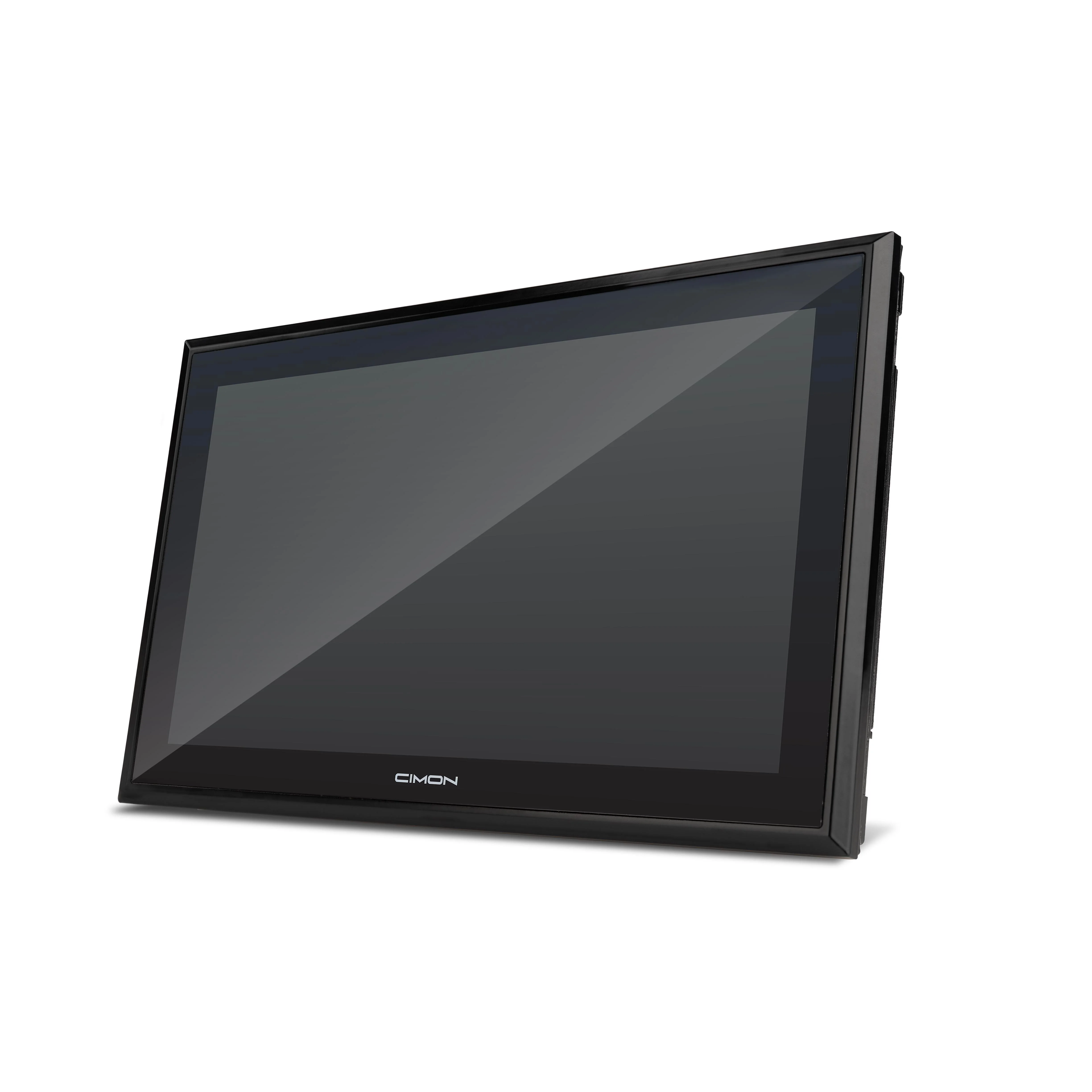

CM-eXT2-15W-R-DE - 15.6 inch, eXT2 Xpanel, Base HMI
15.6" Full HD Display
IP66 Protection Rating
Multiple Connectivity Options
Price
Price Available on Request
Expert Technical Support
Fast Delivery Available
Certifications: UL, CE, FCC
Trusted by Hundreds of Companies Globally
Technical Specifications at a Glance
Comprehensive technical details for the CM-eXT2-15W-R-DE HMI panel including display, connectivity, and environmental specifications.
Parameter
Specification
Display Size
15.6 inch Wide TFT Color LCD
Resolution
1920 x 1080 WXGA (16:9)
Touch Technology
5 wire resistive with ±2% accuracy
Memory
2 GB LPDDR4 RAM, 8 GB eMMC Storage
Power Requirements
24 VDC Class 2 rated, 23.5 W consumption
Connectivity
1x Ethernet, 2x Serial ports, 1x USB Type A, 1x USB-C
Operating Temperature
0–65°C
Protection Rating
IP66 Front Protection Class
Dimensions
393.6 x 247.9 x 53.9 mm
Country of Origin
🇰🇷
South Korea
Engineered for Industrial Excellence
Advanced HMI technology designed to deliver reliable performance in demanding industrial environments with superior connectivity and protection.
High-Resolution Display
Experience crystal-clear visuals with 15.6-inch Full HD display featuring 1920x1080 resolution and 450 cd/m² luminance for excellent readability in various lighting conditions.
Industrial Protection
Built with IP66 front protection rating and aluminum enclosure to withstand harsh industrial environments, ensuring long-term reliability and performance.
Versatile Connectivity
Multiple communication options including Ethernet, serial ports (RS-422/485, RS-232C), USB Type A and USB-C for seamless integration with existing systems.
Precision Touch
5-wire resistive touch technology with ±2% accuracy provides reliable and precise input even when wearing gloves or in dusty environments.
Wide Operating Range
Operates reliably in temperatures from 0°C to 65°C, making it suitable for various industrial applications and environmental conditions.
Flexible Orientation
Supports both landscape and portrait display orientations, providing installation flexibility to meet specific application requirements and space constraints.
Frequently Asked Questions
What connectivity options are available on this HMI?
The panel includes 1x Ethernet port (10/100/1000), 2x serial ports (RS-422/485 and RS-232C), 1x USB Type A host port, and 1x USB-C tool port for comprehensive connectivity options.
Can this HMI be mounted in different orientations?
Yes, the display supports both landscape and portrait orientations, providing installation flexibility to meet your specific application requirements and available space.
What certifications does this HMI have?
The HMI is certified to UL61010-1/UL61010-2-201, CE EMC Directive 2014/30/EU, FCC Part 2/15/18, KC registration, and has IP66 NEMA Type 4X protection rating.
What is the expected lifespan of the display backlight?
The LED backlight is designed for 50,000 hours of operation, providing long-term reliability and minimal maintenance requirements for continuous industrial use.
